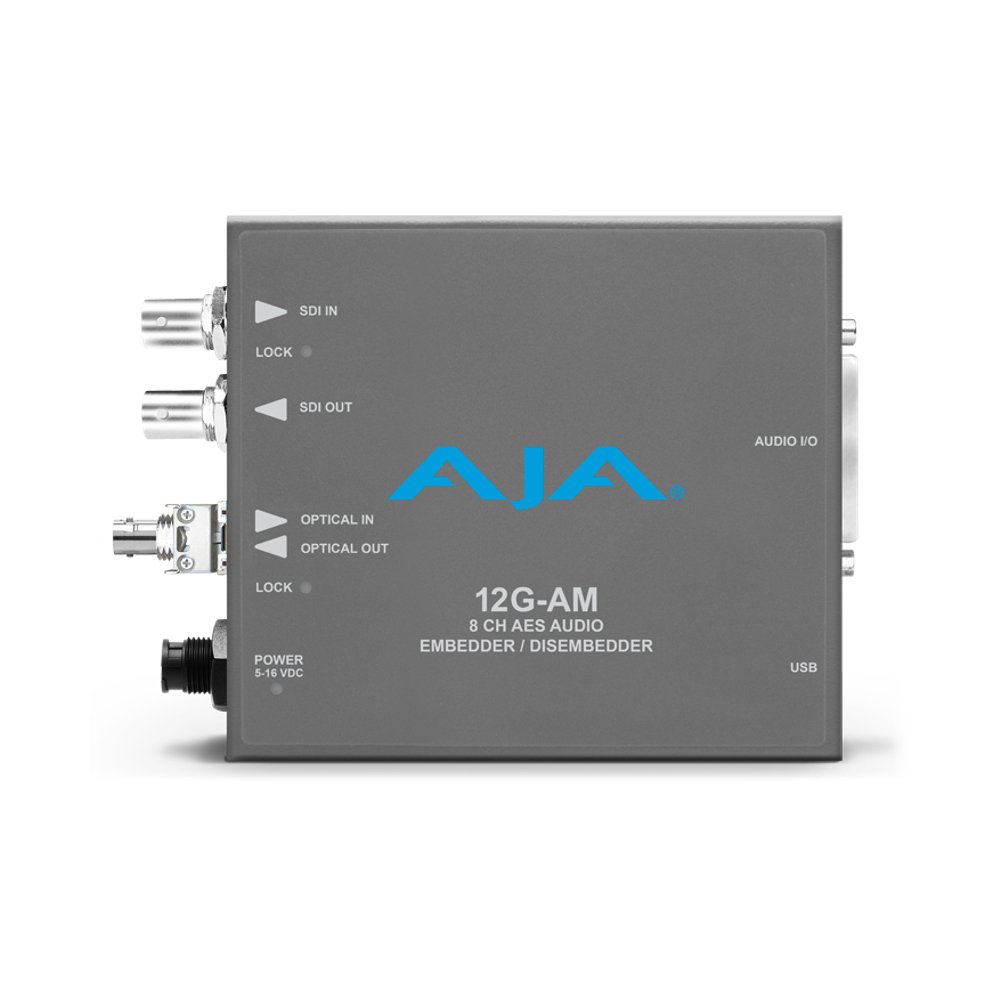

AJA 12G-AM-T-ST Mini Converter

£2,202.00 £1,835.00

Order Now - Usually delivered in 2-4 weeks

SKU: AJA-12G-AM-T-ST Categories: , , Tag:

The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.

AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable.

The 12G-AM automatically detects and configures the input video standard.

12G-AM-T-ST

12G-SDI 8-Channel AES Embedder/Disembedder with ST Fiber Tx SFP

Supplied Breakout Cable

The included breakout cable (12G-AM CBL DB25-8XLR) supports 2-channels of AES per XLR connector for 8-Channels of input and 8-Channels of output simultaneously.

An optional BNC breakout cable for AES (12G-AM CBL DB25-8BNC) is available separately.

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Additional information

BRAND

AJA

MPN

AJA-12G-AM-T-ST

Specification

.

Features

  • 12G-SDI Input and Output up to 4K/UltraHD
  • 8-channel balanced AES audio Embedder/Disembedder
  • Ships with a ST Fiber single channel SFP Transmitter for extending 4K/UltraHD signals over long distances
  • AES audio Disembedding is always functional with four AES outputs
  • AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
  • Selectable AES audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • 5-16 VDC Power
  • Five year warranty
