AJA FiDO-4T-MM Mini Converter

£3,120.00 £2,600.00

Order Now - Usually delivered in 2-4 weeks

SKU: AJA-FIDO-4T-MM Categories: , , Tag:

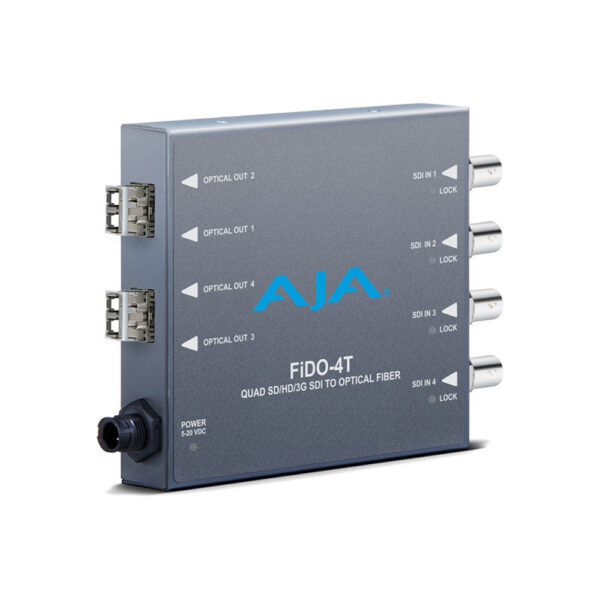

AJA FiDO-4T-MM

FiDO-4T-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic cables – useful for eliminating ground loop problems.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Additional information

BRAND

AJA

MPN

AJA-FIDO-4T-MM

Specification

Video Formats

  • 150 Mbps – 3 Gbps, format agnostic

Video Input Digital

  • 4-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

Video Output Digital

  • 4-Channel independent Multi-Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 850 nm
  • Optical Power: -7dBm (min), -2dBm (max)
  • Extinction Ratio: 7.5dB (Typ)

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • All other rates are passed through and not reclocked

Size (w x d x h)

  • 4.6″ x 4.02″ x 0.85″ (117 x 102.11 x 21.6mm)

Weight

  • 0.8 lb (0.4 kg)

Power

  • 5 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Features

  • 4-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
  • 4 simplex or 2 duplex output connections (LC connector)
  • 4 independent channels of 3G/HD/SD-SDI input
  • 4K/UltraHD-SDI over 4 fiber links
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty
