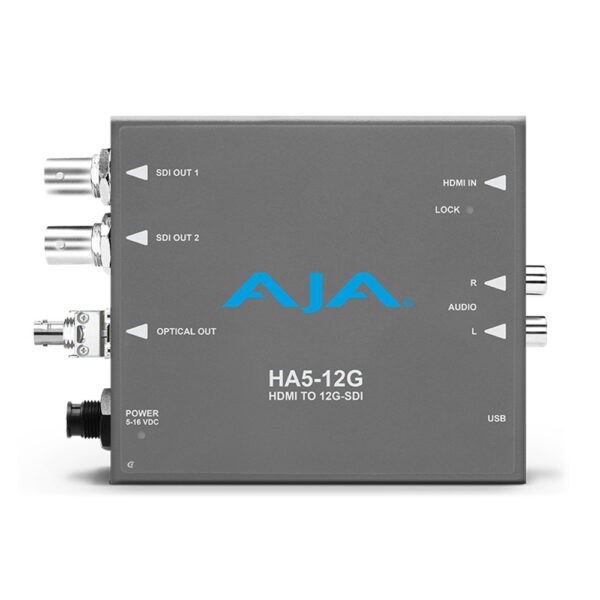

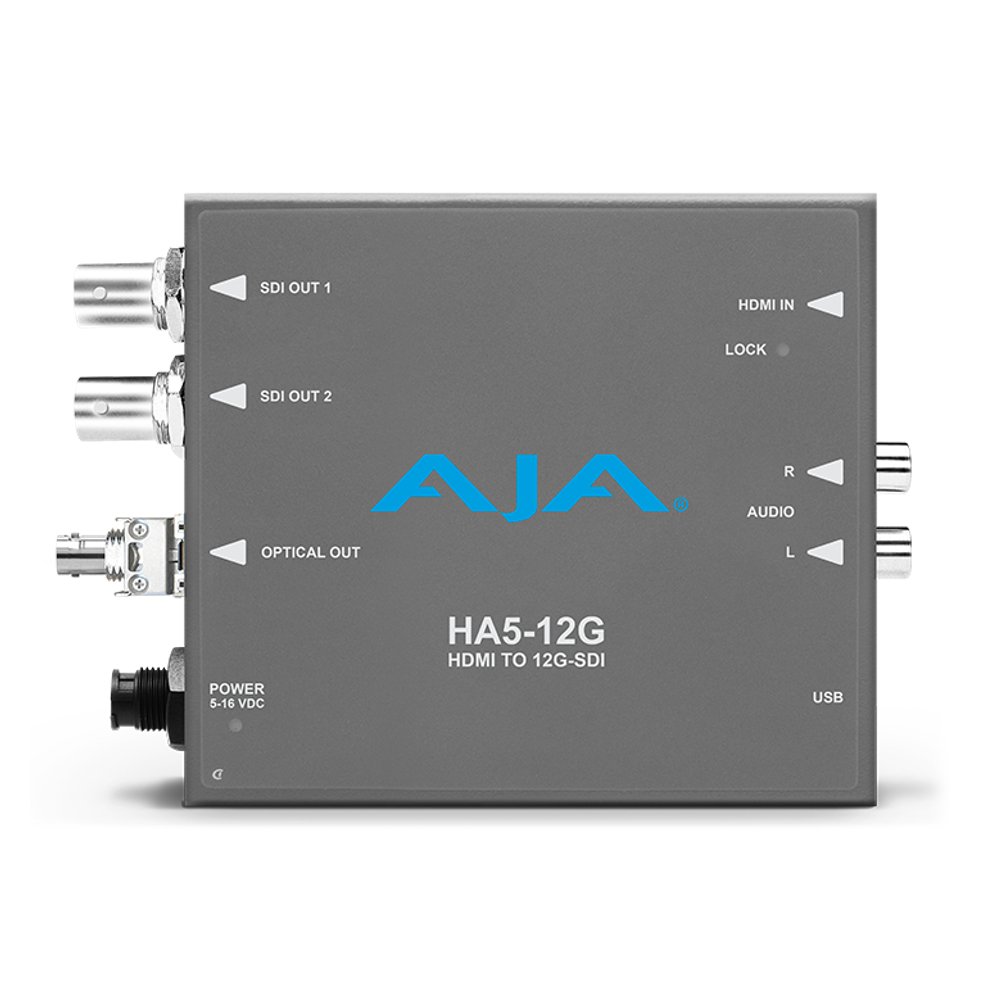

AJA HA5-12G-T-ST HDMI to SDI Transmitter Micro Converter

£1,728.00 £1,440.00

Order Now - Usually delivered in 2-4 weeks

SKU: AJA-HA5-12G-T-ST Categories: , , Tag:

AJA HA5-12G-T-ST HDMI to SDI Transmitter

The HA5-12G-2T dual channel transmitter offers two 12G-SDI coaxial outputs and two 12G-SDI over Fibre outputs to simultaneously enable HDMI 4K source extension to multiple locations without a distribution amplifier.

HDR

HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colours, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colours to be communicated to your audience.

HA5-12G  provides support for analysing HDR infoframe data coming in over HDMI when used with AJA Mini-Config software.

4K and Ultra HD

Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. HA5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.

HA5-12G also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

Full HDMI Support

The equalised input on HA5- 12G is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.

12G-SDI Support

The 12G-SDI outputs on HA5-12G allows extremely high quality signal representation for use with large raster and deep colour workflows where image quality is critical.

Pristine Image Quality

A 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green), HD (red) or 4K/UltraHD (orange) for fast and easy signal identification.

Additional information

BRAND

AJA

MPN

AJA-HA5-12G-T-ST

Specification

.

Features

  • Convert HDMI 2.0b up to 4K 60p to 12G-SDI with a second mirrored output
  • Includes a single channel Fiber 12G ST transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • HA5-12G-T-ST ships with FiberST-1T-12G SFP installed
  • Support for up to 60p input at 4:4:4/4:2:2/4:2:0
  • EDID Emulation
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC) immersive sound
  • Configure via USB port and supplied AJA Mini-Config software on PC/Mac
  • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty
