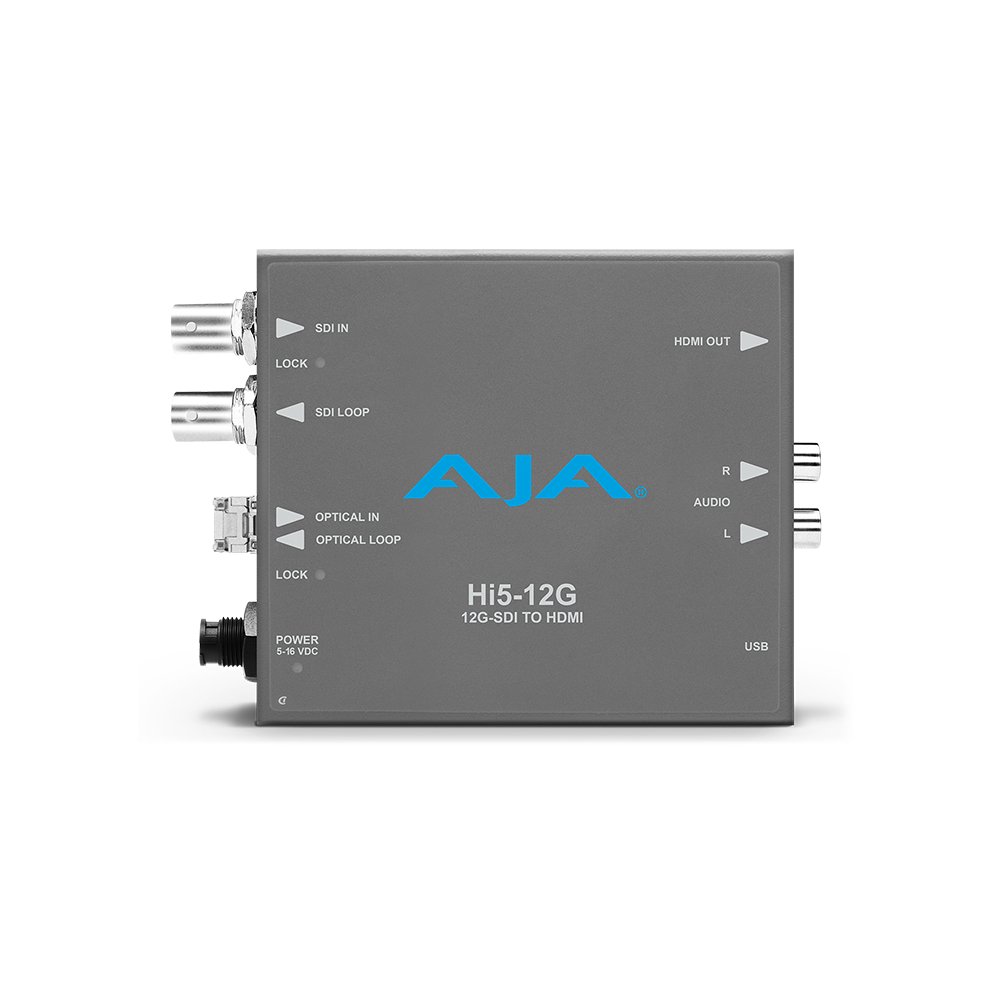

AJA HI5-12G-TR 12G-SDI to HDMI Transceiver

AJA HI5-12G-TR 12G-SDI to HDMI Transceiver (AJA-HI5-12G-TR-R0) converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, with single cable simplicity. Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, for cost effective monitoring in professional workflows. The Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G. It features a 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines. Fibre SFP equipped Hi5-12G models are available (please see separate listings below) including the Hi5-12G-R receiver, which extends HDMI 4K signals over long distances from either an SDI or a Fibre connected source, and the Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fibre source signal to an HDMI destination with pass on of the source through SDI or Fibre to a secondary destination.

HDR

HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more dynamic look and allows for natural true to life colors to be communicated to your audience. Hi5-12G provides this support for your 4K/UltraHD/HD HDR pipelines to HDMI compatible displays by generating HDR metadata in accordance with HDMI v2.0b/CTA-861-G.  Hi5-12G also provides support for Hybrid Log Gamma (HLG) HDR displays over HDMI.

4K and Ultra HD

Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. Hi5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa. Hi5-12G also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60 fps can be fed into Hi5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

12G-SDI Support

The 12G-SDI input on Hi5-12G allows extremely high quality signal representation through to the HDMI output for use with large raster and deep color workflows where image quality is critical.
