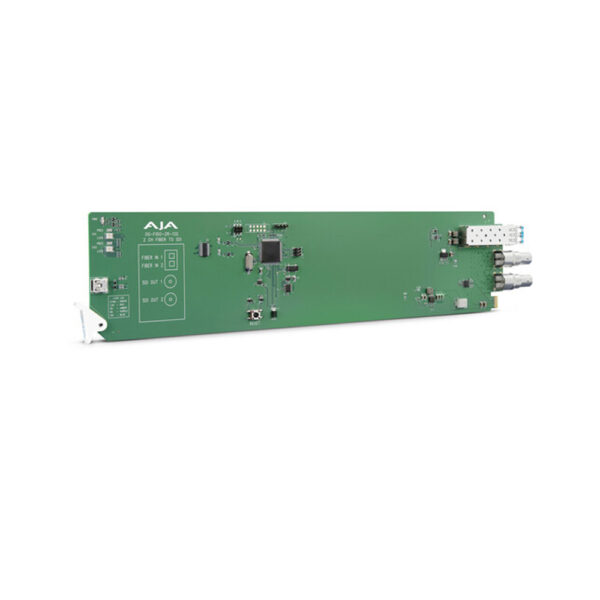

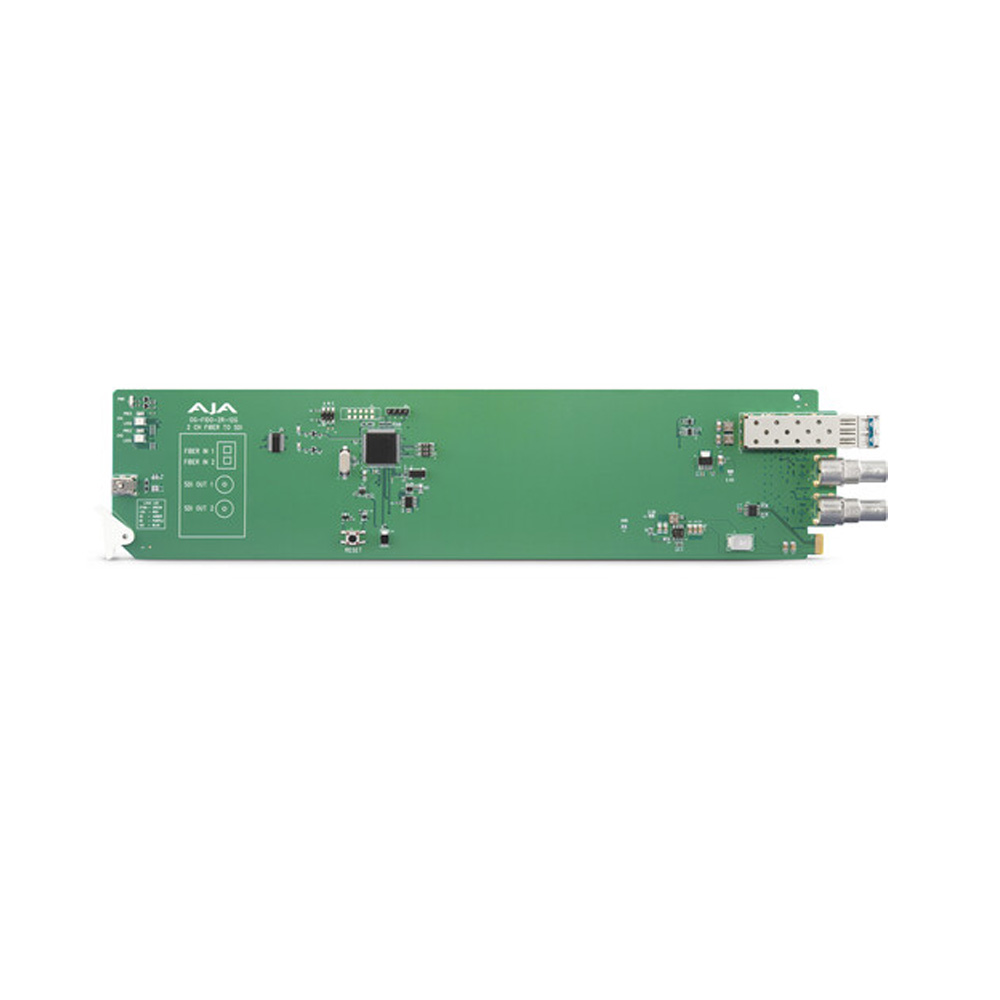

AJA OG-FiDO-2R-12G openGear 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver
£2,088.00 £1,740.00
Overview
The OG-FiDO-2R-12G is a state of the art, openGear compatible, 2-channel Fiber to 12G-SDI converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two fiber inputs are completely independent allowing different 12G-SDI rates to be carried on each channel.
AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.
Features
- Video Formats: 270 Mbps – 12 Gbps, format agnostic
- Inputs: 2x Independent Single-Mode LC Fiber Connectors
- Outputs: 2x Independent 12G-SDI, BNC connectors
- Support for HDR – High Dynamic Range video
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
- Nominal Wavelength; Rx :1260-1620 nm
- Hot-swappable
- Remote Ethernet Monitor through Ross DashBoard software
- Appropriate Fiber SFP included
- Rear I/O card included
- Two slots required for each card
- Power: 3 watts Max
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
Connectivity
Both Fiber and 12G-SDI inputs are reclocked with best in class input jitter tolerance. 12G-SDI input and output support, which includes 6G/3G/HD/SD-SDI. Both signal paths are independent and can be different rates. Supports single mode fiber cable.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.
Additional information
| BRAND | AJA |
|---|---|
| MPN | AJA-OG-FIDO-2T-12G |
Specification
Video Formats
- 270Mbps – 12 Gbps, format agnostic
Video Input Digital
- 2-channel independent Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: 1260 nm (min), 1620 nm (max)
- Optical Sensitivity:
- -9 dBm (min 12 Gbps)
- -10 dBm (min 270 Mbps, 1.5 Gbps, 3 Gbps, and 6Gbps)
- Overload Power: -2 dBm (min)
Video Output Digital
- 2-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
- All other rates are passed through and not reclocked
User Interface
- openGear DashBoard network control software via Windows, macOS or Linux
Size
- openGear standard form factor, front slot and rear card. Two slots required for each card
Weight
- 0.5 lb (0.3 kg)
Power
- openGear frame compatible, 3 watts max per card
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
