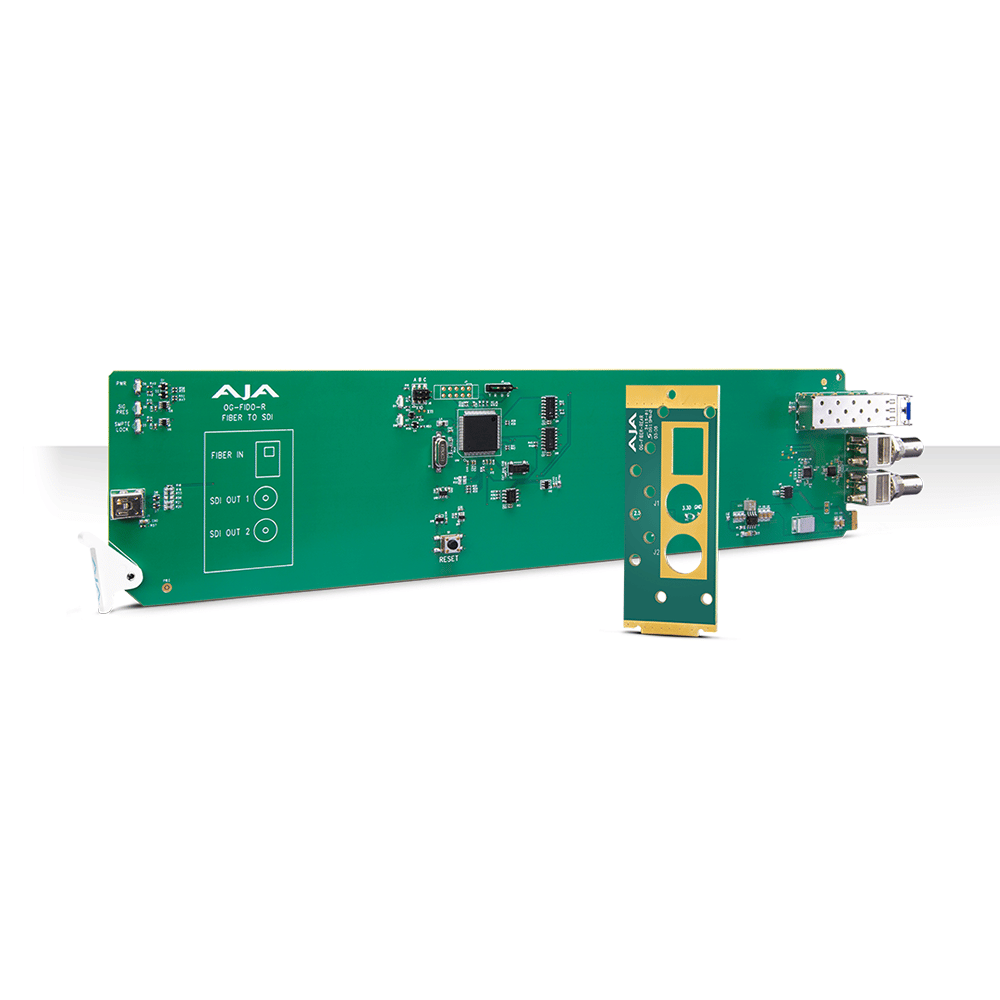

AJA OG-FIDO-R-MM 1-Channel 3G-SDI Receiver

£1,092.00 £910.00

Order Now - Usually delivered in 2-4 weeks

SKU: AJA-OG-FIDO-R-MM Categories: , Tag:

The OG-FiDO-R-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fibre conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fibre optic cables – useful for eliminating ground loop problems. Designed for use in high density openGear 2RU frames including AJAs OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring, and control options over a PC or local network.

Connectivity

The Fibre input is reclocked with best-in-class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Supports Multi-Mode fibre cable.

Open Gear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rack frame products.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Additional information

BRAND

AJA

MPN

AJA-OG-FIDO-R-MM

Specification

.
