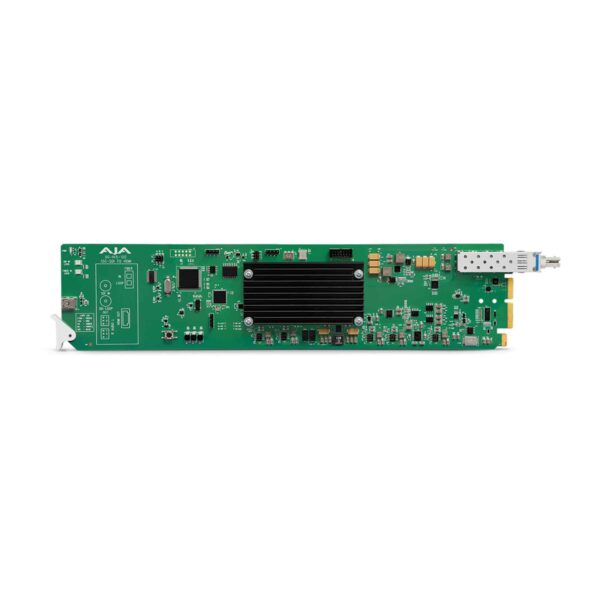

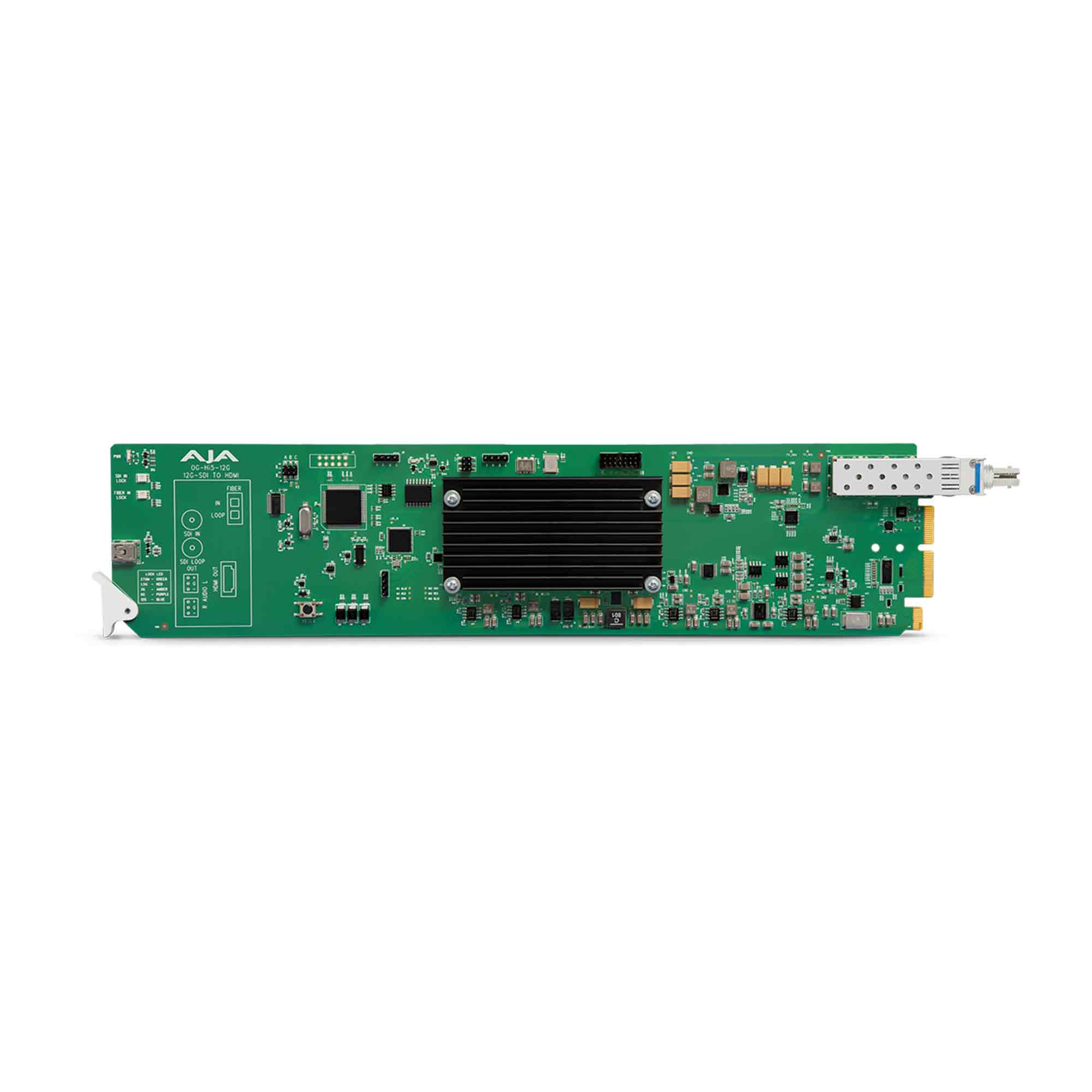

AJA OG-Hi5-12G-R-ST OpenGear 4K/UltraHD 12G-SDI to HDMI 2.0 Converter with ST Receiver

£1,650.00 £1,375.00

Order Now - Usually delivered in 1-2 weeks

SKU: AJA-OG-Hi5-12G-R-ST Categories: ,

The OG-Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, in the popular openGear form factor. The OG-Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to devices with HDMI 2.0 inputs. The OG-Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.

It features a 12G-SDI single link input with a reclocked SDI loop out for SDI monitoring or pass on for SDI pipelines.

Fiber SFP-equipped OG-Hi5-12G models are available, including the OG-Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the OG-Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in OG-Hi5-12G-R and OG-Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).

Features

  • Convert 12G-SDI to HDMI 2.0 at up to 4K 60p
  • Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0 output
  • Supports 12-bit workflows
  • HDR signaling metadata pass-through and optional override
  • Embedded audio support 8-channel 24-bit
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • 12G-SDI loop out
  • Fiber SFP models available
  • Monitor and control via Ross DashBoard software
  • 13 watts max per card
  • Five year warranty

DashBoard Software
Ross DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

OG-Hi5-12G-R-ST

12G-SDI to HDMI 2.0 Conversion with ST Fiber Receiver

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Supports 12-bit workflows
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to displays with HDMI 2.0 inputs
  • 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
  • Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
  • Monitor and control via Ross DashBoard software
  • Five year warranty

Additional information

MPN

OG-Hi5-12G-R-ST
BRAND

AJA

Specification

Video Formats

  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p
  • (SD) 720x576i
  • (SD) 720x480i



Note: Raster and Frame Rate Dependent, please see OG-Hi5-12G Video Formats in Documents and Manual

Video Input Digital

  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, 12-bit
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • 1x 12 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B DL)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p* 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*1280x720p is Level A Only

Input Signal Selection – OG-Hi5-12G-R and OG-Hi5-12G-TR Only

  •  1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

Input Signal Selection – OG-Hi5-12G-R-ST Only

  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

Video Output Digital

  • 1x HDMI Type A connector*, HDMI v2.0b
  • HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
  • YCbCr 4:2:2/4:4:4/4:2:0
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 720x576i 50
  • (SD) 720x480i 59.94



*If a connected monitor doesn’t support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio)

Video Output Digital – Additional for OG-Hi5-12G-TR Only

  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 5.4 dB (min)

Audio Pass-Through Formats

  • PCM
  • Dolby Digital (AC-3)
  • Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)

Audio Input Digital

  • SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel

Audio Output Digital

  • HDMI embedded audio, 24-bit, 8-channel

Audio Output Analog

  • 2x 3-pin terminal block connector, 2-channel balanced analog audio +24dBu (nominal)

User Interface

  • openGear DashBoard network control software via Windows, macOS, or Linux

Size (w x d x h)

  • openGear standard form factor, front slot, and rear card
  • Two slots required for each card

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 13 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
