Amaran F22c RGBWW 2×2 LED Flex Mat – UK

£884.40 £737.00

Order Now - Usually delivered in 2-4 weeks

This item: Amaran F22c RGBWW 2x2 LED Flex Mat - UK

Order Now - Usually delivered in 2-4 weeks

£884.40 £737.00
£884.40 £737.00
£35.00£46.80 £39.00
SKU: 6971842183333 Categories: , , Tag:

Current stock will be supplied with the upgraded bracket under Amaran’s bracket replacement scheme.

Amaran F22c RGBWW 2×2 LED Flex Mat

Amaran F22c RGBWW 2×2 LED Flex Mat –  UK Version (6971842183333). The F22c is a high-output, full-colour flexible LED mat that offers superb performance and versatility for a variety of users — from filmmakers to videographers, content creators, and even photographers.

With 200W of output power, this ultra-lightweight 2’x2′ fixture is capable of outputting 6,420+ lux at 1 meter (5600K), surpassing anything else in its class. Install the included foldable softbox and instantly turn this flexible mat into an ultra-thin soft light that will make any subject shine with stellar CRI and TLCI scores of 95+ and 97+. And with stepless dimming from 0 to 100%, you can achieve the perfect light level every time. The F22c features RGBWW LEDs for complete color control, as well as tunable CCT from 2,500K to 7,500K, providing endless possibilities for creative lighting decisions through 360° HSI control, 46 color gel presets, or even up to 15 unique lighting effects. Additionally, with the F22c’s Sidus Link app control, you can be sure to always dial in your lighting design. Building the F22c is quick and convenient with the compact, folding X-Frame that stretches out the F22c into a rigid panel. This frame can be attached directly to a C-Stand grip head using the Straight Baby Pin adapter or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount, providing an ideal option for all types of filmmakers and creators.

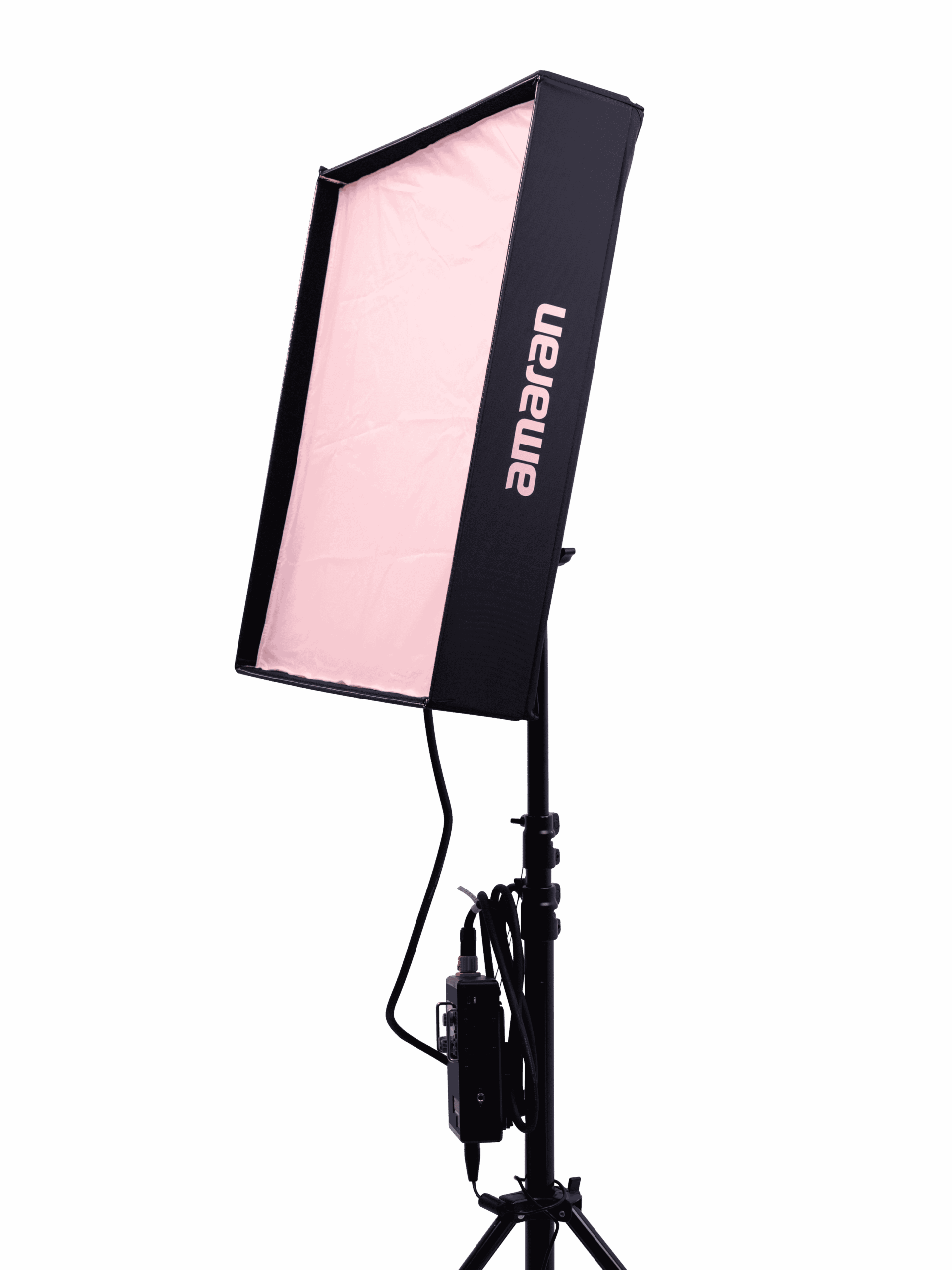

Attach the included softbox, one of two strengths of diffusion, and the fabric grid using the integrated hook-and-loop fabric to further finesse your lighting design and add a beautifully controlled soft light to your scene. You can also swap out the softbox for an amaran F22 lantern modifier*, allowing you to replicate a volumetric lantern or pancake light with an ultra-light full-color fixture. With an integrated 3-meter long head cable and the included 3-meter long extension, the F22c can reach out 6 meters away from its compact control box. Engineered from the ground up for the perfect balance of size, weight, and intensity, the F22c’s LED and heat dissipation design results in a heavy-weight punch from a flexible feather-weight design. Each control box is also outfitted with a multi voltage battery plate so you can use a capable 14.4V battery to achieve half power, or max out the intensity with full power when using compatible 26V or 28.8V batteries. You can also achieve full output when using the AC power supply, each of which comes with a specially designed battery plate bracket for a seamless user experience. And when combined with the F22c’s soft carrying case, the F22c becomes a portable light that you can take anywhere for any production.

The Sidus Link app unlocks tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX, all from your phone or tablet. And unique to the newest fixtures in the amaran product line, you can control the F22c using DMX with a special USB-C to 5-Pin DMX512 In & Out Adapter Cable, granting professional-level control to your new favorite flex light.

Comes With

  • 1x Amaran F22c RGBWW 2×2 LED Flexible Mat
  • 1x Amaran F22c Control Box
  • 1x Amaran F22c Head Cable Extension (3m)
  • 1x Amaran F22 Support Bracket
  • 1x Amaran Flexible Light Right Angle Baby Pin Adapter
  • 1x Amaran Flexible Light Straight Baby Pin Adapter
  • 1x Tilting Stand Mount
  • 1x Amaran F22 Softbox Frame
  • 1x Amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
  • 1x Amaran F22 Diffusion Cloth 2 (2.5 Stop)
  • 1x Amaran F22 Light Control Grid
  • 1x AC Power Supply
  • 1x AC Power Cable
  • 1x Amaran Flexible Light Carrying Case

Additional information

BRAND

AMARAN

MPN

6971842183333

Specification

CCT 2500K ~ 7500K
CRI ≥95
TLCI ≥97
CQS ≥96
TM-30 RF (Average) 94
TM-30 RG (Average) 102
SSI (Tungsten) ≥83
SSI (D56) ≥74
Color Chipset Red, Green, Blue, Warm White,
Cool White

Beam Angle (Half-
Peak Angle) Control Grid 45°

Max Power Output ≤200W
Max Power Consumption ≤240W
Operating Current 5A

Operating
Voltage

AC Power Supply 48V DC
3-Pin XLR DC 48V/5A DC

V/Gold-
Mount

Battery
Half
Output

12 ~ 16.8V (14.4V/10A)
22V ~ 33.6V (26V/6A, 28.8V/5A)
Full
Output 22V ~ 33.6V (26V/11A, 28.8V/10A)
DC Input 48V 3-Pin XLR
AC Power Cable IEC C13 AC Power Cable (4m)
Operating Temperature -10°C ~ 40°C / -4°F ~ 113°F
Control Methods

On-board, Sidus Link App, DMX
via USB-C to 5-Pin DMX512 In &
Out Adapter Cable
Connectivity Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range ≥80m / 262.5ft
Firmware Upgradeable Sidus Link OTA
Display Type OLED

Features

• 200W Output 2’x2’ RGBWW Flexible LED Mat
• 240W Max Power Draw
• 6,420+ lux @ 1 meter (5600K)
• HSI Full Color Control
• Tunable CCT from 2,500K to 7,500K
• Tunable Green-Magenta Adjustment (Plus/Minus Green)
• CRI: 95+, TLCI: 97+, CQS: 96+, SSI (Tungsten): 83+, SSI (D56): 74+
• Stepless Dimming from 0 to 100%
• Sidus Link App Control
• 3 Meter Head Cable Extension
• DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter (Sold Separately)
• 46 Color Gel Presets
• 4 User-Configurable Preset Buttons
• 15 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe,
Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, etc.
• Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment
• Easy Mounting AC Power Supply with Included Battery Bracket
• Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
• Soft Carrying Case Included
• Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F
• Lantern Accessory with Light Control Skirt (Sold Separately)

What's Included

  • 1x Amaran F22c RGBWW 2×2 LED Flexible Mat
  • 1x Amaran F22c Control Box
  • 1x Amaran F22c Head Cable Extension (3m)
  • 1x Amaran F22 Support Bracket
  • 1x Amaran Flexible Light Right Angle Baby Pin Adapter
  • 1x Amaran Flexible Light Straight Baby Pin Adapter
  • 1x Tilting Stand Mount
  • 1x Amaran F22 Softbox Frame
  • 1x Amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
  • 1x Amaran F22 Diffusion Cloth 2 (2.5 Stop)
  • 1x Amaran F22 Light Control Grid
  • 1x AC Power Supply
  • 1x AC Power Cable
  • 1x Amaran Flexible Light Carrying Case

Only logged in customers who have purchased this product may leave a review.

Reviews

There are no reviews yet.
