ARRI ERM-2400 Ext 2.4 GHz RXD-TXD Pro Set LCS KK.0040048

An ERM-2400 LCS set of radio modules basically extends an LCS/LBUS/EXT (CAN bus) cable connection over air. As such, it can connect ARRI and cmotion hand units to cameras and motor controllers and they behave as if they were hard-wired, but with an exceptionally great wireless range (up to 1000 meter / 3280 ft).

Includes:
K2.0037440 2x ERM-2400,LCS, Single Module
K2.0033763 2x ERM-2400 Rubber Duck Antenna

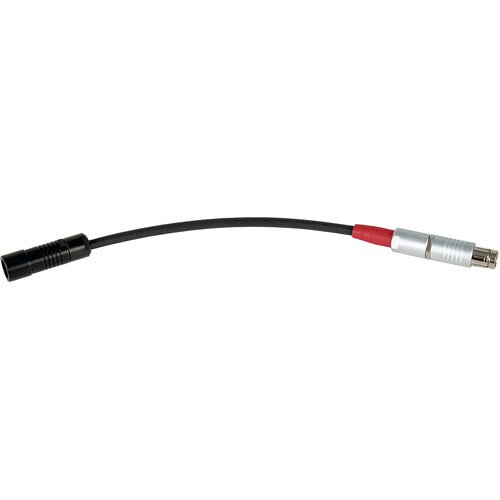

K2.0036900 2x ERM LCS to FS CAN Bus Adapter Cable, 0.2m/0.65ft
K2.0036903 2x ERM LBUS to FS CAN Bus Adapter Cable, 0.2m/0.65ft
K2.0036901 1x ERM EXT. to FS CAN Bus Adapter Cable, 0.2m/0.65ft

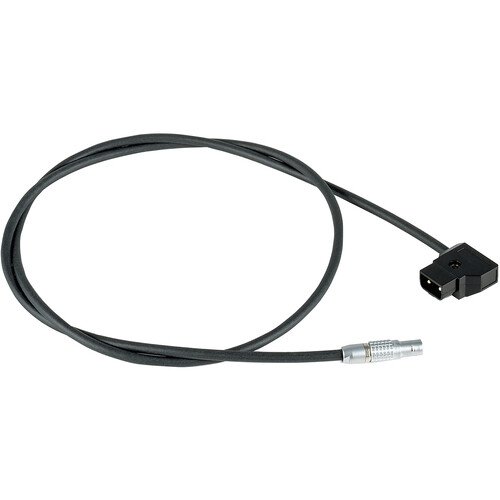

K2.0036902 1x ERM D-Tap Pwr Cable, 0B Lemo 2pin to D-Tap, 1m/3.2ft
K2.0033762 2x SRH FS CAN Bus Cable, 1m/3.2ft

Compatibility:
The ERM-2400 LCS module is compatible with equipment supporting LCS, EXT and
LBUS protocols. A pair of ERM-2400 LCS modules can replace a cabled connection
between two devices, for example:
• WCU-4 or SXU-1 and ALEXA Plus camera (LCS socket)
• WCU-4 or SXU-1 and ALEXA Mini camera (EXT socket)
• WCU-4 or SXU-1 and ALEXA Mini LF camera (EXT socket)
• WCU-4 or SXU-1 and UMC-4 (LCS socket)
• Master Grip or OCU-1 and cforce motor
• cmotion cPRO hand unit and cforce motor
• ARRI Wheels DRW-1 and Digital Encoder Head DEH-1

Note:
The OCU-1 override function is not supported with ERM-2400 LCS, because override
is not possible in hardwired mode neither.

Note:
The basic set is only supplied with adapter cables.
Recommended and required optional extension cables:
• SRH FS CAN Bus Cable, 10m/32.8ft K2.0019302
• SRH FS CAN Bus Cable, 25m/82ft K2.0019301
• SRH FS CAN Bus Coupler, 0.2m/0.65ft K2.0019300
