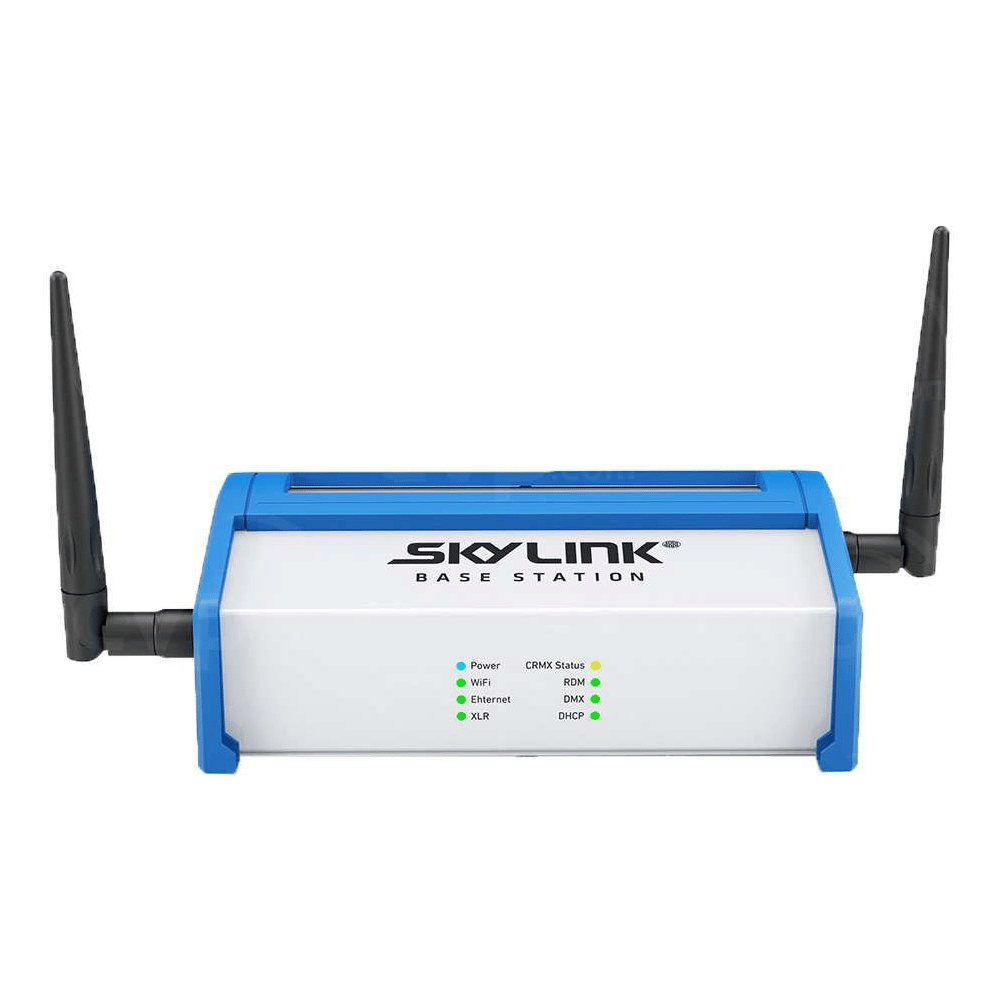

ARRI SKYLINK BASE STATION

£1,628.57 ex. VAT £1,954.28 inc. VAT

SKU: L2.0016360 Categories: ,

Description

The perfect wireless solution for ARRI SkyPanels is now available. Say goodbye to DMX cables with SkyLink.

ARRI and Innovative Dimmers have teamed up to create SkyLink: a two-part system that allows for wireless DMX and RDM communication to SkyPanels. The SkyLink Receiver and the SkyLink Base Station use LumenRadio for DMX/RDM communication and a WiFi chip in the Base Station allows for direct control from a DMX control application on a tablet or computer. Setting up a control network has never been easier.

Armed with two wireless chips, the SkyLink Base Station can communicate LumenRadio’s CRMX and the international standard of WiFi. Therefore, a tablet or computer can communicate, via WiFi, to the SkyLink Base Station which can, in turn, communicate the reliable CRMX standard to the SkyLink Receiver on the SkyPanel. This communication chain supports new and simple ways of controlling one or many SkyPanels.

The reliable Wireless DMX in SkyLink allows for strong and consistent communication to the fixtures. With an outstanding range of 150 m (500 ft.), SkyLink performs well on stage with typical obstructions. In optimal conditions, for example direct line-of-sight, the SkyLink can receive a signal up to 400 m (1300 ft.) away. This allows for dramatically increased freedom on set while still maintaining complete control over the SkyPanels.

Additional information

Brand

Arri

MPN

L2.0016360

Specification

Wirelss CommunicationLumenRadio CRMX (DMX/RDM) Transmitter & WiFi
RangeCRMX up to 500 m / 1,640 ft WiFi up to 75 m / 246 ft
Frequency Range2,402 – 2,480 MHz
ProtocolsDMX – 512(A), RDM ANSI E1.20, Art-Net, sACN
DMX ConnectorXLR 5-Pin Female
DMX Universe SupportOne Universe with 512 Channels
EthernetEtherCON RJ45 Female
Antenna ConnectorTwo RP-TNC Female
Antenna Type2×2 dBi RP-TNC Antenna
Control“Link“ button for linking to CRMX devices Webpage interface for adjusting settings
Power Supply Input Range100 to 240 V ~, 50/60 Hz
Power Supply Output Range12 V DC
Power Input Connection2.5 x 5.5 DC Barrel Connector
Device Input Voltage5 – 12 V DC
Weight1.1 kg (2.5 lbs)
ControlOn-Board On/Off Switch
Certifications (pending)CE, CB, ENEC, cNRTLus, PSE
Ambient Temperature Operation-20º to +50º C (-4 to 122º F)
Protection Class / IP RatingIII / IP20
Housing ColourBlue/Silver

Key Features

  • Two part system: SkyLink Receiver & SkyLink Base Station
  • Wireless for all SkyPanels
  • WiFi to Wireless DMX
  • Fully RDM capable
  • Compact and rugged design
  • Power via USB port
  • Outstanding range
  • LumenRadio wireless technology
  • Available in kits or individually
