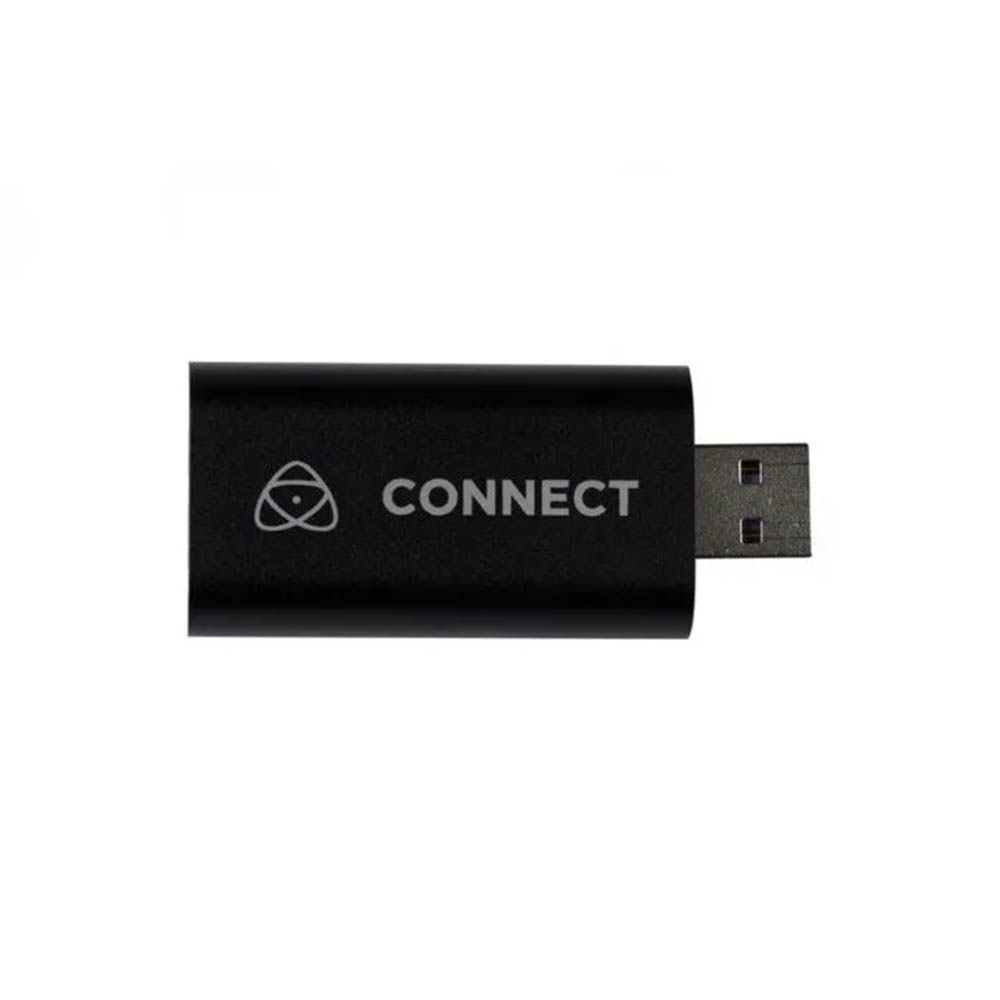

Atomos Connect – HDMI to USB Converter for 4K Video/Audio Capture
Roll over image to zoom in
Click to open expanded view
£69.00 Ex. VAT £82.80 Inc. Vat
Free Delivery on this item.
Connect, Convert, Stream
Atomos Connect, our HDMI to USB converter that allows you to take 4K (up to 30p), HD (up to 60p) or 720p (up to 60p) sources and output the same resolution and frame rate up to a maximum of 1080p60 ready for connection to the USB input on a computer and out to your choice of streaming platform.
Simply connect the HDMI output of your favorite camera, console or Atomos monitor recorder and you’re ready to go LIVE! The Connect 4K automatically converts your input to the widely supported USB Video Class (UVC) standard.
Supported by any CDN/Social platform that supports UVC: Skype, MS Teams, Zoom, Twitch, Youtube & many more.
*To successfully connect, your computer requires application including OBS, StreamLabs OBS, Wirecast or X-Split for enhanced streaming.
- HDMI input up to 4Kp30
- USB output resolution up to 1080p60 (YUV.JPEG)
- Color depth Supports 8/10/12-bit deep color
- HDMI Support Certified AWG26 HDMI cables up
to 15 meters
- Software support Popular acquisition software on
Windows, Android & Mac OS
- USB support Conforms to USB Video and UVC
- Conforms to USB Audio UAC standard (L-PCM format)
- Power – No external power required
- Maximum working current 0.4A / 5V DC
- Operating temperature range -10 to +55 °C.
- Dimensions (L x W x H) 64 x 28 x 13mm.
- Weight 21.4g
• 1 x Atomos Connect HDMI to USB Converter
• 1 x User manual
