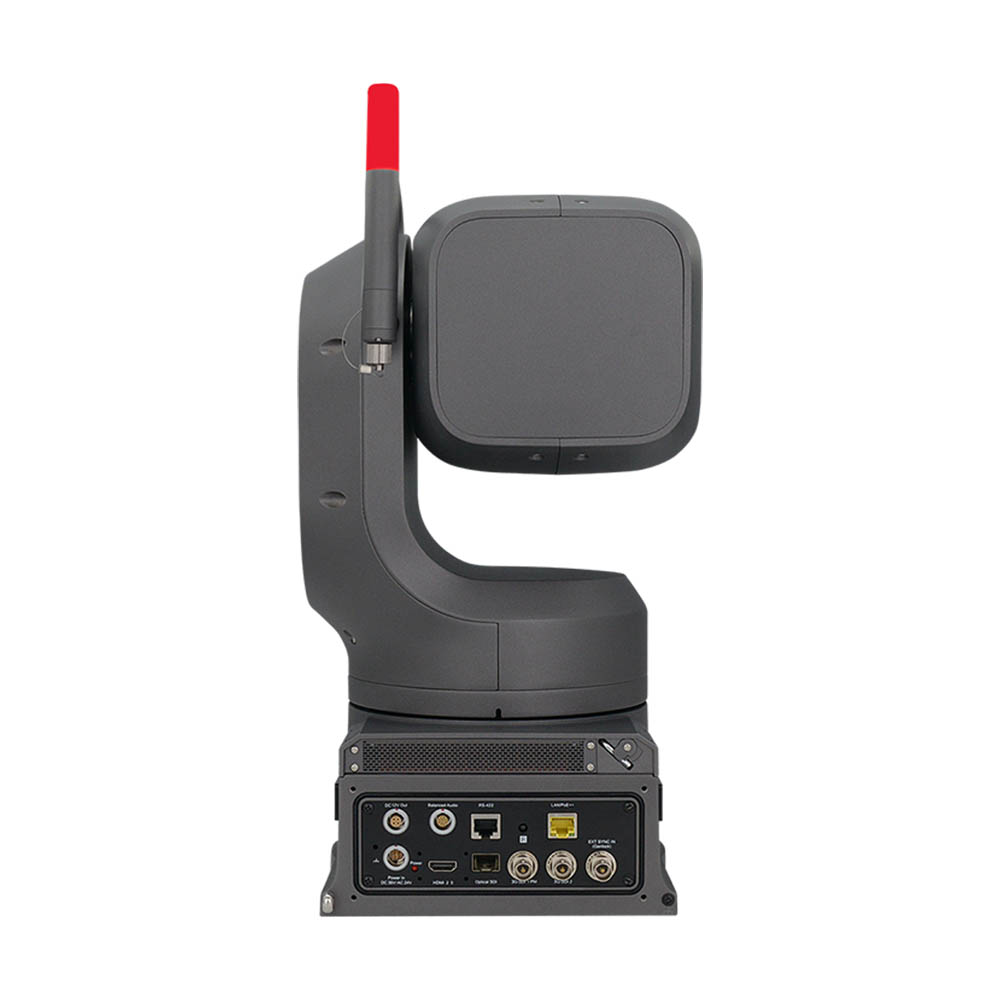

Bolin EXU230NX Outdoor NDI High Bandwidth FHD PTZ Camera – Grey

£7,620.00 £6,350.00

Order Now - Usually delivered in 5-7 days

SKU: EXU230NX Categories: , Tag:

Bolin EXU230NX Outdoor NDI High Bandwidth FHD PTZ Camera – Grey (EXU230NX) allows you to bring HD quality video to your production. This versatile PTZ camera outputs up to 1080p60 via 3G-SDI, HDMI, and IP streaming, and this model also features high-quality, low-latency NDI|HX3 streaming. It features a large 1/1.8″ CMOS sensor with 4.17MP image capture, a 30x optical zoom, an additional 12x digital zoom, and a wide 58.1° angle-of-view. This outdoor camera features an IP67-rated, nitrogen-filled housing, a wiper, a heater, and a defroster, and the lens features a salt-resistant coating for use in all weather conditions.

A tally light can be added and removed for use in multi-camera environments. The camera can output three simultaneous IP streams via RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to 1080p60. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the 10-pin LEMO-type audio port. An optional fiber-based SDI module can be added using the SFP slot. The camera can be powered using PoE++ or via an optional power adapter.

Features

  • On-screen character generator
  • All firmware upgrade via IP
  • Tally Light
  • POE++ and 24VDC/AC
  • Power Output: 12VDC
  • Optional laser IR Illuminator
  • Available Colour: Dark Gray

Comes With

  • x1 Bolin EXU230NX Outdoor NDI High Bandwidth FHD PTZ Camera – Grey
  • x1 Power Adapter
  • x1 IR Remote Control
  • x1 Tally Light Attachment
  • x1 RJ45 RS-422 Adapter
  • x1 Mount Cover Set
  • x1 Rainproof Tripod Mount Cover
  • x1 Camera Cover
  • x1 Lock
  • x1 Tripod Mount Screw Set 1/4″ 3/8″

Additional information

BRAND

Bolin

Specification

Image Maker Sony
Image Sensor CMOS image sensor 1/1.8-type STARVIS 2 sensor
Number of effective pixels 2712 x 1538, 4.17M [pixels]
Picture elements 2688 x 1520, 4.09M [pixels]
Lens Enhanced optical zoom 30X
Tele Convert Mode
Digital Zoom 12X
Horizontal Angle of View 58.1˚ (Wide) – 2.3˚ (Tele),
Vertical Angle of View 34.9˚ (Wide) – 1.7˚ (Tele),
Focal Length f= 6.5 mm (WIDE) to 162.5 mm (TELE)
Min. object distance 100mm (Wide), 1200mm (Tele)
Aperture F1.6 (Wide) to F4.8 (Tele), 16 steps
Min. Illumination ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On); ICR-On, 0.00008 lx (1/30 sec, 50%, High Sensitivity On)
Shutter Speed 1/1 sec to 1/10000 sec (22 steps)
Focus Spot Focus, Auto / Manual / One Push Trigger /Full Scan one push trigger / Near Limit / Spot Light Avoidance
White Balance Auto / ATW / Indoor / Outdoor / One Push WB / Manual / One push Triger / Outdoor Auto / Sodium Vapor Lamp Auto / Sodium Vapor Lamp / Sodium Vapor Lamp Outdoor Auto
Exposure Full Auto / Gain Limit Setting / Shutter Priority / Iris Priority / Manual / EV compensation
Features High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
WDR Yes
ND Filter
Image Stabilizer Yes, Super, Super+
Color Gain Yes (15 step)
Color Hue Yes (15 step)
Gamma Standard / Straight gamma
Gamma Level
Black Level
Black Gamma
Color Matrix
Noise Reduction On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D
S/N Ratio ≥50db
HLC Yes
E-Flip Yes
Privacy Zone Masking Yes
Defog Yes, (off, low, mid, high)
High Sensitivity Yes
Slow AE Response Yes
Day/Night Yes
Backlight Compensation Yes
Low Latency Mode Yes
