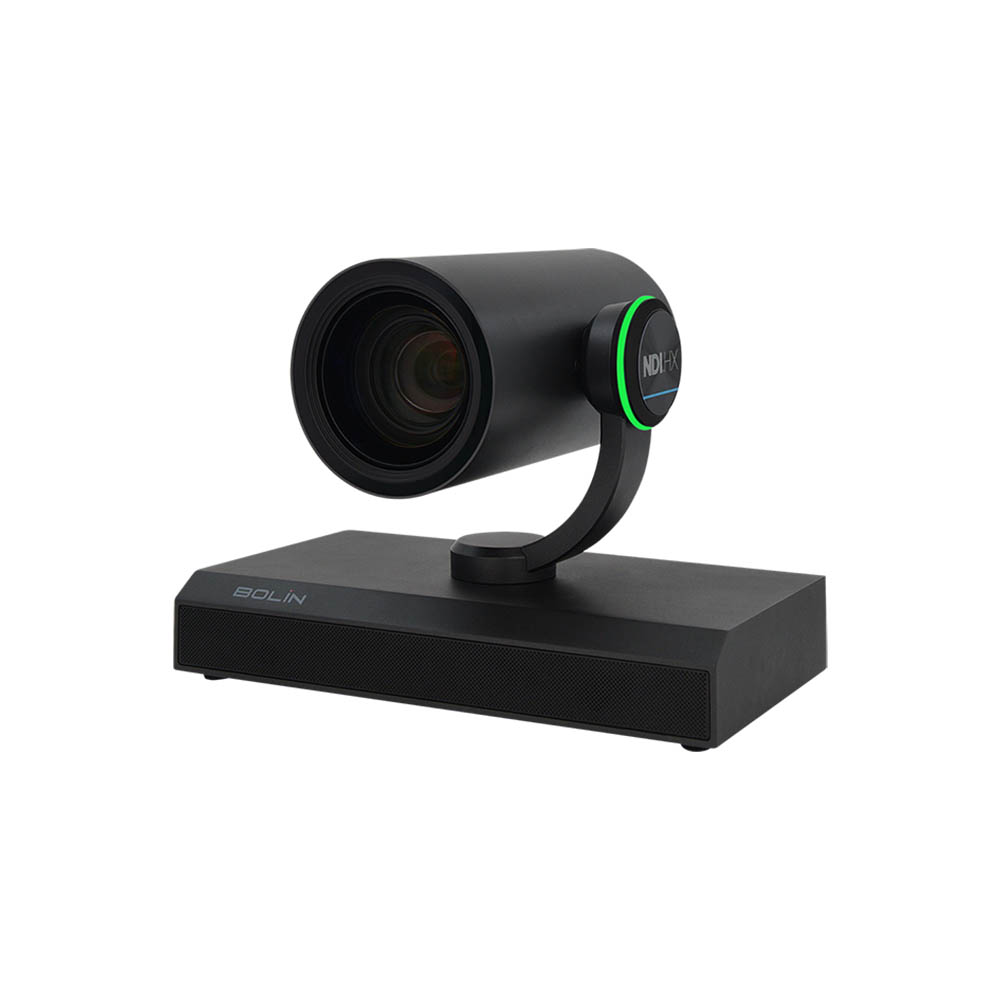

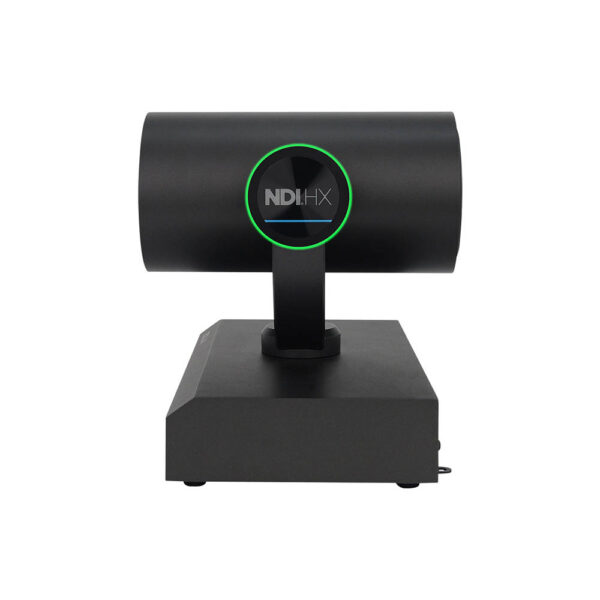

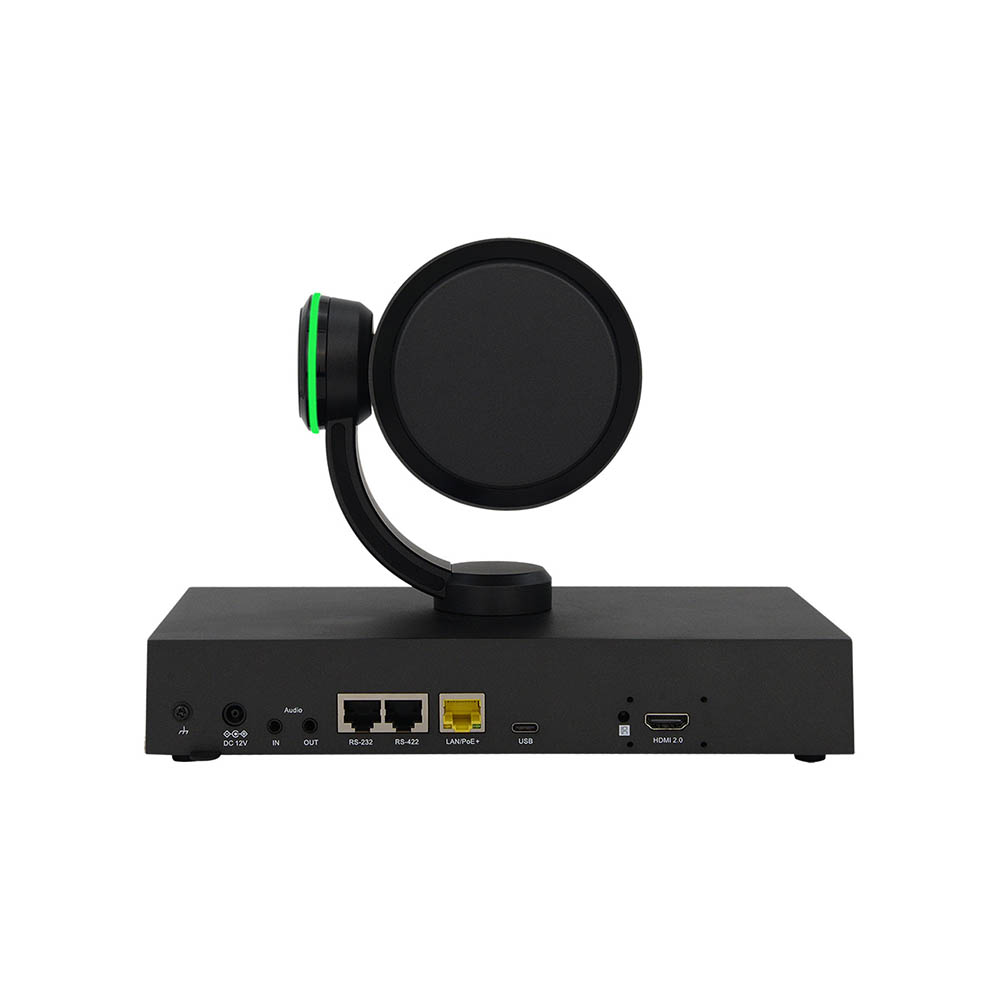

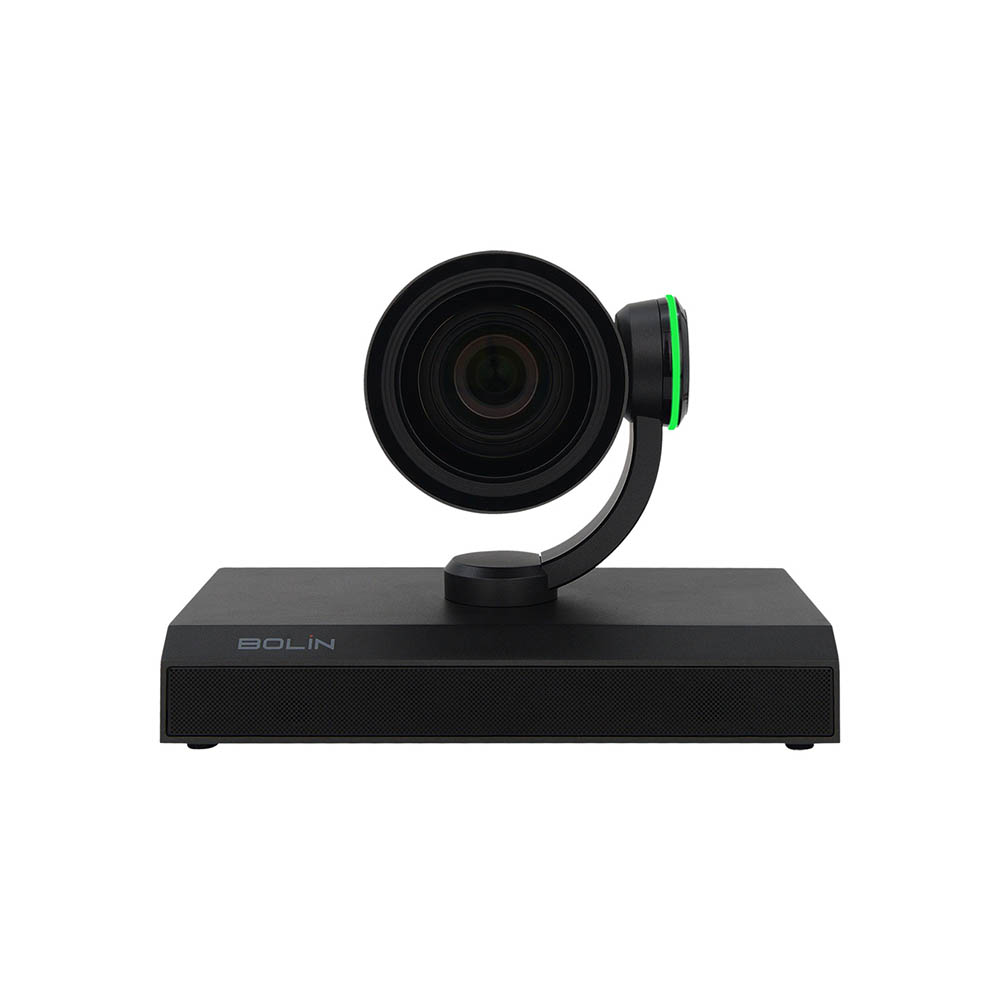

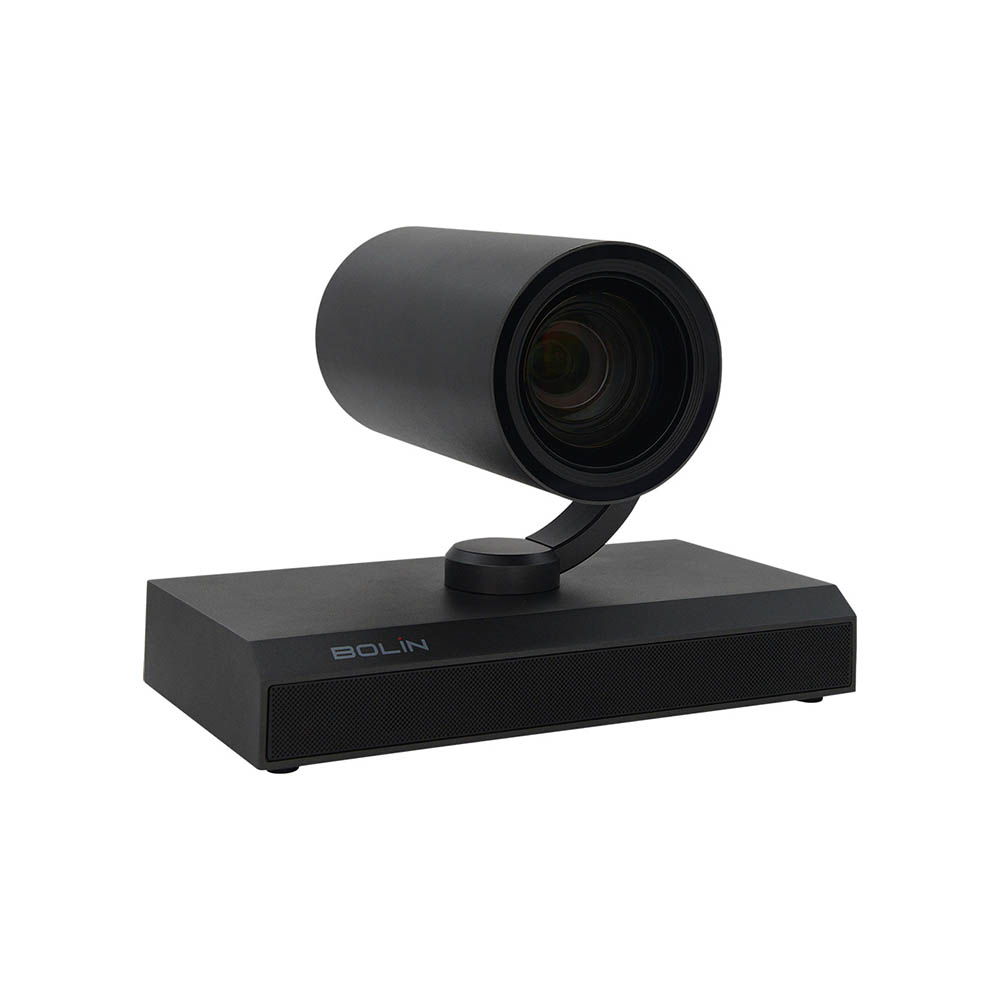

Bolin N6-420X NDI-HX3 4K60 PTZ Camera – Black
£1,506.00 £1,255.00
Order Now - Usually delivered in 3-5 days
Bolin N6-420X NDI-HX3 4K60 PTZ Camera – Black (N6-420X), supports NDI® HX3 and are fully compatible with NDI-enabled hardware and software. They are built on the Blue Line platform, which provides gold-standard features at an affordable price. Our PTZ camera manufacturing principles never compromise image quality, industrial video standards, or PTZ control operation. So, these budget-friendly cameras are made with Bolin care and quality.
The N6 NDI HX3 4K60 PTZ camera N6-420X features a 20x zoom range with a Ultra High-Definition high-quality 2160P60 image output over NDI® , HDMI, USB, and IP video streams. They are perfect for huddle rooms, video conference rooms, sports venues, live production, and ProAV use
High-Quality Imaging – Full HD
Bolin’s NDI HX3 N6 PTZ cameras are equipped with Sony sensor to provide brilliant, high-quality images in 4K60 2160P60 resolutions with 20x optical zoom.
PTZ Movement
Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Pre-set: Image parameter settings restored with pre-sets and quick access operation.
Video Output
N6 NDI HX3 4K60 PTZ cameras deliver NDI IP streaming video to network and are fully compatible with NDI-enabled hardware and software, with local HDMI video and USB streaming to PC software for conventional video production and cloud based video conferencing applications.
Remote Control and Setup PTZ Camera
Supports traditional serial RS232, RS422/485 via VISCA and Pelco P/D protocol, and IP remote control over network via Visca-over-IP and Onvif IP protocol, IR remote control.
Video Settings
Image parameter adjustments include exposure, focus, iris, shutter speed, white balance, colour matrix, gamma, wide dynamic range, E-flip/mirror and more with configurable video settings.
Ease of Installation and Use
Simply connect one network cable from camera to any 1GB Ethernet network/POE device to access to existing IP network and HDMI/SDI cable to baseband video work flow. Standard mounting and ceiling mounting with E-Flip function.
AI Featured Smart Focus and Exposure
Built with Bolin’s latest AI-powered face analytical engine which enables precise smart focus and smart exposure to bring customer a greater level of user experience and effective image quality improvement in a complex user environments.
Firmware updates, upgrade via USB and IP interface to keep camera features and performance up to date.
Audio
HDMI/SDI/USB and IP video streaming signal has high–quality audio streaming embedded with support for Mic-in and Line-in audio input.
Features
- 4K60 Ultra HD High-Resolution
- 20X Zoom Range
- Ultra Wide 79° HOV
- HDMI 2.0, USB3.0(Type C), IP
Comes With
- x1 N6-420X NDI-H3X 4K60 PTZ Camera
- x1 IR Remote Control
- x1 Power Adapter
- x1 RJ45 to RS-232/422/485 Cable Adapter
Additional information
BRAND | Bolin |
---|
Specification
Image Sensor | Sony Progressive scan CMOS image sensor 1/2.8 type | |
---|---|---|
Number of effective pixels | 3840×2160, 8.29MP | |
Zoom | Optical Zoom 20X, Digital Zoom 16X | |
Focal Length | f= 3.55 mm (WIDE) to 63.58 mm (TELE) | |
Aperture | F1.8 (Wide) to F3.58 (Tele) | |
Horizontal Angle of View | 78.59° (W)~4.92° (T) | |
Vertical Angle of View | 48.71° (W)~2.81° (T) | |
Min. object distance | 10mm (Wide) | |
Min. Illumination | 0.5lux(color),0.1lux(black) | |
Shutter Speed | 1/1 sec to 1/10000 sec (22 steps) | |
Focus | Auto, Manual, One Push | |
White Balance | Auto, Indoor, Outdoor,OPW,ATW, Manual | |
Exposure | Auto, Manual, Shutter /Iris /Brightness priority | |
Image Adjustment | Brightness, Color(Saturation), Contrast, Sharpness, HUE | |
Back Light Compensation | On/Off | |
E-Flip | On/Off | |
WDR | On/Off | |
Image Stabilizer | Yes | |
Defog | Yes | |
Mirror | Horizontal | |
Day/Night | On/Off | |
Contrast | Yes | |
Color Gain | Yes | |
Color Hue | Yes | |
Color Matrix | Yes | |
Black Level | – | |
Gamma | Yes, 0-4 | |
High Sensitivity | Yes | |
Scene | Default, Clear, Bright, Soft | |
Focus Zone | Face Priority, All Area, Upper Area, Central Area, Lower Area | |
AI Face Detection Focus | Yes | |
AI Face Auto Exposure | Yes | |
Noise Reduction | 2D/3D, 1-255 | |
S/N Ratio | ≥50db | |
OSD | Editable |
