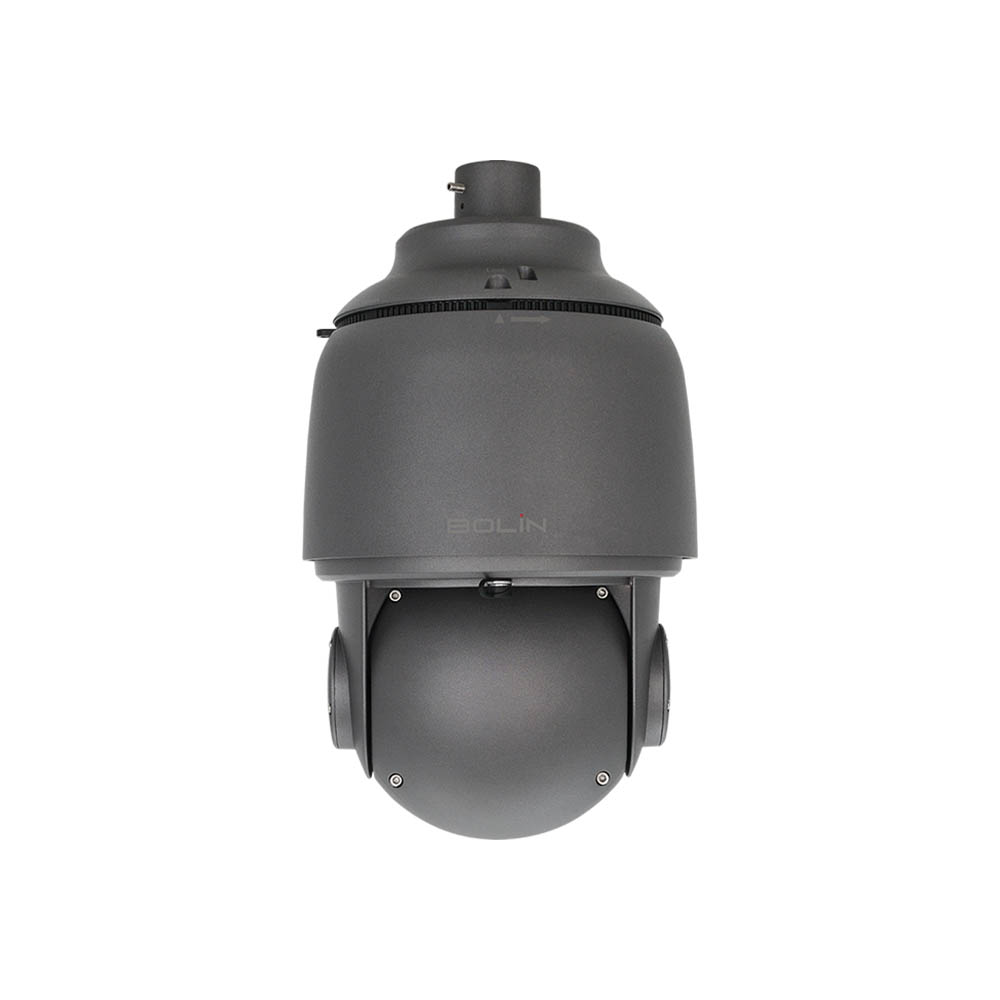

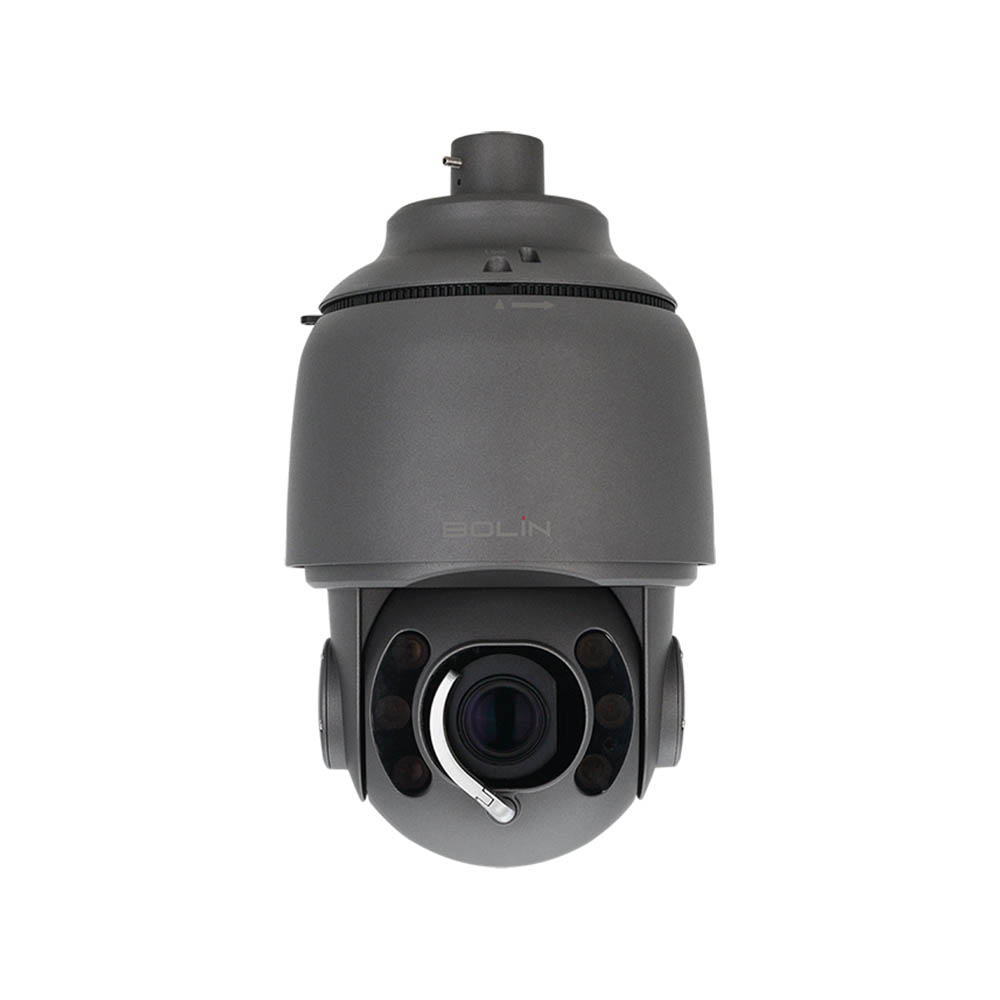

Bolin SD530NX Outdoor NDI HX3 FHD PTZ Camera – Grey
£5,286.00 £4,405.00
Bolin SD530NX Outdoor NDI HX3 FHD PTZ Camera (SD530NX) is optimized for outdoor surveillance or traffic monitoring applications while producing clear broadcast-quality, simultaneous dual-output 1080p60 3G-SDI and IP video in inclement weather conditions, and this model also features high-quality, low-latency NDI|HX3 streaming. With 30x optical zoom and 12x digital zoom, along with a myriad of image parameters, the camera can be controlled through a local or IP environment using LAN, RS-422, or RS-485 connections.
Low-latency mode, advanced autofocus, a wide dynamic range, a built-in visibility enhancer, and a built-in stabilizer also ensure high-quality broadcast in H.264, H.265, or MJPEG formats. Outdoor enhancements include a reinforced rain wiper, corrosion-resistant coating, a secure pendant mount, and a locking safety chain. Power to the device can be provided with either an AC or DC 24V power adapter or via a PoE++ connection.
Features
- New Sony Image Block
- Control Smoothness and Accuracy
- Fine PT Movement Step up to 255
- Rolling Adjustment
- FreeD Control Protocol Enabled
- Image Character Generator
- Reinforced Rain Wiper
- Quick Install and Release Mount
- Tail Cable Optional
- Salt Corrosion Resistant C5 Level Coated
Comes With
- x1 Bolin SD530NX Outdoor NDI HX3 FHD PTZ Camera – Grey
- x1 Power Adapter
- x1 Power Connector
- x1 Safety Chain
Additional information
| BRAND | Bolin |
|---|
Specification
| Image Block | Sony | |
|---|---|---|
| Image Sensor | Progressive scan CMOS image sensor 1/2.8 type, STARVISTM 2 | |
| Number of effective pixels | 2.13MP | |
| Picture elements | 1920×1080 | |
| Lens | Optical zoom 30X | |
| Digital Zoom | 12X | |
| Horizontal Angle of View | 64 ˚ (W)~2.4 ˚ (T) | |
| Focal Length | f= 4.3 mm (WIDE) to 129 mm (TELE) | |
| Min. object distance | 10mm (Wide), 1200mm (Tele) | |
| Aperture | F1.6 (Wide) to F4.7 (Tele) | |
| Min. Illumination (50%, High Sensitivity Mode ON) | ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s) | |
| Min. Illumination (50%, High Sensitivity Mode OFF) | ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s) | |
| Shutter Speed | 1/1 sec to 1/10000 sec (22 steps) | |
| Focus | Auto, Push, Manual | |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) | |
| Exposure | Auto, Manual, Shutter /Iris /Brightness priority | |
| Features | Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker ,Contrast, Effect, Sharpness | |
| WDR | Yes | |
| Image Stabilizer | Yes: Super image stabilizer (Super / Super+) | |
| Contrast | Yes | |
| Color Gain | Yes | |
| Color Hue | Yes | |
| Color Matrix | Yes | |
| Gamma | 0-1 | |
| Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D Noise Reduction | |
| S/N Ratio | ≥50db | |
| Spot Light Avoidance | Yes | |
| E-Flip | Yes | |
| Spherical Privacy Zone Masking | Yes | |
| Defog | Yes (low/mid/high) | |
| High Sensitivity | Yes | |
| Slow AE Response | Yes | |
| Day/Night (Auto ICR) | Yes: ON (B&W/Colour) | |
| Backlight Compensation | Yes | |
| Low Latency Mode | Yes | |
| Focus Zone | Central Area | |
| Scene Style | Default, Clear, Bright, Soft | |
