Type: | Approx. 22.3 × 14.9 mm (APS-C) CMOS |
Effective Pixels: | 24.5MP |
Total pixels: | 25.5MP |
Aspect Ratio: | 3:2 |
Low-Pass Filter: | Built-in/Fixed |
Filter Type: | RGB Primary Colour |
Sensor Shift-IS: | No |
|
Type: | DIGIC X |
|
Lens Mount: | RF (natively supporting RF and RF-S lenses) EF and EF-S lenses can be attached using Mount Adapter EF-EOS R, EF-EOS R Control Ring Mount Adapter, Drop-in Filter Mount Adapter EF-EOS R EF-M lenses are not compatible |
Focal Length: | Equivalent to 1.6x the focal length of the lens with RF/RF-S and EF/EF-S lenses |
Image Stabilisation: | Lens (IS) Digital only |
|
Type: | Dual Pixel CMOS AF II |
AF System/Points: | 100% horizontal and 100% vertical (Auto selection) 90% horizontal and 100% vertical (Manual selection) Max. 651 zones / 4503 positions for stills Max. 527 zones / 3713 positions for movies AF Working range: EV -5 – 20 (at 23°C & ISO100)¹ AF Modes:One Shot Servo AF Auto Switch (only in A+ mode) |
|
AF Point Selection | Automatic selection: 651 Available AF areas when automatically selected (Manual selection: 1-point AF [AF frame size can be changed] 4503 AF positions available stills (3713 Movies)) Manual selection: AF point Expansion 4 points (Up, down, left, right) Manual selection: AF point Expansion surrounding Manual selection: Flexible Zone AF 1-3 (All AF points divided into minimum of 9 to 513 zones) Manual selection: Whole Area AF (Entire focusing area with 651/4503 manual positions) |
AF Tracking | Humans (Eyes/Face/Head/Body), Animals (Dogs, Cats, Birds and Horses) or vehicles (Racing cars, Motor bikes, Aircraft and Trains) |
AF Lock | Shutter button is pressed halfway Customised to start AF and Metering and AF Start is pressed in One Shot mode Using customised button to stop AF in all servo |
AF Assist Beam | Emitted by (built in LED or optional dedicated Speedlite (flash) |
Manual Focus | Selectable on lens / In camera menu for lenses without AF / MF switch |
Focus Bracketing | Yes |
|
Metering modes: | Real-time with image sensor, 384-zone metering. (1) Evaluative metering (linked to all AF points) (2) Partial metering (Approx. 5.8% of viewfinder at centre) (3) Spot metering: Centre spot metering (Approx. 2.9% viewfinder centre) AF point-linked spot metering not provided (4) Centre-weighted average metering |
Metering Brightness Range: | Still: EV -2 to 20 (at 23°C, ISO100, with evaluative metering) Movie: EV 0 to 20 (at 23°C, ISO100, with evaluative metering) |
AE Lock: | Auto: AE lock takes effect when focus is achieved Manual: By AE lock button in P, Av, Tv, and M modes. Press again to cancel and once more to refresh. Enabled in all metering modes Exposure Compensation: ±3 EV in 1/3 stop increments (can be combined with AEB) |
AEB: | Not supported |
Anti-Flicker shooting: | Yes. Flicker detected at a frequency of 100 Hz or 120 Hz High frequency anti-flicker shooting not provided |
ISO Sensitivity²: | Auto 100-32000 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 51200 |
|
Type | : Electronically controlled focal-plane shutter and Electronic rolling shutter function using the image sensor |
Electronic Shutter Type | Rolling Shutter |
Speed: | Mechanical: 30-1/4000 sec (1/3 stop increments). Bulb Electronic: 30-1/8000 (1/3 stop increments). Bulb Shutter Release: Soft-touch electromagnetic release |
|
Type: | Auto white balance with the imaging sensor AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Manual, Colour Temperature Setting |
Settings: | Shoot or set white balance |
Shift | Blue/Amber+/-9 Magenta/Green +/-9 |
Custom White Balance: | Yes, a custom WB can be registered by selecting an image on card |
WB Bracketing: | Not supported |
|
Type: | Approx. 7.5 cm (3") TFT colour LCD monitor, Approx. 1.04 million dots |
Coverage: | Approx. 100% |
Viewing Angle Horizontally/Vertically | Approx. 150° vertically and horizontally |
Coating | None |
Brightness Adjustment | Manual: Adjustable to one of seven levels Colour Tone Adjustment: Not supported |
Touch-Screen Operations | Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting. |
|
Modes | E-TTL I I Auto Flash, Manual, MULTI flash |
Red-Eye Reduction | Not supported |
X-Sync | 1/250 sec. electronic 1st curtain Flash photography is not available with Electronic shutter. |
Flash Exposure Compensation | +/- 3EV in 1/ 3 increment s with EX series Speedlite flashes |
Flash Exposure Bracketing | Yes (+/- 3EV in 1/ 3- or 1/2-stop increments with EX/ELseries Speedlite flashes) |
Flash Exposure Lock | Not supported |
Second Curtain Synchronisation | Yes |
Hot Shoe/PC Terminal5 | Hot shoe: 21-pin multi-function shoe only |
External Flash Compatibility | E-TTL I I with EX/EL series Speedlite, wirelessmulti-flash support |
External Flash Control | via camera menu screen |
|
Modes | Scene Inteligent Auto movies SCN Movie: Smooth skin movie, movie for close-up demos, movie IS mode Custom Movie Shooting Modes: C1 / C2 / C3 Movie: Movie auto exposure, movie shutter priority AE, movie aperture priority AE, movie manual exposure S&F: S&F movie auto exposure, S&F movieshutter-priority, S&F movie aperture-priority, S&F movie manual exposure Still photo shooting: Program AE, Shutter-priority AE, Aperture-priority AE, Manual exposure, Bulb exposure, Scene inteligent auto, self portrait, portrait, smooth skin, panoramic shot6, food7, handheld night scene8 |
Special Scene Modes Movies: | Smooth skin movie, movie for close-updemos, movie IS mode Stills: Self portrait, portrait, smooth skin, panoramicshot, food, handheld night scene |
Creative Filters | Not support ed |
Picture Styles | Auto, standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Def. 1, User Def. 2, User Def. 3 |
Colour Space | sRGB, BT.709, BT.2020, Cinema Gamut |
Image Processing | HEIF to JPEG conversion: supported Cropping: Magnify/ reduce, move, tilt correction up to 10°, aspect ratio Resizing: Supported (M / S1 / S2) for JPEG and HEIFimages Creative Assist : Auto1, Auto2, Auto3, Vivid, Soft, Warm, Cool, Green, Shine, Lime, Peach, B&W, Blue, Purple, Normal Movie editing: Cut beginning, cut end, play, save, savecompressed version Frame grab9from 4K movies: Supported |
Drive Modes | Single, Continuous High+, Continuous High,Continuous Low, Self-timer(2s+remote, 10s+remote, continous) |
Continuous Shooting10 | Max. Approx. 12 FPS with /1st curtain electronic shutter the speed maintained for 140 JPEG or 59 RAW images Max. Approx. 15 FPS with Electronic shutt er the speed maintained for 95 JPEG or 36 RAW images |
Maximum Burst11 | 95 |
Interval Timer | Supported: Shooting interval 1 sec. - 99 hr. 59 min. 59 sec., 01-9999 or unlimited |
|
Still Image Type12 | RAW 14 bit: RAW and C-RAW (Canon original RAW 3rd edition) JPEG 8 bit: 4 compression options HEIF 10 bit: 4 compression options Complies with Exif 2. 31 and Design rule for Camera File system 2.0 Complies with Digital Print Order Format [DPOF] Version 1.1 |
RAW+JPEG/HEIF Simultaneous Recording | Yes, any combination of RAW + JPEG or RAW + HEIF possible |
Image Size | RAW/ C-RAW: 6000x4000 (3: 2 aspect ratio) JPEG/ HEIF: 3:2 ratio (L) 6000x4000, (M) 3984x2656, (S1) 2976x1984, (S2) 2400x1600 4:3 ratio (L) 5328x4000, (M) 3552x2664, (S1) 2656x1992, (S2) 2112x1600 16:9 ratio (L) 6000x3368, (M) 3984x2240, (S1) 2976x1680, (S2) 2400x1344 1:1 ratio (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1600x1600 |
Folders | New folders can be manually created and selected |
File Numbering | (1) Continuous numbering (2) Auto reset (3) Manual reset |
Flie Naming | Preset Code User setting 1 User setting 2 |
|
Movie Type | XF-HEVC S YCC422 10 bit, H.265 / HEVC, YCbCr 4:2:2, MP4 XF-HEVC S YCC420 10 bit, H.265 / HEVC, YCbCr 4:2:0, MP4 XF-AVC S YCC 422 10 bit, H.264 / MPEG-4 AVC, YCbCr 4:2:0, MP4 XF-AVC S YCC 420 8 bit, H. 264 / MPEG-4 AVC, YCbCr 4:2:0, MP4 |
Movie Size | 4K UHD 13 (3840 x 2160): 59.94, 50.00, 29.97, 25.00, 23.98 fps Full HD (1920 x 1080): 119.88, 100.00, 59.94, 50.00, 29.97, 25.00, 23.98 fps |
Colour Sampling (Internal recording) | YCbCr 4:2:2 / YCbCr 4:2:0 |
Canon Log | CanonLog 3 |
Movie Length14 | Max duration 2 hours (excluding High Frame Rate movies) |
High Frame Rate Movie | Full HD 1920 x 1080 at 100 fps or 119.88 fps Recorded as 1/ 4-speed slow motion movie |
Frame Grab15 | 8.3-megapixel JPEG still image frame grab from 4K UHD movie possible (HEIF only possible when HDR PQ is set) |
Bitrate16/Mbps | 4K UHD XF-HEVC S YCC 4:2: 2 10 bit (29.97p/ 25.00p/23. 98p): Approx. 135 Mbps 4K UHD XF-HEVC S YCC 4:2: 0 8 bit(29.97p/25.00p/23.98p): Approx. 100 Mbps 4K UHD XF-AVC S YCC 4:2:2 10 bit (29.97p/ 25.00p/23. 98p): Approx. 150 Mbps 4K UHD XF-AVC S YCC 4:2:0 8 bit (29.97p/ 25.00p/23. 98p): Approx. 100 Mbps 4K UHD (Crop) XF-HEVC S YCC 4:2: 2 10 bit (59.94p/ 50.00p): Approx. 225 Mbps 4K UHD (Crop) XF-HEVC S YCC 4:2: 0 8 bit(59.94p/50.00p): Approx. 150 Mbps 4K UHD (Crop) XF-AVC S YCC 4:2:2 10 bit (59.94p/ 50.00p): Approx. 250 Mbps 4K UHD (Crop) XF-AVC S YCC 4:2:0 8 bit (59.94p/ 50.00p): Approx. 150 Mbps Full HD XF-HEVC S YCC 4:2: 2 10 bit (119.88p / 100p): Approx. 100 Mbps Full HD XF-HEVC S YCC 4:2: 2 10 bit (59.94p/ 50.00p/29. 97p/25.00p/23.98p): Approx. 50 Mbps Full HD XF-HEVC S YCC 4:2: 0 10 bit (119.88p / 100p): Approx. 70 Mbps Full HD XF-HEVC S YCC 4:2: 0 10 bit (59.94p/ 50.00p/29. 97p/25.00p/23.98p): Approx. 35 Mbps Full HD XF-AVC S YCC 4:2:2 10 bit (119.88p / 100p): Approx. 100 Mbps Full HD XF-AVC S YCC 4:2:2 10 bit (59.94p/ 50.00p/29. 97p/25.00p/23.98p): Approx. 50 Mbps Full HD XF-AVC S YCC 4:2:0 8 bit (119.88p / 100p): Approx. 70 Mbps Full HD XF-AVC S YCC 4:2:0 8 bit (59.94p/ 50.00p/29. 97p/25.00p/23.98p): Approx. 35 Mbps |
Dual Card Recording | Not supported |
Microphone | Built-in stereo microphone (48 KHz, 24/ 16-bit x 2 channels) |
HDMI Display | Output to external monitor only (output of images and shoot ing information, images/video are recorded to the card) Camera screen and External Monitor output (Recording to camera is not possible, use with external recorder, camera screen shows images with shooting information) |
HDMI Output | HDMI Micro OUT terminal (Type D) Auto: - 4K (UHD): NTSC (59.94p / 29.97p / 25.00p), PAL (50.00p / 23.98p) - 1080 NTSC (59.94p / 59.94i), PAL (50.00p / 50.00i) - 480 NTSC (59. 94p) - 576 PAL (50.00p) 1080p: - 1080 NTSC (59.94p), PAL (50.00p) - 480 NTSC (59. 94p) - 576 PAL (50p) HDR Specificat ion: Rec. ITU-R BT.2100 Bit depth: 10 bits Colour sampling method: Uncompressed YCbCr 4:2:2 Colour space: BT.709 / BT. 2020 |
Focusing | Dual Pixel CMOS AF II with Eye/Face Detection and Tracking AF (people, animals and vehicles) , Movie Servo AF, Manual Focus |
ISO | Custom Picture [OFF]: 100-12800, H: 16000-25600 Custom Picture [Canon 709 / PQ / HLG / Canon Log 3]: 400-12800, L: 100-320, H: 16000-25600 Custom Picture [BT. 709 Standard]: 160-1200, L: 100-125, H: 16000-25600 |
|
Metadata Tag | User copyright information (can be set in camera) |
Intelligent Orientation Sensor | Yes |
Playback Zoom | 1.5x - 10x in 15 steps |
Display Formats | (1) Single image (2) Single image with information (basic / detailed) (3) 4 image index (4) 9 image index (5) 36 image index (6) 100 image index (7) Jump Display (1, 10 or Custom (1-100) images, Date, Folder, Movies, Stills, Protected images, Rating, Jump to first image of scene) (8) Rating |
Slide Show | Image select ion: All images |
Playback time: | 1/2/3/5/10 or 20 seconds Repeat: On/Off |
Histogram Brightness: | Yes |
RGB: | Yes |
Highlight Alert | Yes |
Image Erase | Single image, select range, Selected images, Folder, Card, All |
Image Erase Protection | Protect / Unprotect: Single image, Selected, Folder, Card, All found images |
Menu Categories | (1) Shooting menu (2) AF Menu (3) Playback menu (4) Network (5) Setup menu (6) Custom Controls (7) Custom Functions menu (8) My Menu |
Menu Languages | 29 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesian and Japanese |
Firmware Update | Update possible by the user (Camera, Lens, External Speedlite, BLE remote control, Lens adapter, power zoom adapter, multi- function shoe accessories) |
|
Computer | Hi-Speed USB 3.2 USB Type-C connector For computer communication / smart phone communication / battery charging / camera power supply |
Wi-Fi17 | Wireless LAN (IEEE802.11ac/a/b/g/n) (5 GHz/ 2.4 GHz), with Bluetooth 5.1 support Features supported - EOS Utility, Smartphone, Upload to image.canon, Wireless printing |
Other | HDMI Micro out (Type D, HDMI-CEC not supported) External Microphone In (3.5mm Stereo mini jack) Headphone OUT (3.5mm Stereo mini jack) |
|
Canon Printers | Not supported |
PictBridge | Not suppored |
|
Type | SD/SDHC/SDXC and UHS-II18 |
|
PC | Windows19 |
Macintosh | macOS19 |
|
Image Processing | Digital Photo Professional 4.17.20. or later, Digital Photo Professional Express mobile app (iOS only v1.8. 10. or later) (RAW Image Processing not DUAL PIXEL RAW on DPP Express mobile) |
Other | EOS Utility203.16.10 or later (incl. Remote Capture), Picture Style Editor 1.28.10 or later, EOS Lens Registration Tool, Canon Camera connect app 3.0.10 or later (iOS/Android) |
|
Batteries21 | Rechargeable Li-ion Battery LP-E17 (supplied) |
Battery Life22 | With LCD Approx. TBC shots (at 23°C) |
Battery Indicator | 4 level indicator |
Power Saving23 | Screen dimmer: 5 sec. / 10 sec. / 15 sec. / 20 sec. /25 sec. / 30 sec. / Disable Screen off: 5 sec. / 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min. / Disable Auto power off: 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min. / Disable |
Power Supply & Battery Chargers | Battery charger LC-E17E (supplied), AC Adapter AC-E6N and DC Coupler DR-E18, PD-E2 / PD-E1 USB power adapter |
|
Wireless File Transmitter | None |

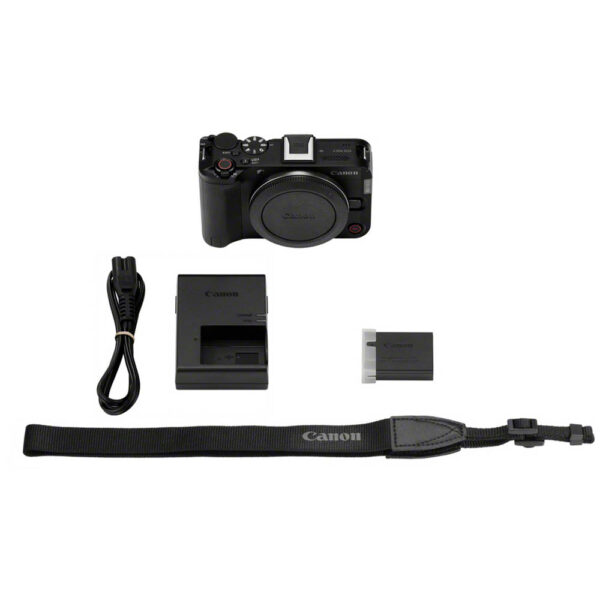

Cases / Straps | Strap provided Hand Strap E2 Protecting Cloth PC-E1 / PC-E2 Rain cover ERC-R5L / ERC-R5S |
Lenses | All RF24and RF-S lenses (EF & EF-S via Lens adapters) |
Lens Adapters | Mount Adapter EF-EOS R, EF-EOS R Control Ring Mount Adapter, Drop-in Filter Mount Adapter EF-EO S R |
Flash25 | Canon Speedlite EL-5, Speedlit EL-10, Speedlite Transmitter ST-E10 With AD-E1 adapter: Canon Speedlite (EL-1, EL-100, 90EX, 220EX, 270EX, 270EX I I, 320EX, 380EX, 420EX, 430EX, 430EX I I, 430EX I II 470EX-AI, 550EX, 580EX, 580EX II , 600EX, 600EX-RT, 600EX-II-RT, Macro-Ring-Lit e MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX-RT, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT, Speedlite Transmitter ST-E3-RT V2, Off-Camera Shoe Cord OC-E3) |
Remote Controller/Switch | Remote Switch RS-60E3 Timer Remote Controller TC-80N326 |
Other | Shoe cover ER-SC2 (Included), Multi-Function Shoe Adapter AD-E1, Multi-Function Shoe Directional Stereo Microphone DM-E1D, Multi-Function Shoe Adapter for Smartphone Link AD-P1 for Android, off-camera shoe cord OC-E4A Tripod grip HG-100TBR27, Interface Cable IFC-100U, Interface Cable IFC-400U, with AD-E1 adapter: Stereo Microphone DM-E1 / DM-E100 |
|
Body Materials | Primarily consist s of magnesium alloy, partially aluminium alloy |
Operating Environment | 0 – 40 °C, 85% or less humidity |
Dimensions (WxHxD) | Approx. 119. 3 x 73. 7 x 45. 2 mm |
Weight (body only) | Approx. 323 g (370g with card and battery, Based on CIPA guidelines.) |
