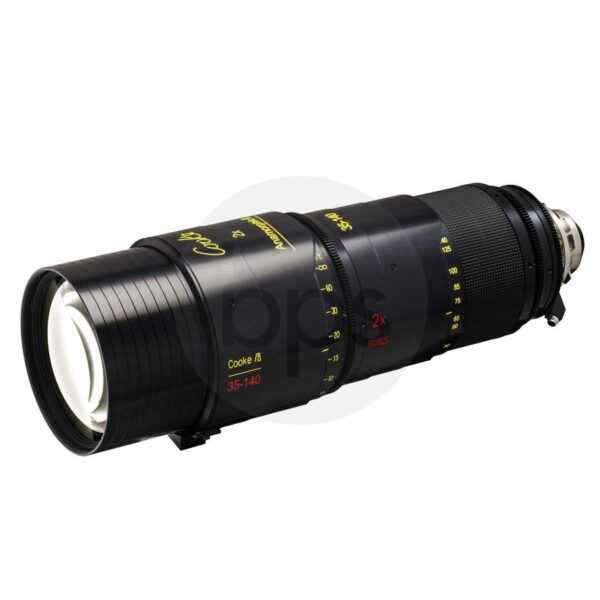

Cooke Anamorphic/i 35-140mm T3.1 PL Lens
£42,500.00 Ex. VAT £51,000.00 Inc. Vat
- Durable and lightweight construction
- Eleven leaf linear Iris module
- Especially well balanced for astigmatism
- Coated with a scratch resistant PTFE finish
- Large, clear Focus numerals
- Equipped with Cookes /i Technology
- Offers superb optical and mechanical performance
Cooke Anamorphic/i 35-140mm PL Mount Cine Zoom Lens
35-140mm Anamorphic/i PL Mount Cine Zoom Lens from Cooke
Shoot from very wide angle to telephoto with the Cooke 35-140mm Anamorphic/i zoom with 4x zoom ratio. Or, go extreme telephoto with the Cooke 45-405mm Anamorphic/i zoom with 9x zoom ratio (shipping 2017).
These are true, front anamorphic zooms with the creative flexibility that cinematographers have waited years to have. Cooke’s new, patented optical design brings together a unique combination of attributes.
Angular Rotation of Iris Scale:90°
Min. Marked Object Distance:
- 1200 mm
- 47 in
Close Focus from Lens Front:
- 720 mm
- 28 in
Angular Rotation to MOD Endstop:300°
Maximum Angle of View** Horizontal / Vertical:
- 62.4 / 17.5° H
- 26.0 / 7.6° V
Length from Front of Lens to Lens Mount:
- 430 mm
- 16.93 in
Max Front Diameter:
- 136 mm
- 5.35 in
- 10.3 kg
- 22.6 lbs
Maximum Format Cover: 33.54mm Diameter (New Epic S35mm Format)
Focus Scales: Two opposing focus scales – metric and footage. Scales marked from infinity to MOD.
Focus Drive Gear: 172 teeth 0.8 metric module x 6.0mm wide x 283mm from the image plane.
Zoom Scales: Two opposing zoom scales.
Zoom Drive Gears: 140 teeth 0.8 metric module x 6.0mm wide x 102mm from the image plane.
Iris Scales: Two opposing linear T scales – whole and third stops marked.
Iris Drive Gear: 134 teeth 0.8 metric module x 4.0mm wide x 82mm from the image plane.
Our Cooke 35-140mm Anamorphic/i zoom lens is supplied with /i Technology, and is designed for all PL mounted professional motion picture film and electronic cameras. The /i Technology provides cinematographers and camera operators with vital information on lens setting, focusing distance, aperture and depth-of-field, hyperfocal distance, serial number, owner data, lens type and focal length in both metric and footage measurements. For zoom lenses, the zoom position is displayed.
A scratch resistant PTFE hard anodised finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
An eleven-leaf linear module iris assembly is fitted into the Cooke Anamorphic/i zooms with an aperture range of T3.1 to T22.
Large, clear numerals on both sides of the focus barrel benefit the focus puller when shooting under difficult lighting conditions. Plus the the Entrance Pupil position is engraved on the lens.
The Cooke Anamorphic/i 35-140mm zoom has a true T3.1 aperture and cover Super 35mm format.
