Datavideo PTR-10T Mark II HDBaseT Robotic Pan Tilt Head
£2,700.00 £2,250.00

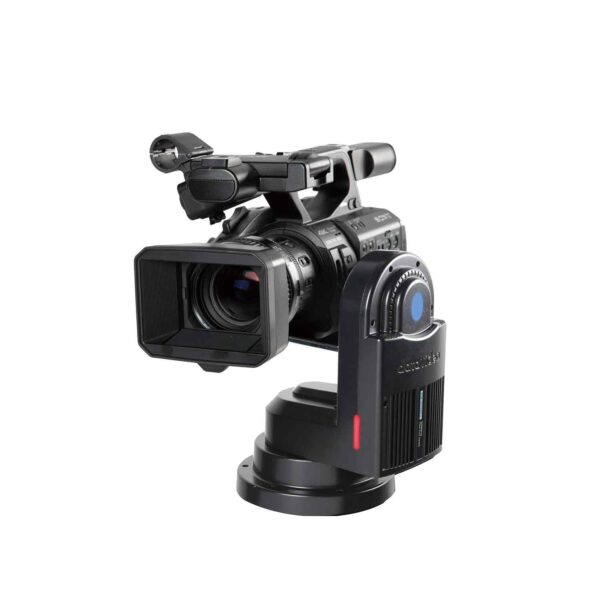

Datavideo’s brand-new PTR-10T MARK II is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a robotic camera
A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.
The PTR-10T MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series and compatible with HDBaseT over Ethernet and other integration solutions such as Crestron.

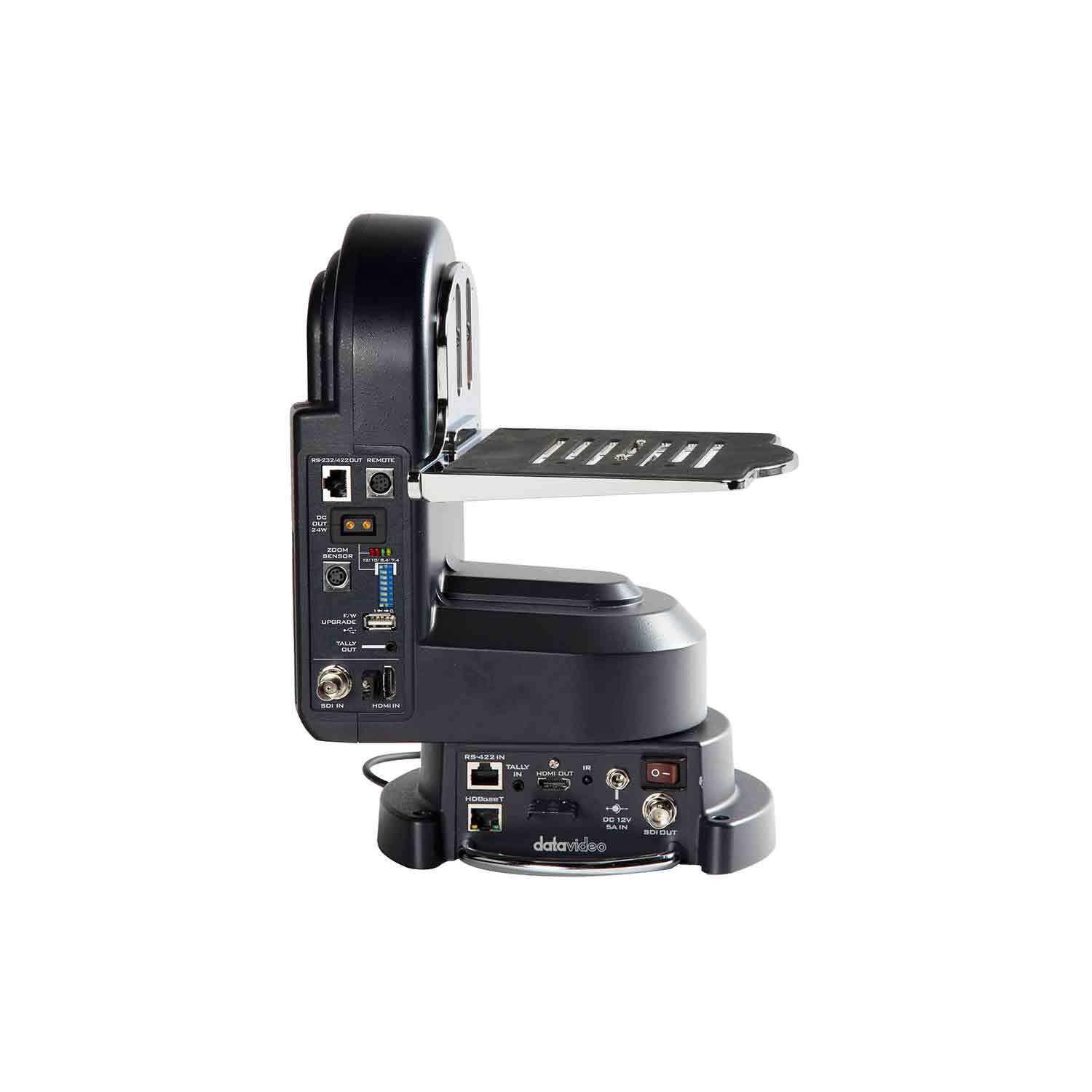

PTR-10T MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.
Cost-Effective
PTR-10T MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.
Wide Range of Compatible Cameras Supported
The PTR-10T MARK II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.
Light Weight, Strong, and Sturdy design
With a weight of 3.4 kg, PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.
Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series will fit your need.
Super strong design. PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera.
Support 50 preset camera shooting positions
When your video production requires many different angles and positions, 50 preset camera positions will meet your needs.
Using the IR remote allows you to call up to 50 presets at any time.
When combined with the RMC-300A universal remote controller, the 14 physical buttons can be called at any time.
When using the RMC-180 MARK II remote control, there are 4 physical buttons to call.
You do not need any battery mount on your camera when using PTR-10T MARK II. The PoE++ is building in the PTR-10T MARK II; No extra battery or power needed when operating.
With the big tally light in the front to show the status of your camera.
D-tap connector for DC output
The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power.
This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.
Specification
Model Number
Video Interface
SDI x 1
RJ45 x 1 (HDBaseT)
Video Output
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit
HS-1600T
HS-1600T Mark II
RMC-300A
VISCA Protocol Controller
IP Control
IR remote
Panning / Tilting Range
Tilt: ±45°
Panning / Tilting Speed
Tilt: 0.06~10° /Sec
Preset
Control Distance
100M by HDBaseT
Control Protocal
DVIP
Control Input
HDBaseT
Maximum Load
Control Output
RS-422
BX-Lens
LanC
Power Requirement
DC 12V~ 18V, 5A (With Camera)
Power Supply
Operating Temp. Range
Operating Humidity Range
Storage Temp. Range
Storage Humidity Range
Weight
Dimension (LxWxH)
Optional accessories
WM-10
WM-11
CM-10
What's Included
PTR-10T Mark II Main Unit x 1
DC 12V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw (14mm) x 2
1/4” screw (10mm) x 1
1/4” to 3/8” screw adaptor x 1
