Deity TC-SL1 Timecode Slate

£891.60 £743.00

Only 1 left in stock

This item: Deity TC-SL1 Timecode Slate

Only 1 left in stock

£891.60 £743.00
£891.60 £743.00
1 × Deity C15 - 3.5 Locking TRS to BNC Timecode Cable

Only 1 left in stock

£20.70 £17.25
SKU: DY-6971842184699 Categories: ,

Frequently Bought Together

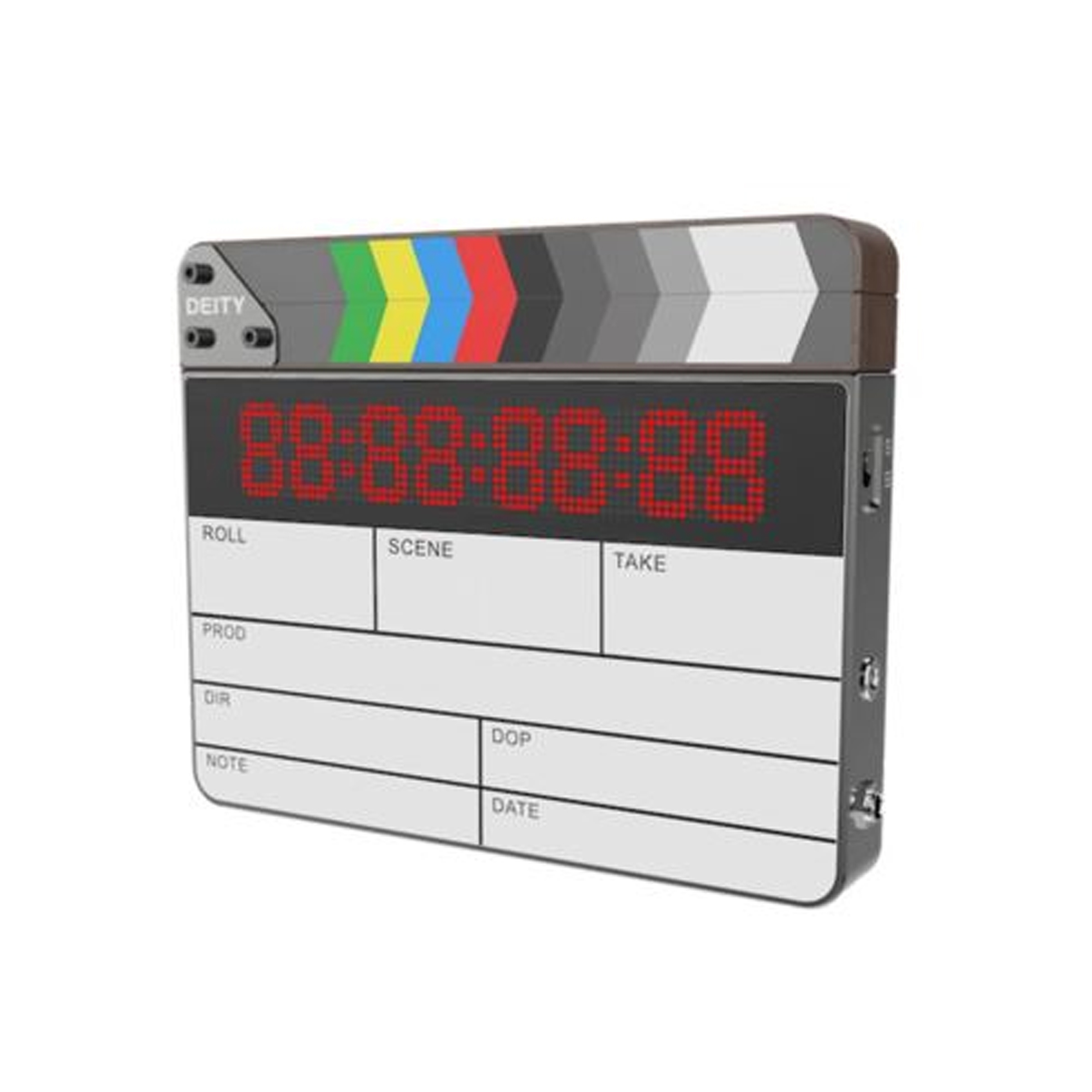

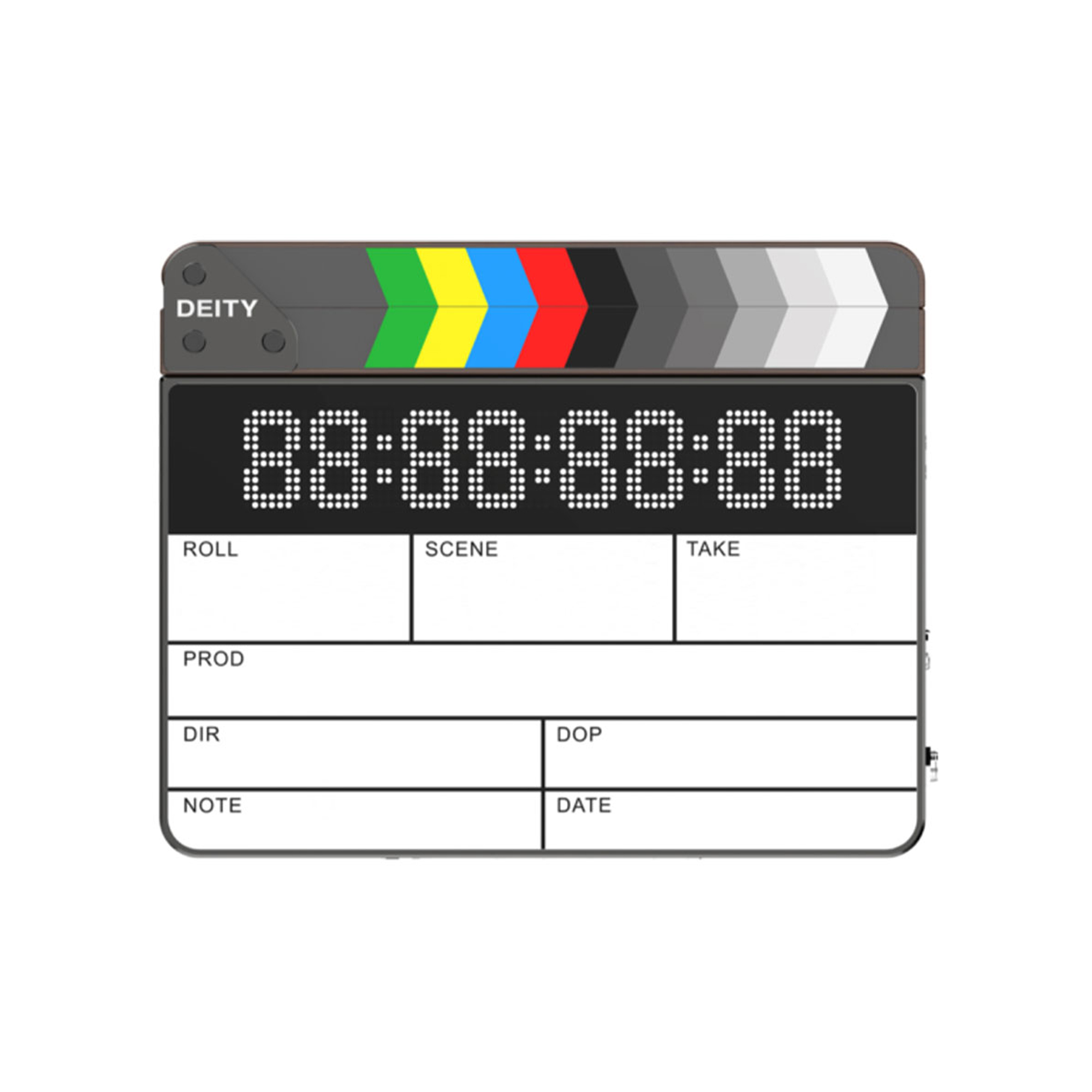

The Deity TC-SL1 (6971842184699) is the world’s first Bluetooth® enabled smart slate. Wirelessly sync the TC-SL1 from up to 250 feet away using its free phone app, Sidus Audio. You can also sync the TC-SL1 using your TC-1 timecode boxes. Featuring both 5-Pin and 1/4” TRS, the TC-SL1 will work with your existing timecode cables. And with the flick of a switch, the TC-SL1 can accommodate tail slating. The two NP-F550s can be hot-swapped between each other, and the USB-C port can support up to 30W charging. The wooden clapper is made from sustainably farmed Walnut lumber from the state of Tennessee.


  • Super Bright Dot Matrix Timecode Display
  • Remote Control via Bluetooth® Phone App
  • Dual TC I/O; 5-Pin LEMO® , 1/4” TRS
  • Supports All SMPTE Formats, Less than 1 Frame Drift over 24 Hours
  • Dual Battery Bay; Supports NP-F550 Batteries
  • Features a Dimmable Back Light
  • USB-C Charging Port; 25 Watt
  • Flippable Timecode Display for Tail Slating


● 1x Deity TC-SL1 Wireless Timecode Slate
● 2x Deity NP-F550 7.4V 3350mAh Batteries
● 1x USB-C to USB Cable
● 1x 3.5mm to 5-Pin Timecode Cable
● 1x Dry Erase Marker
● 1x Carrying Case


Both the slate backlight and dot matrix timecode display can be dimmed. There are six steps of brightness available in the onboard menu. When you open the clapperboard the TC display and slate backlight turn on.

Using our exclusive Bit Connectify™️ technology you can control up to 20x TC-SL1 timecode slates (or TC-1 timecode boxes) from 250ft away. This makes the TC-SL1 the world’s first smart slate with Bluetooth®.

The TC-SL1 also features a secondary RF chip for syncing timecode with any TC-1 devices on set from a range of 30ft.

Already own a timecode box ecosystem outside of the Sidus Audio family?

The TC-SL1 can read and output LTC timecode signal, making it compatible with any brand of timecode gear on the market. Plus, the TC-SL1 can auto-sync its internal TC and FPS to an external timecode signal.

Even after powering down the TC-SL1 timecode will continue running for 6 hours.

We ensured that the TC-SL1 smart slate display can be seen on camera no matter how it is held in front of the lens and no matter what angle the light is coming from on set. The front of the TC-SL1 is made of a new type of dry-erase polymer with an anti-reflective surface. This unique matte finish faceplate means post-production will always be able to reference the slate during editing.

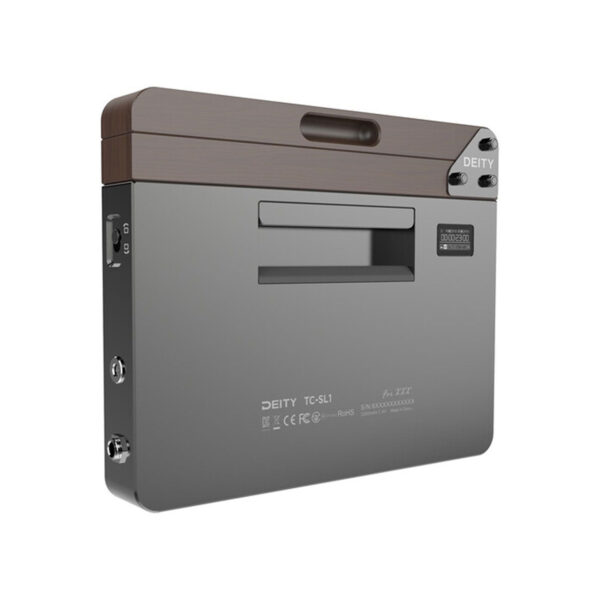

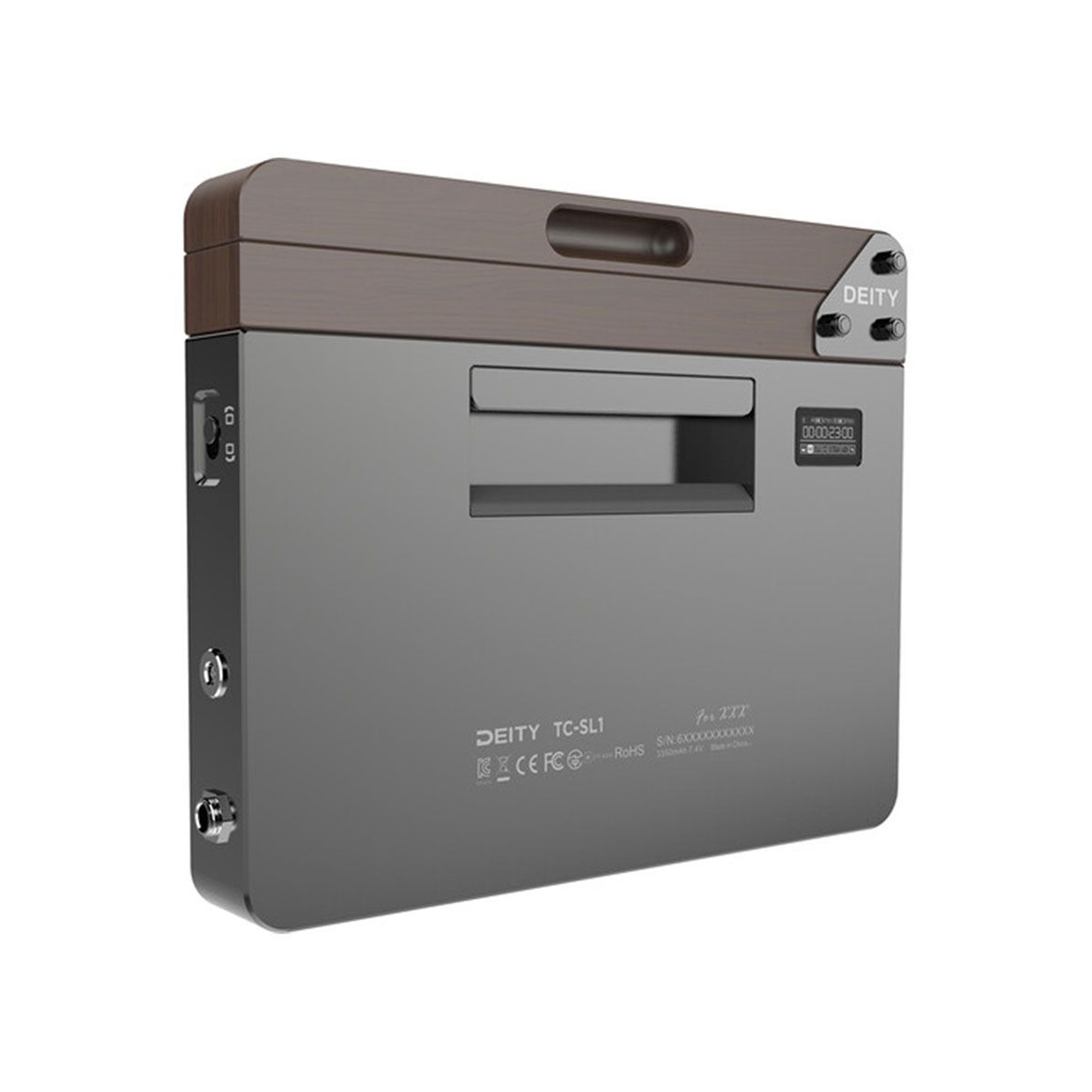

The TC-SL1 features a built-in handle to allow for one-handed operation. Inside the handle we’ve also added rubber grip pads for traction. The top clapper portion features a thumb notch making the process even more ergonomic.

The TC-SL1 is built out of a single piece of aluminum and milled on a robotic CNC machine. This gives it a premium build quality and durability that feels great in your hands. It also features smooth beveled edges which means it won’t scrape surfaces when you lay it down on set.

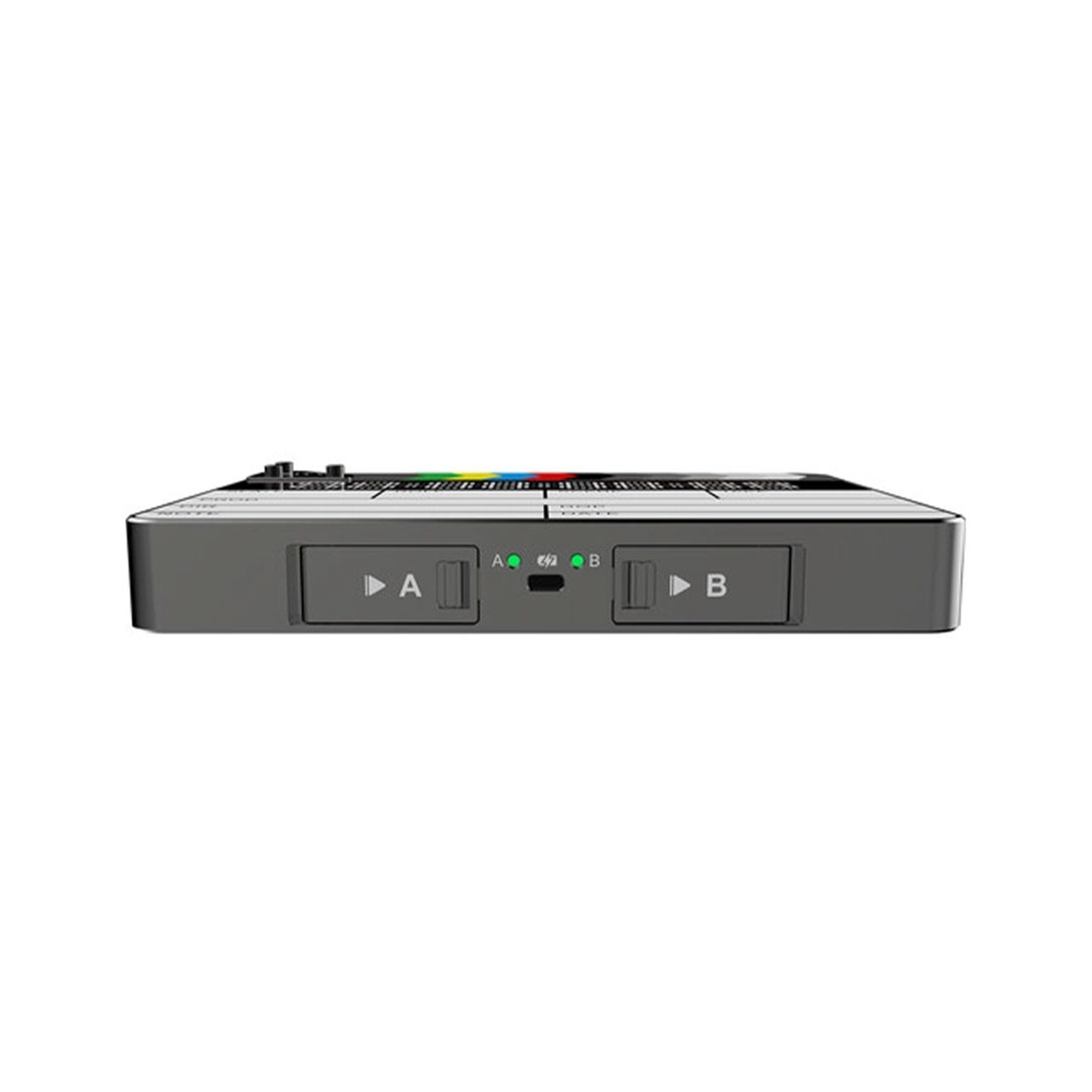

Our timecode slate features dual NP-F battery bays. This allows you to hot-swap the batteries (if you forget to charge them) without powering down your smart slate. And best yet, the onboard USB-C port doubles as a charging port.

The TC-SL1 is compatible with USB-C PD3.0, QC2.0, FCP, and AFC quick charging protocols. It is suggested to use a charger with a 15V 2A output to experience the fastest charging.

These aren’t your average NP-F550 batteries. Each pack is rated at 3350mAh (24.79Wh), which is 33% more capacity than the average NP-F550 battery. In designing these batteries, we also included under-voltage discharge protection, over-voltage protection, and short detection cutoff protection. Plus, their Deity yellow exterior shell helps make them easier to spot in the dark. These batteries will work with any device that is compatible with Sony L-Series batteries.

Deity NP-F550 Batteries for Sony L Series type
Clapperboard slates need to stand up against heavy use. That is why we selected Black Walnut wood sourced from a certified sustainable farm in Tennessee, USA for our wooden clapper.

Why Black Walnut?

Well, Black Walnut is an incredibly durable hardwood. It has excellent shock resistance and resists warping from heat and humidity.

Connect all your devices to your phone or Macbook laptop via Sidus Audio™️. With our app you can control your device’s settings, monitor their status, and sync all your units at once. Learn More


Timecode SMPTE
Front Screen LED Dot Matrix
Rear Screen 1″ OLED
Wireless Type 2.4G RF Sync PulseBluetooth 5.1LE
Wireless Range ≤ 30ft – 2.4G RF
≤ 250ft – BT 5.1LE
RF Wireless Channels 8
Timecode Accuracy ±0.5 ppm
Drift < 1 Frame/48Hrs
Frame Rates 23.98, 24, 25, 29,97, 29.97DF, 30
Timecode Ports 5-Pin Input/Output1/4″ TRS Output
Battery Life Up to 100Hrs
Battery Type NP-F550
Battery Capacity 6700mAh
Charging Port USB-C
Charging Time <3Hrs (15V 2A Charger)
Slate Dimensions 9.1” x 7.3” x 1.6”
Weight 2.5lbs
