DJI RS Focus Motor
£119.00 £99.17

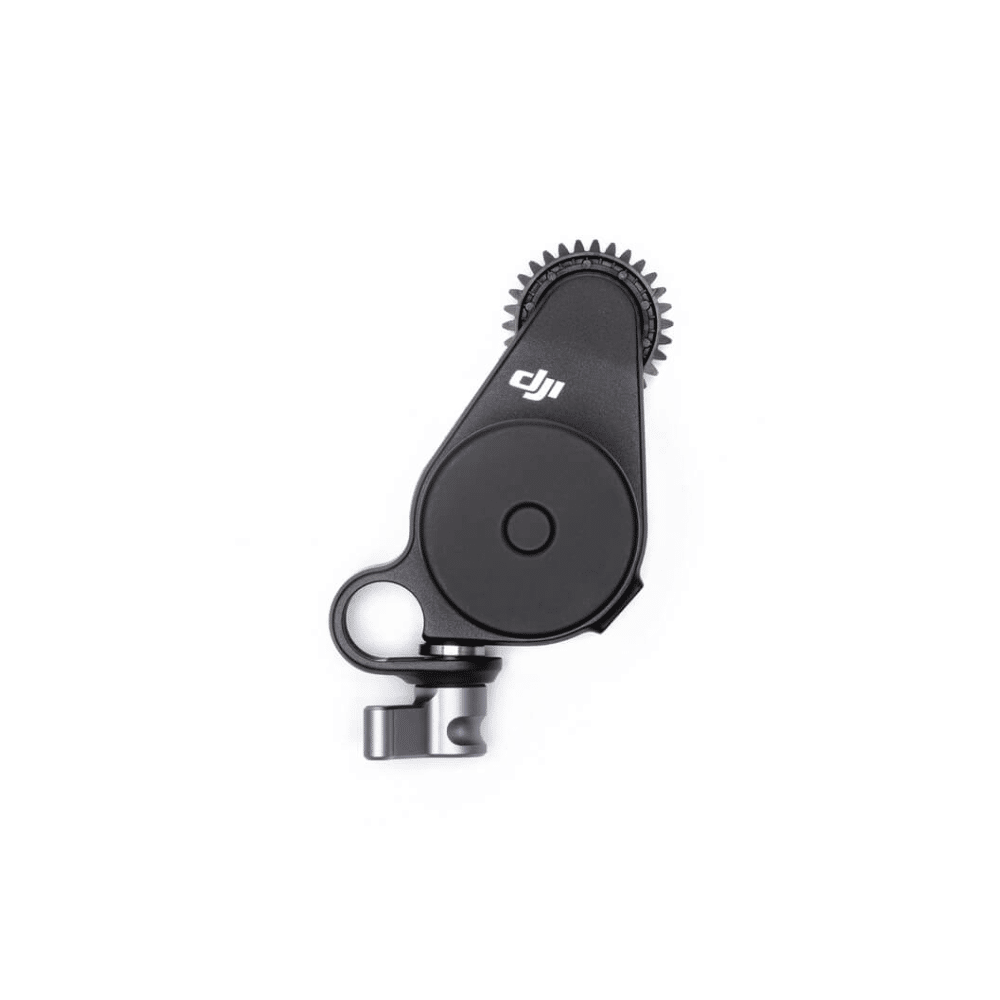

DJI RS Focus Motor
The next-generation Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.
Specification
| Structure: | |
| Weight: | 108 g |
| Dimensions: | 80×50×36 mm (L×W×H) |
| Rod: | 12 mm |
| Specifications: | |
| Max Torque: | 1.0 N·m (8 V) |
| Max Speed: | 180 rpm (8 V) |
| Electrical Properties: | |
| Free Current: | 50 mA (5 V) |
| Stall Current: | 2.8 A (8 V) |
| Operating Voltage: | 6 to 17.6 V |
| Noise: | 45 dB |
| Gear: | |
| Number of Teeth: | 30 |
| Module: | 0.8 |
| Operating Temperature: | -20° to 45° C (-4° to 113° F) |

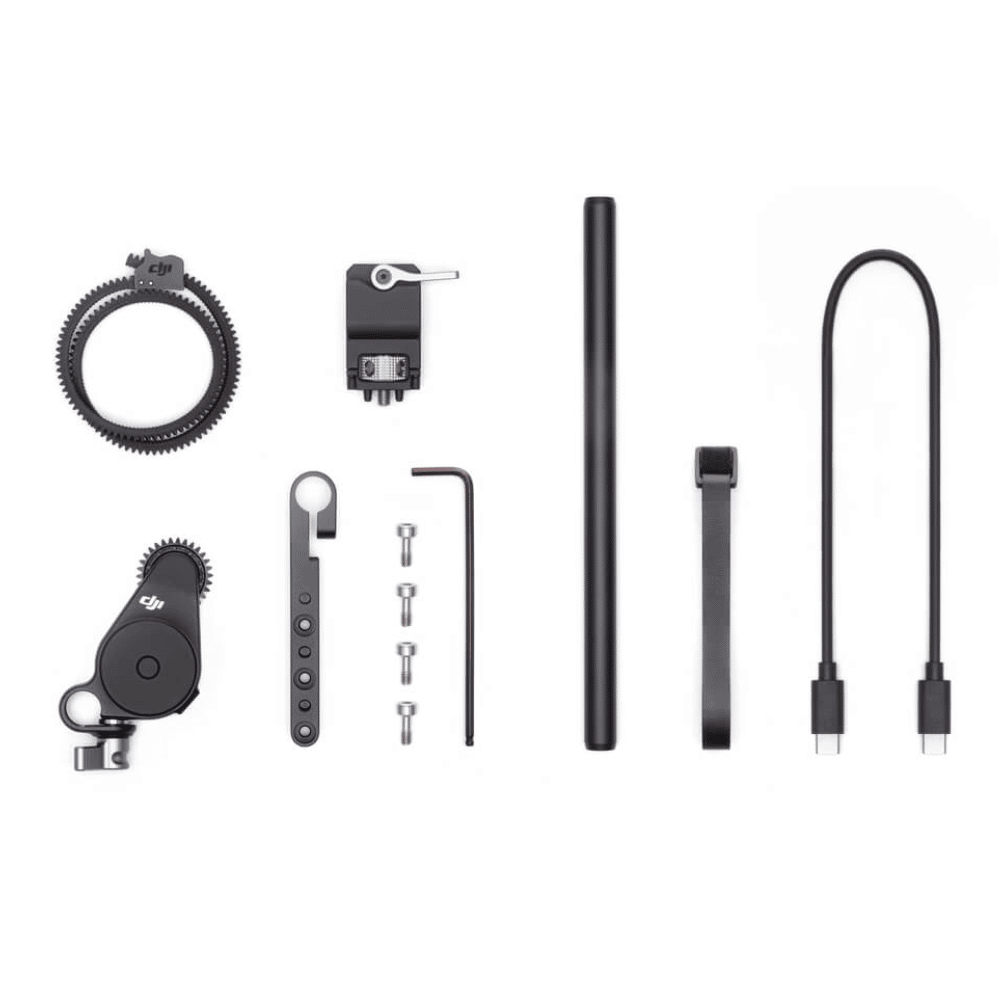

What's Included
- 1x Focus Motor (2022) × 1
- 1x Focus Motor Rod Mount Kit Combo × 1
- 1x Focus Gear Strip × 1
- 1x Multi-Camera Control Cable (USB-C, 30 cm) x 1
- 4x M4 Screw (10 mm) × 4
- 1x Allen Wrench (3 mm) × 1
- 1x Lens-Fastening Strap
