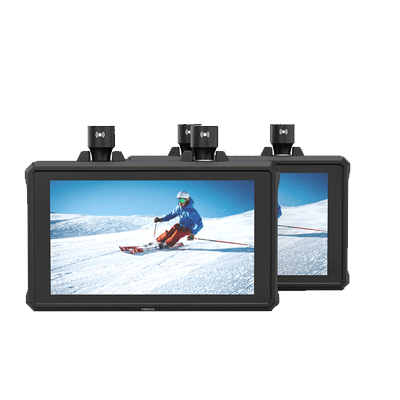

Hollyland Mars M1 Wireless Transceiver Monitor

Description

Hollyland Mars M1 Wireless Transceiver Monitor (9803) – an all-in-one transmitter, receiver, and monitor solution. You can switch to the state of the transmitter or receiver on the monitoring screen. Can be used together with the Mars Pro and 4K series to reduce the number of devices required for a more efficient shooting experience.

Features of this new Mars M1 model include:

450ft (150m) LOS Range and 0.08s Ultra-low Latency

The Mars M1 achieves an incredible LOS range of 450ft (150m) and ultra-low latency of 0.08s. *The LOS range of 450ft (150m) is based on interference-free laboratory measurements.

5.5″ Touch LCD with Professional Colour Calibration

Designed with a 5.5″ touch LCD featuring up to 1,000 nits of brightness. Professional colour calibration performed during manufacturing, and each screen is set up with 6500K as default color temperature, and multiple-level color temperature adjustments are available. The screen supports the Rec. 709 color gamut for excellent color rendition. Five selectable 3D LUT presets are available for transferring colors to the monitor. *The LUT files are stored on a USB-C flash drive which is formatted as FAT32 and can be easily transferred via its USB Type-C interface using UTG.

HDMI & SDI Dual Interfaces

Supports 4K/30fps HDMI input and output for expanded connectivity and compatibility. SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production/postproduction.

Multiple Auxiliary Functions for Preview and Monitoring

This model is featured with a variety of auxiliary functions, such as 4x zoom, exposure assist, focus assist, and waveform display, which increases shooting efficiency.

Smart Channel Scan and Selection

Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.

Optional Accessories for More Application Scenarios

The Mars M1 optional accessories are designed to enhance your shooting experience. The rosewood handle supports a one-handed grip. The wristband and halter strap allow you to hold the monitor with one hand and also secure it around your shoulder. The lens hood option greatly enhances the color saturation and lens protection.

Customized Appearance and Textured Design

The custom-designed capsule antennas spare you the time spent on repeated disassembly. The Mars M1 body shell is highly impact-resistant with a frosted texture and weighs a mere 13.5 oz. (380g).

Multiple Power Supply Options

Supports a wide range of DC power options—6V to 16V, NP-F batteries, USB Type-C chargers, and batteries with a D-Tap interface

Features

• 5.5″ Touch LCD
• 3D LUTs
• TX, RX, and Monitor — All in One
• 1000 Nits
• 4K/30fps
• 450ft (150m) LOS Range
• 0.08s – Low Latency
• Disassembly-free Antenna
