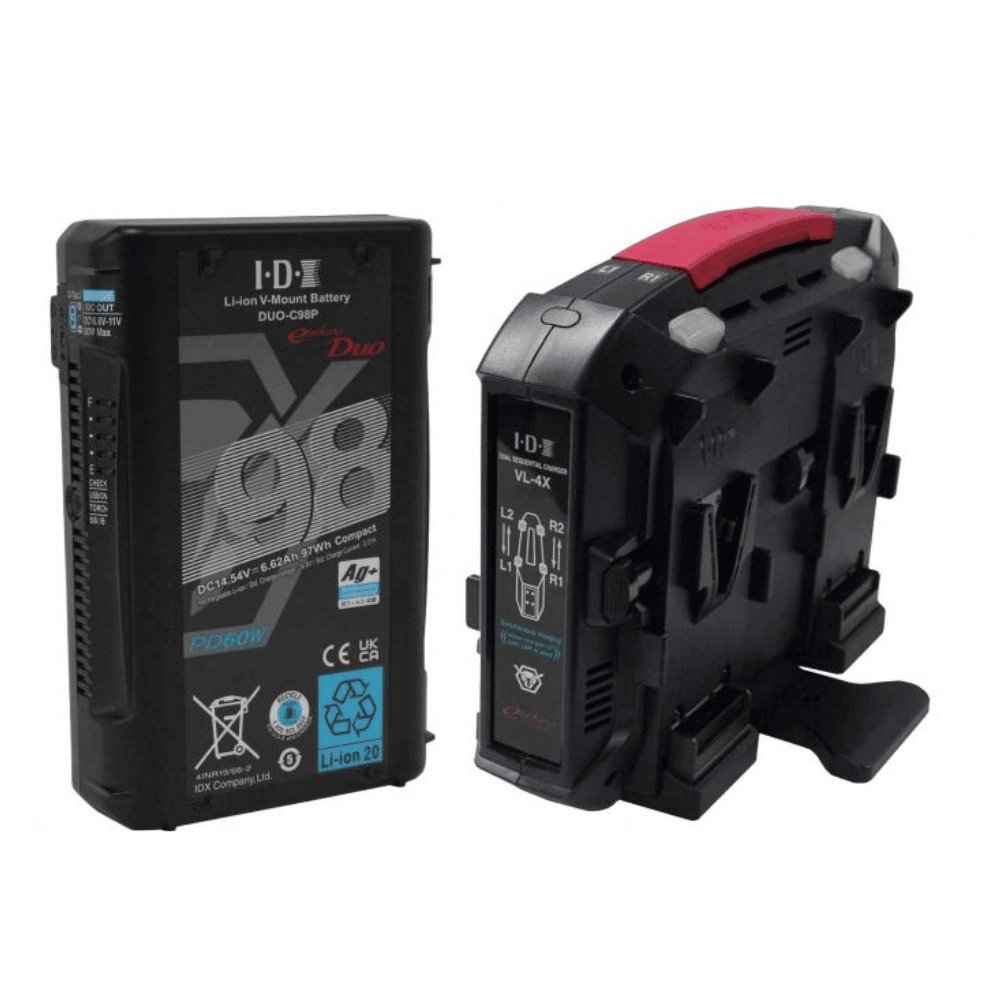

IDX DUO-C98P Batteries and VL-4X Charger Kit
- Brand: IDX
£1,560.00 £1,300.00
Order Now - Usually delivered in 2-4 weeks
SKU:
IDX-ED-CP98/4X
Categories: Batteries, Battery Chargers, Power Accessories
IDX DUO-C98P Batteries and VL-4X Charger Kit
The DUO-C98P is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs – perfect for handheld gimbal and aerial setups. The DUO-C98P comes equipped with two built-in D-Taps and a single built-in USB-C input/output to power ancillary accessories and also to charge battery.
Key Features
- 97Wh capacity
- 1.5 inches in depth
- Compact high capacity IATA friendly(<100Wh) Lithium Ion battery (1.37lbs)
- Capable of handling up to 10A loads
- (1) 80W D-Tap Advanced output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
- (1) 80W D-Tap output (unregulated)
- (1) USB-C PD max. input/output 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A) USB-C output (auto shut off after 30 minutes of inactivity)
- 5 Power Indicator LEDs (displaying 10% increments)
- Battery circuit protection ensures the DUO-C98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
- The highest grade Lithium Ion cells are used to ensure the DUO-C98 is one of the most reliable batteries on the market
- 11V auto cut-off prevents over-discharging (while a load is applied)
- Unrestricted amount of spare DUO-C98 batteries allowed for carry-on airline baggage under
- IATA regulations
- Fully compatible with all ENDURA V-Mount chargers and accessories
- Environmentally friendly and recyclable
- Antiviral and antimicrobial body for peach of mind
IDX VL-4X 4-Channel V-Mount Charger with Power Supply
The VL-4X is a slim, lightweight, affordable 4-channel charger. Dual Simultaneous/Sequential feature charges up to 4 batteries total with any 2 simultaneously. The included AC adapter doubles as a 90W DC power supply.
Features:
- 4 channel Dual Simultaneous/Sequential Charger. (The batteries are charged simultaneously when installed on opposite sides. Also, the batteries are charged sequentially when installed on the same side.)
- Included AC adapter can also be used as a 90W (15V, 6A) DC power supply.
- Compact, lightweight, and travel friendly (under 2.5lbs)
- Advanced fanless design
- Integrated locking support stand
- Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The VL-4X will automatically stop charging should any battery reach an over voltage condition.
- Power Base mode not supported
Specification
DUO-C98P Batteries |
|
Battery Capacity | 97Wh (14.54V,6.62Ah) |
Max.Output Voltage | 16.8V DC |
Nominal Voltage | 14.54V DC |
Maximum Discharge Current | 10.5A ‡ |
D-Tap | 80W each |
USB | max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A) |
End Voltage | 11V |
Battery Protection | Reverse charge, Over charge, Over discharge, Over current, Temperature protection |
Ambient Temperature | To charge: 0°C ~ 40°C (10°C ~ 30°C recommended) To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended) To store: -20°C ~ 50°C (one month) |
Dimensions | 95(W)x146(H)x39(D)mm |
Weight | 640 grams approx. |
