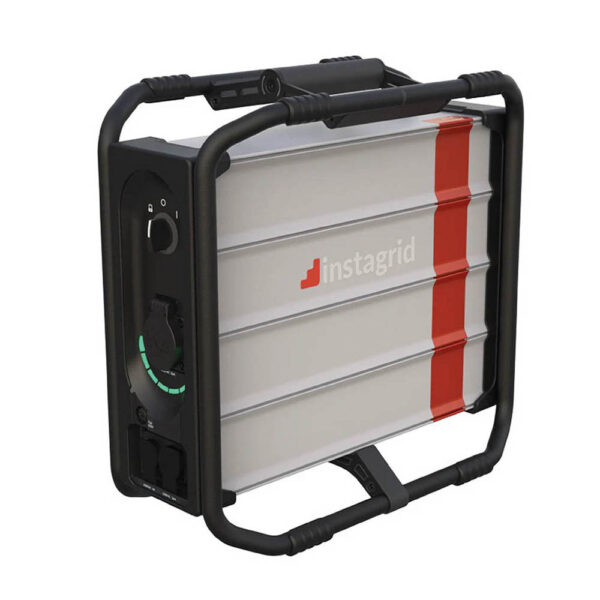

Instagrid ONE Max Portable Power Station
Brand: INSTAGRID£3,831.60 £3,193.00 Ex. VAT
Only 1 left in stock
Description
Instagrid ONE Max Portable Power Station (901-00004) is a portable battery power supply that is designed specifically for professional applications, providing a power socket without constraints, wherever it is required. Lightweight, robust, powerful and flexible. The Instagrid ONE Max is a portable, lithium-ion-cell energy storage system with 230 V AC inlet and outlets. The main storage unit with a rated energy content of 2,100 Wh is split into independent elements with an energy content of less than 100 Wh.
There is also a starter battery, which has a special role in starting the Instagrid ONE max; The cells in lithium-ion batteries are sealed so as to be gas-tight and harmless, as long as the manufacturer’s instructions are followed during use and handling. The Instagrid ONE max offers the option of communication with a smartphone/tablet or a PC via an in-built Bluetooth interface. Weighing only 20kg and with an output of 3.6KW, the Instagrid ONE provides fast and convenient power.
With a long runtime of 2.1 kWh, it can power your entire workday, making it ideal for a wide range of applications, from construction tools to catering equipment to film and event equipment. It is designed and manufactured in Germany to the highest quality standards, ensuring robustness and efficiency even in the toughest conditions. Plus, with its fast charging time of just 2.5 hours, you can charge it even in the middle of your workday.
Instagrid has experimented with Instagrid ONE version, testing various types of equipment. Here are some examples of what an Instagrid ONE unit can do with just a single charge:
- Profoto Pro-10 (4,800 W): 2,700 flashes at full power
- Arri M18 (1,800 W): 60 minutes
- Aputure 1,200 D Pro (1,200 W): 1 hour and 45 minutes
- Digital kit, consisting of a Macbook Pro (96 W), a Monitor Eizo 27’’ (32 W), and a Camera Canon R5 (45 W): 11 hours and 20 minutes
Summary
- Instagrid ONE Max is completely silent
- 2074Wh Capacity Lithium-Ion Battery
- UK 13A Socket & powerCON TRUE1 Output
- powerCON TRUE1 Input
- Long Runtime of 2.1kWh
- 3600W Continuous Power
- 18000W Peak Power
- Fast Charging in 2.5 hours
- Weight: 20kg
Comes With
- 1x Instagrid ONE max
- 1x Charging Cable
Additional information
| BRAND | INSTAGRID |
|---|---|
| Battery Storage Capacity | 2.1kWh |
| Battery Power Output | 3.6kW |
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| ELECTRIC | |
| Output voltage | 230 V (AC) / 50 Hz |
| Rated output power | 3.600 W (16 A) |
| Available energy | 2,1 kWh |
| Charge duration | < 3 h up to 100% |
| Rated power | 500-1.000 W (4 A) |
| On (idle) | 150 h |
| Storage | > 3 years (switch in “off” or |
| “transport” mode) | |
| Output socket | CEE 7/3 Socket (16 A) |
| Power outlet | Neutrik powerCON TRUE1 |
| Mode of operation: Charging | |
| Input voltage | 120-240VAC / 50-60Hz |
| Rated powe | r 500-1000W (4A) |
| Power consumption during complete charging process | <0,5W |
| Charge duration | < 3h up to 100% |
| Operating temperature | 0°C up to 45°C |
| General | |
| Battery capacity | 2.074 Wh |
| Protection class | Class II / double insulated |
| Storage | > 3 years |
| PHYSICAL | |
| Weight | 20 kg |
| Dimensions | 420 x 210 x 420 mm |
| Outer case | Recycled aluminium |
| Electric Connections | |
| Output socket | CEE 7/3 Socket (16A) |
| Output socket | Neutrik powerCON TRUE1 |
| Load input | Neutrik powerCON TRUE1 |
| Input fuse | T5A L 250V |
| PEAK POWER | |
| 150% boost (>500 sec) | 5.400 W (24 A) |
| 200% boost (>100 sec) | 7.200 W (32 A) |
| 250% boost (>25 sec) | 9.000 W (40 A) |
| Peak power | 18.000 W (80 A) |
| ENVIRONMENT | |
| IP class | IP54+ |
| Noise emissions | < 10 dB(A) |
| TEMPERATURE | |
| Discharging operating temperature | -20°C up |
| to 60°C | |
| Charging operating temperature | 0°C up to |
| 45°C | |
