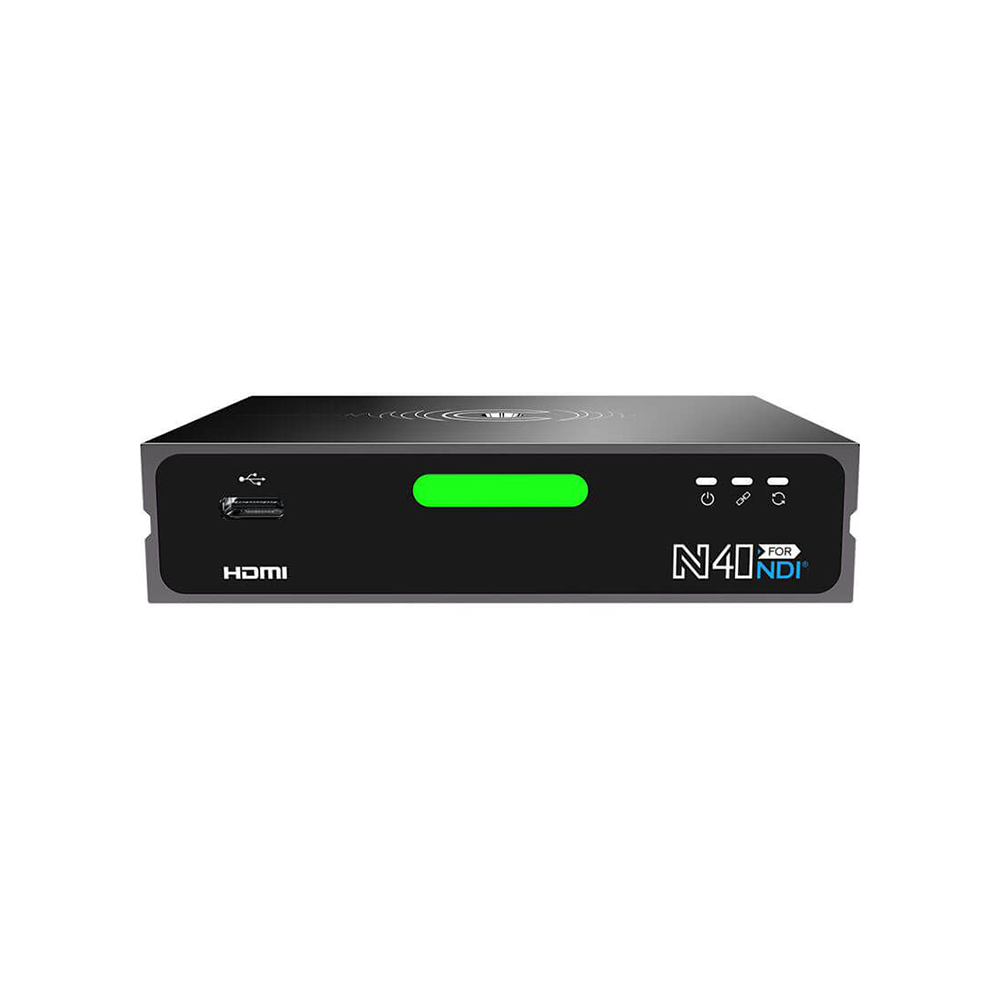

Kiloview 4Kp60 UHD HDMI/NDI Bi-Directional Converter N40
£768.00 £640.00
- 4K 60P UHD HDMI/NDI Bi-Directional Converter
- Bi-directional conversion, up-to 4K 60P NDI encoding / decodingÂ
- 1 x HDMI input, 1 x HDMI loop-through or decoding output; HDMI video input / output with embedded audio
- Compatible with Kiloview IMS software for device and source management
- Wide DC input rangefrom 5V to 18V: easily powered by USB, power bank or camera battery, it can also be Powered over Ethernet (PoE)
- Optional control cable supported which can control PTZ over Visca / Visca over IP / Pelco etc.
- Compact Design
- Threaded Screw Camera Mount
KILOVIEW N40 FOR NDI 4K HDMI 2.0 NDI ENCODER/DECODER
Kiloview N40 4K HDMI/NDI converter is a bi-directional converter that supports 4K HDMI video input (encoder) to full NDI with 4K HDMI loop-through for view on monitor, or 4K HDMI video output (decoder) from full NDI. Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio mic in/out, multi-channel audio, intercom functions, the N40 is your best choice to get access to the fabulous NDI world!

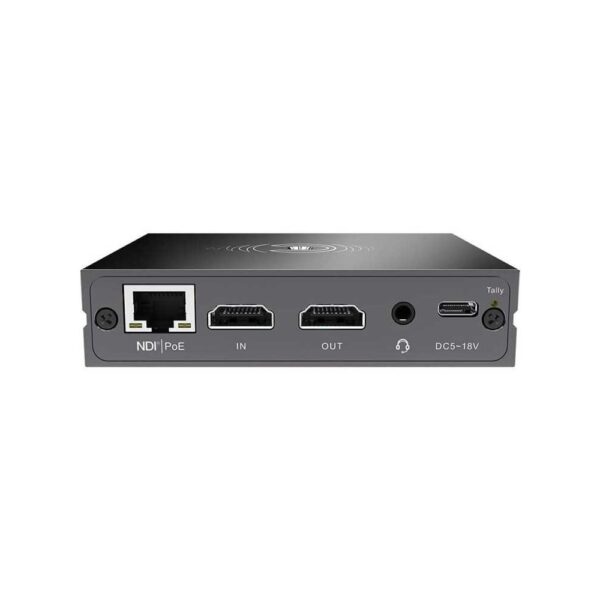

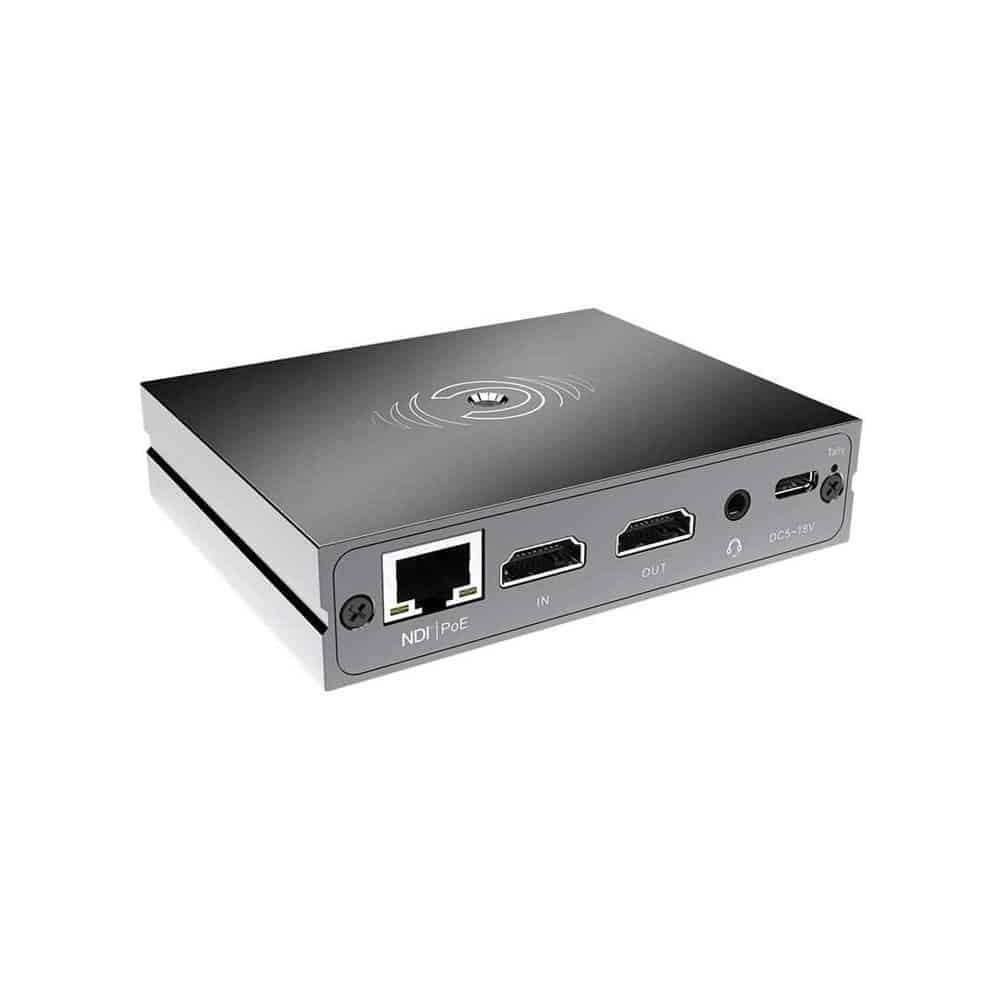

It features an HDMI2.0 input and HDMI2.0 loop through for view on the monitor while NDI streaming, or HDMI 2.0 output while decoding. A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has the 3.5mm audio input/output which supports intercom (a Kiloview software required). Kiloview N40 for NDI has a wide DC input range from 5V to 18V, so it can be easily powered by USB, power bank or camera battery, it can also be powered over Ethernet (PoE). A threaded screw camera mount is provided for your mounting on a camera. PTZ interface by USB adapter is supported.
The N40 for NDI is also compatible with Kiloview IMS software to help with the device management, NDI source management, remote configuration and upgrading, etc.
Why NDI?
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.
NDI Webcam Input
Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI® webcam input tool.
Real 4K, Really Professional
With HDMI2.0 interface, It supports real 4Kp60 video input and convert it to full NDI and loop through for monitoring, at the same time it supports Full NDI to 4K HDMI output. It’s a real 4K NDI converter for high image quality.
Both NDI encoder and NDI decoder
This tiny device (100*80*28mm) can do both NDI encoding and decoding, so you get two for the price of one. Changing the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.
*N40’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
Audio Intercom
Kiloview N40 supports 3.5mm analog audio mic in/out or embedded audio. It also supports voice intercom by USB headset between devices directly, or with Kiloview Intercom server.
Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
Seamless Switching without Lagging
In decoding mode, with Kiloview’s unique technology, there will be no lag when switching the output NDI videos.
Control with USB Keypad
In decoder mode, you can preset the NDI sources from number 0-9. When your keypad is ready, you can easily choose the output source with a single press.
Or you can even use the USB Keypad to control a PTZ camera – the cheapest PTZ Keyboard you can get.
PTZ Control and Big-sized Tally
Kiloview N40 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required
N40 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.
Power and Data
With PoE, the N40 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.
Additional information
| BRAND | KILOVIEW |
|---|---|
| MPN | KW-KILO-N40 |
