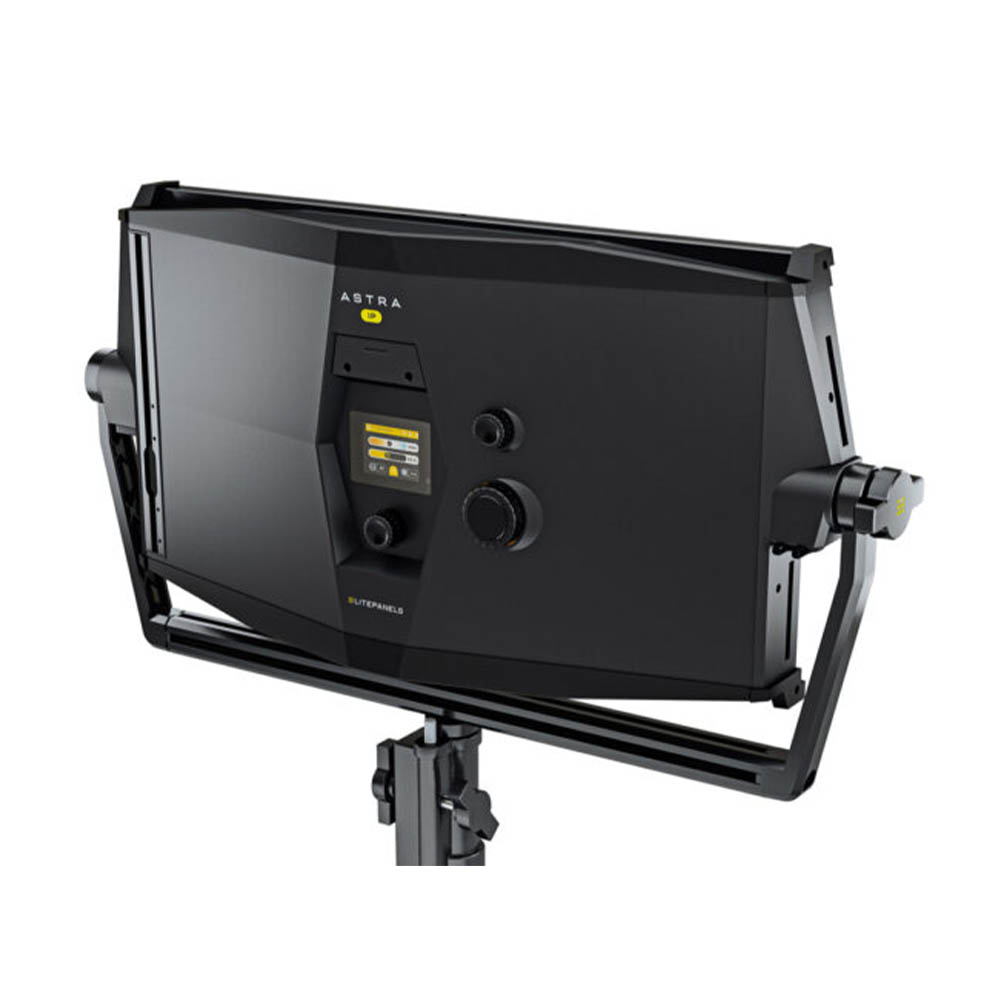

Litepanels Astra IP 2×1 Bi-Color LED Panel (936-2201) is the industry’s best-selling Bi-Color LED panel and has evolved. Astra IP is tough and water-resistant, delivering intense output in lightweight 1×1, half-size and 2×1 fixtures with fast set up for high-performance broadcast lighting in demanding environments.
Power & Punch
Lighting for even the brightest location. With ultra-efficient LEDs and a tight beam angle, Astra IP produces output with impact. Command powerful, flattering, and accurate white light at any intensity, with or without diffusion. Adjust from 2,700K to 6,500K with instant confirmation on the clear LCD screen to match multiple fixtures with confidence.
Ready for Action
From the studio to the street, Astra IP always performs. Rated IP65, Astra IP defies rain, dust, or snow, for seamless operation, whatever the weather. Built tough with an integrated power supply, and optional Gold Mount, V-Mount and BP-U battery plates, Astra IP is the fast fixture that never backs down in any conditions.
Astra IP 2×1
Astra IP 2×1 delivers practical and high-quality white light for indoor and outdoor productions. The powerful 5,500 lux output of Astra IP 2×1 at 10ft/3m provides flexibility for diffusion or positioning at a distance. The optional Astra IP DMX module allows for precise control in a grid, while its IP65 rating and low 250W power draw allow use in tough outdoor conditions.
Features
- Bi-Color 2×1 LED panel (2,700K to 6,500K)
- Built tough: IP65-rated Bi-Color panel with 3-year warranty
- Powerful performance: High-output, intense beam
- True to life: Accurate color, with no shift at any intensity
- Control with confidence: Dual-dial system with LCD screen information
- Quick setup: Lightweight, designed for mounted or handheld operation
- Off-grid ready: Optional weatherproof battery brackets
- Control options: Integrated Bluetooth for app control. Optional Astra IP DMX module
- Customizable: Diffusion panel included with optional accessories
Comes With
- x1 Astra IP 2×1 (Standard Yoke, UK Power Cable)
- x1 Astra IP 2×1 Diffuser Medium – 937-0024
Additional information
BRAND | LITEPANELS |
---|
Specification
Optical | |
LED Panel | Bi-Colour |
Beam Angle | 30° |
Colour Temperature Range | 2700°-6500°K |
Daylight (5600°K) lux @10ft/3m | 5500 (No diff) |
Tungsten (3200°K) lux @10ft/3m | 5200 (No diff) |
CRI Average | 95 |
TCLI Average | 95 |
Interchangable Diffusers | Domed (not included) Medium (included) |
Optics | 30° custom TIR lens |
Operational | |
Lighting Control Modes | CCT/FX with LCD menu control |
Preset Options | Preset CCT modes with quick select Customizable user presets with quick select |
Dimming Control | Constant Current 0-100% Continuous (flicker free) |
Remote Control Options | Bluetooth [integrated], DMX, RDM [requires separate module] |
Fan Control | Yes |
USB Updates | Yes |
Ambient Temp Operation | -4° to 113° F / – 20° to + 45° C |
Estimated LED lifetime | 50,000+ hrs |
Mechanical | |
Versions | Manual |
Weight | 17.2lbs / 7.8kg (including yoke and power supply) |
Mounting Method | 28mm Junior Pin |
Dimensions (without yoke) | |
Height | 12.3″ / 31.3cm |
Width | 24.9″ / 63.2cm |
Depth | 4.8″ / 12.3cm |
Dimensions (with yoke) | |
Height | 16.8″ / 42.6cm |
Width | 27″ / 68.7cm |
Depth | 4.8″ / 12.3cm |
Electrical | |
Nominal Power Draw | 250W |
Power Supply | Internal |
Mains Input | PowerCON True 1, 100-240 VAC / 50-60Hz |
DC Input | 12-30V |
IP Rating | IP65 |
