LitePanels Gemini 2 x 1 Hard RGBWW LED Panel Quad Array Light Kit (UK Power Cables)

£21,840.00 £18,200.00

Order Now - Usually delivered in 2-4 weeks

SKU: LP-940-2203 Categories: ,

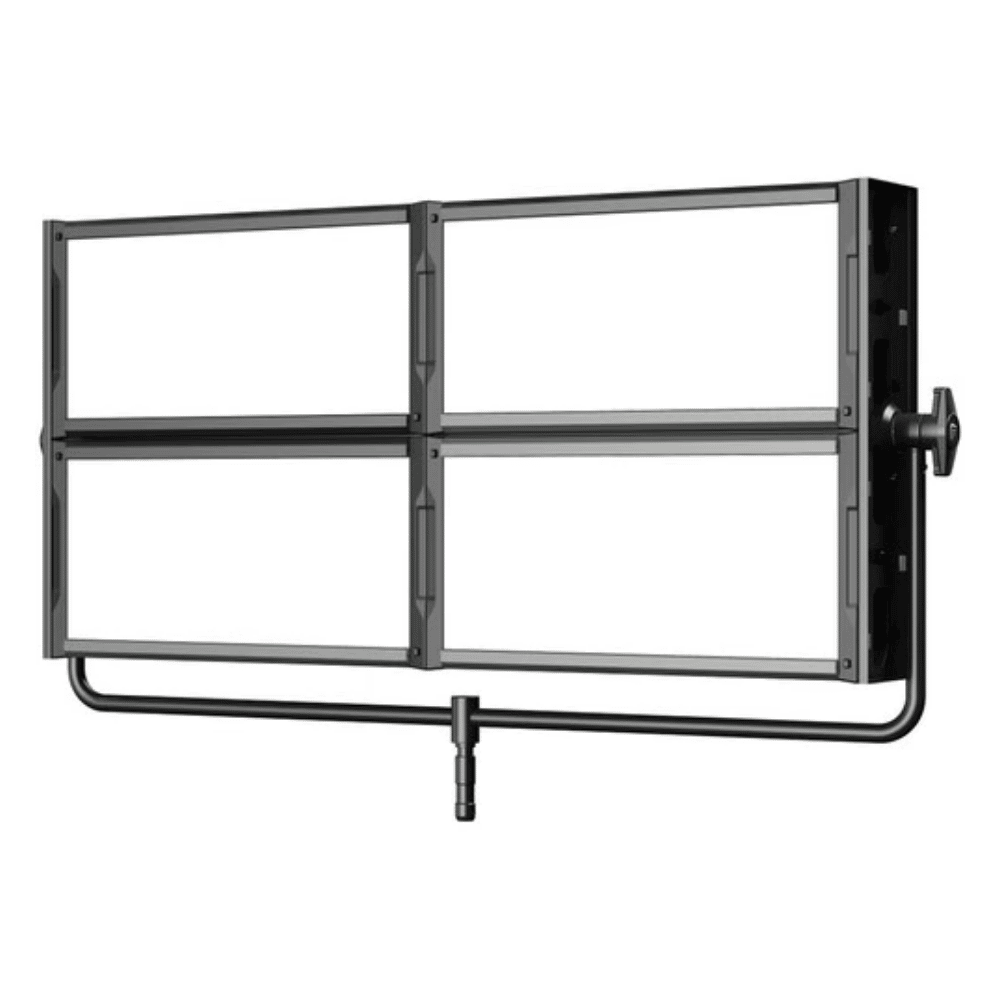

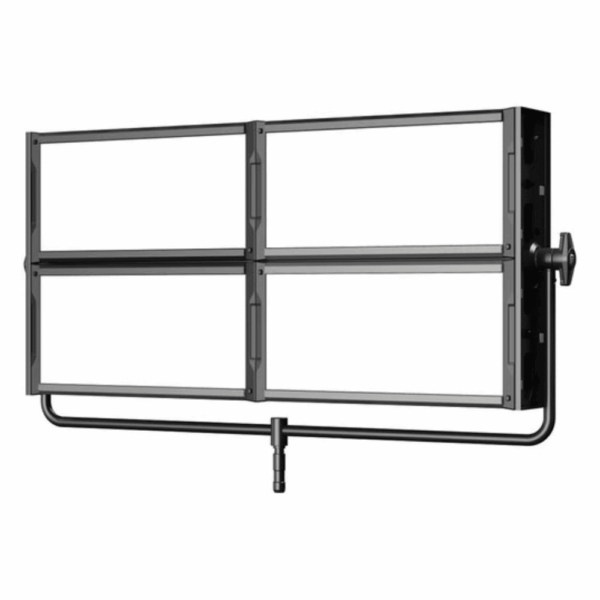

LitePanels Gemini 2 x 1 Hard RGBWW LED Panel Quad Array Light Kit (UK Power Cables)

This Gemini 2×1 Hard RGBWW LED Panel Quad Array Light Kit from Litepanels includes four Gemini 2×1 Hard RGBWW LED Panels with UK power cables, a dual yoke, three AC power-thru cables, three RJ45 connector cables, and mounting hardware to support four Gemini fixtures. The kit provides exceptional power and versatility in a stacked configuration for use as a single large light source measuring approximately 51 x 25″. A steel 1-1/8″ Junior pin is also included for mounting the kit to a heavy-duty light stand

Providing high-quality cinematic lighting features in a lightweight and easy-to-use fixture, this Gemini 2×1 Hard RGBWW LED Panel from Litepanels offers a high light output of 23,000 lux at 9.8′ with a color temperature range of 2700 to 10,000K, enabling this panel to accurately match both tungsten and daylight light sources. The 0 to 100% flicker-free dimming lets you adjust the light output, and full plus/minus green color correction control and a high CRI of 95 ensure color accuracy. Full RGBWW color gamut mixing and a built-in HSI color mode enable full-color control over hue, saturation, and intensity. The panel provides a gel mode with up to 300 different colored gels to choose from, and an effects mode with 11 unique special effects. All of these adjustments can be made locally on the unit or remotely via a console, and there’s even the option of wireless operation via DMX, RDM, and CRMX protocols.

This version of the Gemini ships with a standard yoke and a UK power cable.

  • Powerful 2×1 LED light panel featuring an extremely high output of 23,000 lux at 9.8′
  • CCT mode for bi-color operation with an adjustment range of 2700 to 10,000K
  • 0 to 100% flicker-free dimming at any frame rate or shutter angle
  • Full plus/minus green color correction and high CRI of 95 ensures color accuracy
  • 6 preset CCT modes with quick select buttons
  • 6 customizable user presets with quick select buttons
  • HSI color mode enables full color control over hue, saturation, and intensity
  • Gel mode with 300 gels to choose from
  • Effects mode provides 11 unique special effects
  • Full RGBWW color gamut mixing
  • Integrated DMX, RDM, and CRMX
  • LCD screen displays vital settings and status
  • Yoke with 5/8″ Junior pin connector for easy mounting and positioning
  • Universal multi-voltage power supply operates on current from 100-240 VAC
  • Compatible with optional 26-33 VDC batteries when mains power is unavailable
  • USB port for firmware updates

Additional information

BRAND

LITEPANELS

MPN

LP-940-2203

Specification

  • Lumens 23000 (at 5600K)
  • Photometrics 20° at 5600K:
  • 2136.7 fc / 23,000 Lux at 9.8′ / 3 m
  • 20° at 3200K:
  • 1858 fc / 20,000 Lux at 9.8′ / 3 m
  • Color Temperature 2700 to 10,000K
  • Color Modes RGBWW
  • Color Accuracy Standard CRI 95
  • TLCI 97
  • Cooling System Fan
  • Dimming Yes, 0 to 100% (Continuous)
  • Display LCD
  • Housing Material Aluminum
  • Expected Lamp Life 1 to 35000 Hours
  • Beam Angle 20 to 20° Unmodified
  • Fixture Dimensions 25.0 x 12.0 x 6.9″ / 63.5 x 30.5 x 17.5 cm
  • 29.4 x 20.8 x 6.9″ / 74.7 x 52.8 x 17.5 cm (Including Yoke)
  • Fixture Weight 25.3 lb / 11.5 kg
  • Connectors
  • Power Input Connection powerCON TRUE1
  • DMX Connection XLR 5-Pin
  • Mounting
  • Fixture Mount 5/8″ Receiver
  • Mount via Included Adapter 5/8″ Receiver
  • Yoke
  • Yoke Type Yoke/Bracket
  • Remote Operation
  • Remote Control Type CRMX, DMX, Wireless DMX
  • Number of DMX Channel Modes 512
  • Power
  • AC Input Power 100 to 240 VAC, 50 / 60 Hz
  • DC Input Power 26 to 33 VDC
  • Power Source AC Adapter
  • Max Power Consumption 500 W
  • PhysicalIP Rating IP20
  • Storage
  • Temperature -4 to 113°F / -20 to 45°
