Manfrotto 504X Alu Fast Twin Tripod System

£766.00 Ex. VAT £919.20 Inc. Vat

Only 1 left in stock

SKU: MVK504XTWINFA Categories: ,

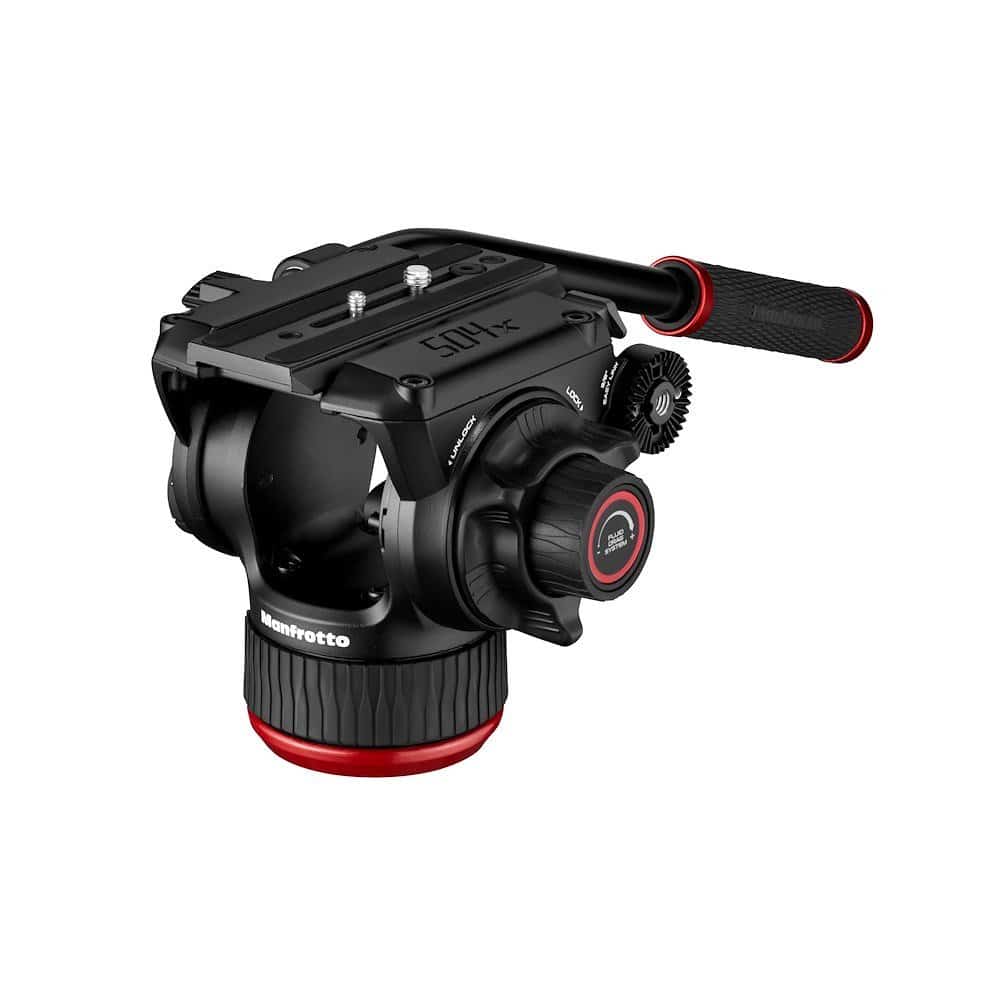

Capturing smooth reliable footage every time is essential for any filmmaker, the new Manfrotto 504X head will give you unrivalled stability and smoothness time after time. 504X fluid video head is the evolution of the successful 504HD. This is the more compact and lighter version that finally comes with flat base, developed to satisfy videographers’ needs.

New eye catching design with flat base

Perfect balance of design and performance for optimum balance of strength and size. The flat base ensures versatility.

4 steps CBS and fluidity on both PAN & TILT powered by new fluid technology

4 steps counterbalance system up to 6,5 kg/14,3 lb at 55 mm/2,2 in C.O.G ensures quick set up and optimal performance. Extremely smooth movements are guaranteed by the fluidity function on PAN & TILT.

Great payload

The head has a maximum payload up to 12 kg / 26,5 lb.

Size and portability

More compact and lighter the never with feature an alluminum design ensuring it will last you a life time.

New easy link connectors

Comes with Manfrotto anti rotation technology and ARRI pin. The pan bar attachments on both left and right sides of the head give maximum flexibility. On the left side a cap, that cover 3/8” easy link connector, to avoid cutting during the use.

4 steps CBS

The head offers unrivalled stability and allows smooth shooting thanks to 4-steps counterbalance System up to 6,5 kg/14,3 lbat 55 mm/2,2 in C.O.G. STEP 0: off STEP 1: 2,2 kg / 4,8 lb STEP 2: 4,4 kg / 9,7 lb STEP 3: 6,5 kg / 14,3 lb

Flat base

to have more options for shooting on sliders, jibs or other accessories.

Sliding quick release plate

Sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment, keeping video equipment stability and balance.

New fluid technology

The variable continuous fluid drag system is powered by a new fluid technology, which sets a new level of performance in the Manfrotto range, boosting the smoothest and judder-free pan and tilt movements.


Independent brakes on TILT and PAN axes. The 504X increases the capability of keeping the heavy equipment safe, stable and in position.

Bubble level

The back bubble level lets you level the heads even in low light conditions.

MVTTWINFA Alu Fast Twin Tripod

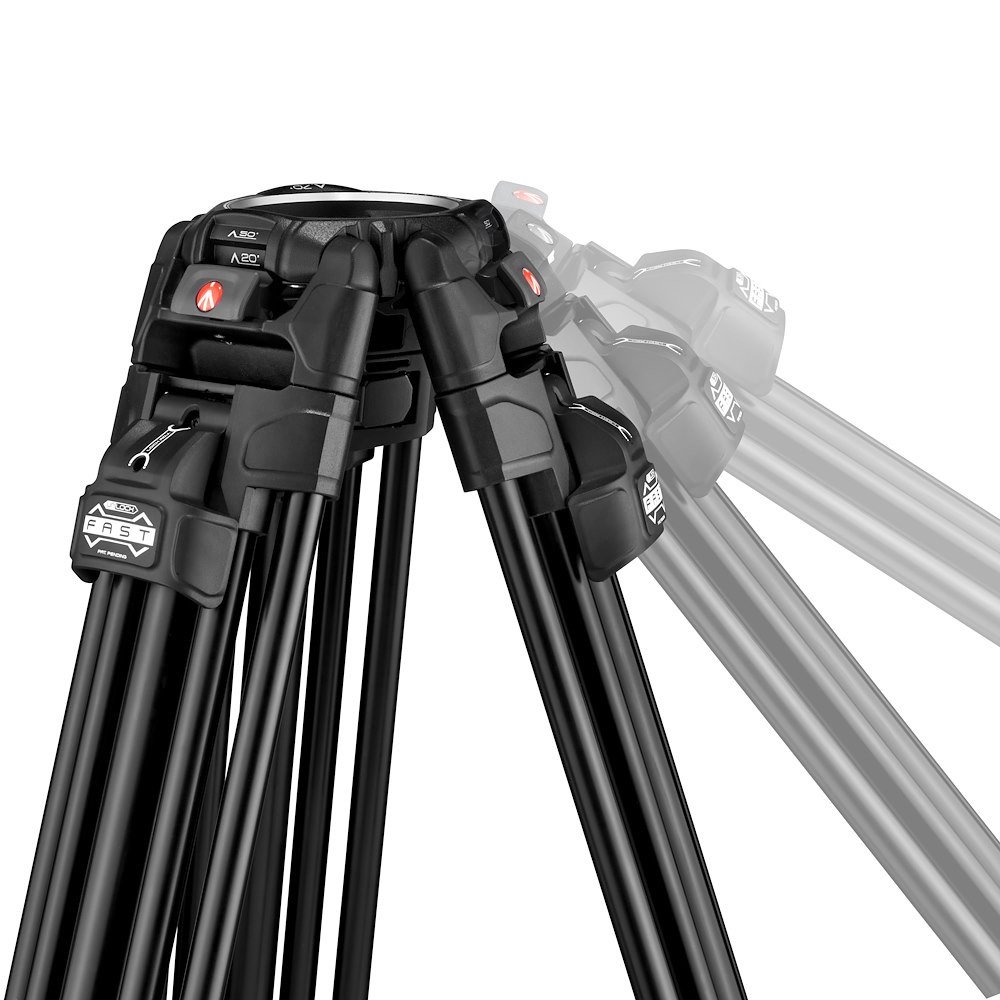

The 645 FTT Fast Twin Alu Tripod features a double tubing and Ultra L-Lock lever technology for the most robust support ever. It also features a middle spreader lock – however, the 3-angle selectors make the use of a spreader a matter of optional preference.

This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

Moreover, it is compatible with the 2 in 1 ground and middle telescopic spreader (which is sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.
