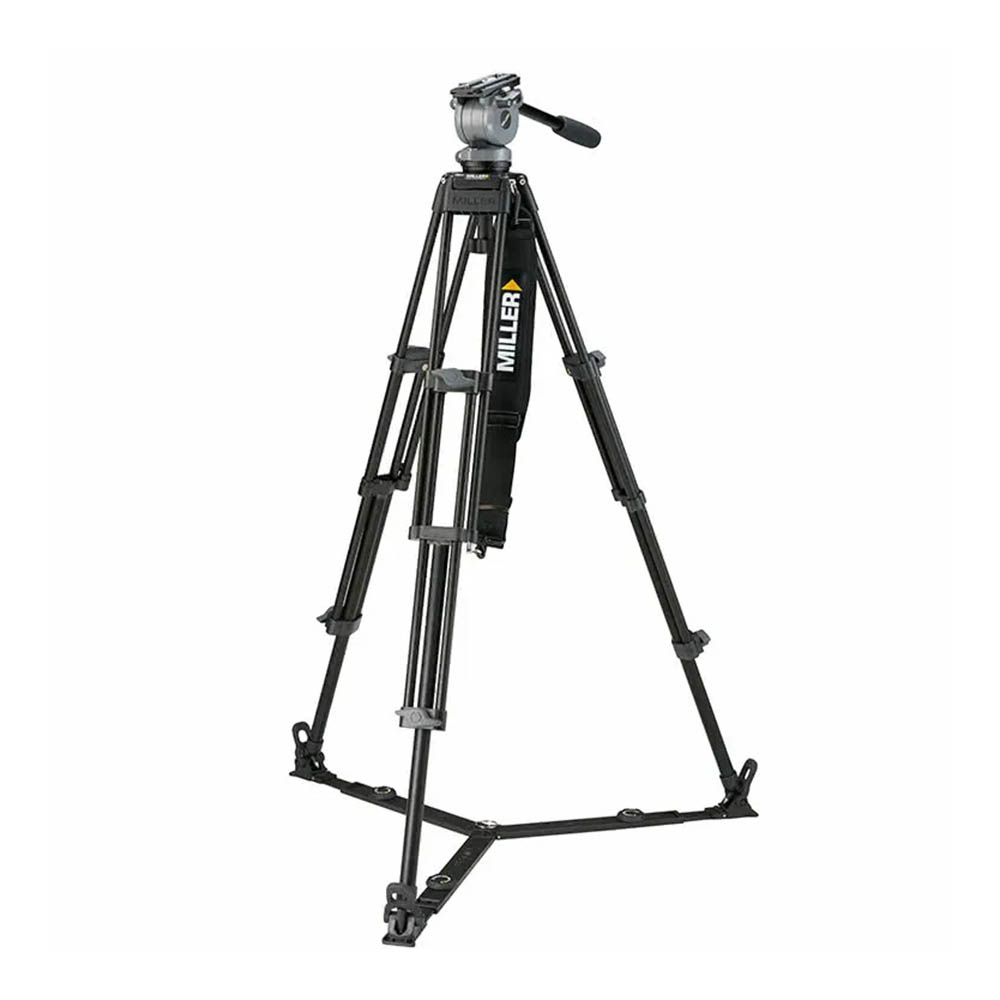

Miller 848 DS20 2-Stage Tripod System
£1,378.80£1,598.40 £1,149.00 (-14%)
Miller 848 DS20 2-Stage Tripod System (848) provides two stageheight versatility in a solid, highly reliable support package providing users with a cost-effective support option of full broadcast performance.

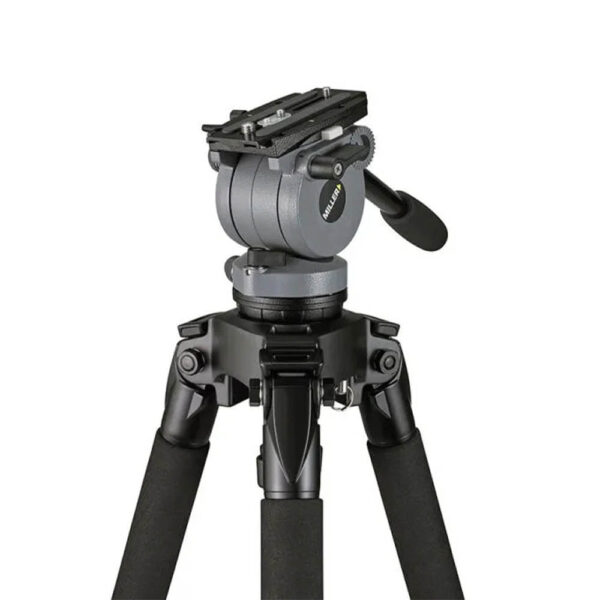

The DS20 fluid head provides a perfect lightweight solution for those who want a smaller fluid head with a greater capacity for payloads up to 10kg (22lbs). Whether you are in the field or configured for small studio use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.
The DS20 is matched with the 2-stage Toggle alloy tripod and on-ground spreader to give a large height range 527-1697mm (20.7-66.8″), positive leg toggle locks and quick pack down. Whatever your application the results achieved by using the 848, DS20/Toggle system will impress your clients.
Summary
- Tripod Head Type: Fluid Head
- Max Payload: 10kg
- Max Height Group: 65-70 inch
- Min Height Group: 20-30 inch
- Leg Section: 3 Section
- Spreader Type: Ground
- Head Fitting: 75mm
- 1x DS20 Fluid Head
- 1x Toggle 75 2-stage tripod (alloy)
- 1x On Ground Spreader
- 1x Pan Handle – fixed with clamp
- 1x Shoulder Strap (padded)

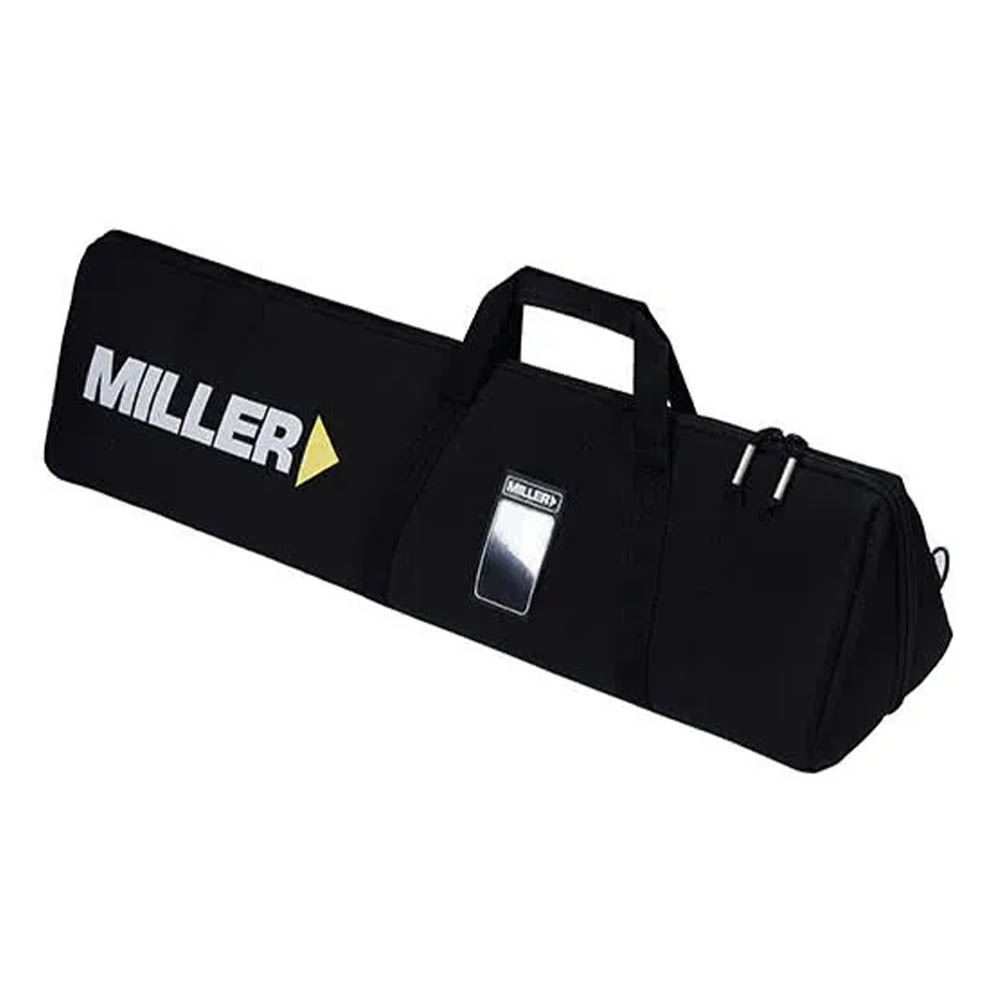

- 1x Softcase 2-stage
Additional information
| BRAND | MILLER |
|---|
Specification
| Camera Platform |
Sliding camera plate |
|---|---|
| Components |
184: DS20 fluid head, 420G: Toggle 75 2-stage tripod (alloy), 411: On ground spreader, 681: Pan handle – fixed with clamp, 554: Shoulder strap (padded), 3514: Softcase 2-stage |
| Counterbalance Positions |
2 selectable positions |
| Height Above Bowl |
137mm (5.4″) |
| Height Range |
527-1697mm (20.7-66.8″) |
| Leg Extension |
2-stage |
| Leg Material |
Alloy |
| Lock Type |
Toggle |
| Mounting Base |
Ø75mm (2.9″) ball levelling |
| Pan Handle |
Fixed length 390mm (15.4″) |
| Pan Range |
360° |
| Pan Tilt Drag |
Adjustable fluid drag |
| Pan Tilt Locks |
Positive lock calliper brake system |
| Payload Range |
5.0-10.0kg (11.0-22.0lbs) |
| Sliding Range |
60mm (2.4″) |
| Temperature Range |
-40° to +65°C (-40° to +149°F) |
| Tilt Range |
+ 90°/ -75° |
| Transport Length |
827mm (32.6″) |
| Weight |
5.9kg (13.1lbs) |
