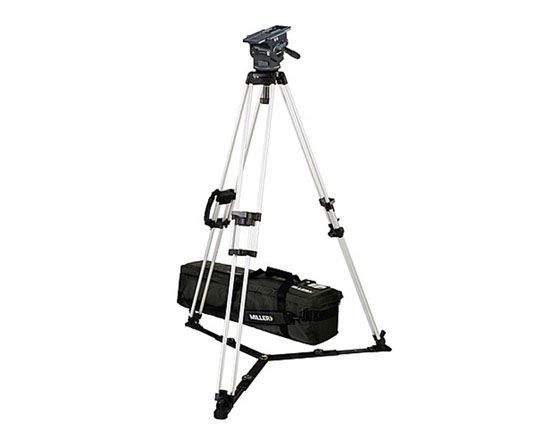

MILLER ArrowX 3 3034 System

£3,811.00 Ex. VAT £4,573.20 Inc. Vat

Compare
SKU: 3034 Categories: , ,

System ArrowX 3 Sprinter II 1-stage (alloy) with  On ground spreader combines the ArrowX 3  fluid head with speedy and solid Sprinter II Alloy tripod to support the latest generation in acquisition from the DSLR to film-ready HDV alternatives to the lightweight ENG camcorders of payloads from 1-19kg 2.2-41.8lbs

Fluid Head:

Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 3 sets new dimensions in professional camera support augmenting the power of expression of creative professionals, Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.

1-19kg (2.2-41.8lbs) payload range and 5 0 selectable pan-tilt fluid drag positions make Arrowx 3 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories. CB PlusTM is an innovative sequential counterbalance design, taking traditional counter balancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

Tripod:

The new Sprinter II ENG tripod range features Miller Sprint-Locks, side-action leg locks. Miller’s designers have updated the streamline design of the levers to bring you a more ergonomic feel to the lever-lock action. Single Stage Sprinters feature a singular Sprint-Lock side-action lever for single stage control.

Spreader:

The Ground spreader attached directly to the spiked feet at the bottom of the Sprinter II tripods. Optimised for use on flat surfaces the telescoping spreader arms allow for rapid set-up and pull down by keeping the tripod legs at an equal or pre-set distance.

Pan Handles:

Telescopic with black handle carrier

Soft Case:

The Arrow Soft case for Single Stage tripods has padded carry straps for comfortable carrying with patented head-end cradle to protect the fluid head during transport. The Soft case is made from weatherproof Cordura with heavy duty zippers on bag and all pockets. Weighing only 3.5kg (7.7 lbs) and a transport length of 1080mm (42.5″) this soft case is great protection for your tripod system.

Additional information

Brand

Miller

MPN

3034

Specification

ArrowX 3 Fluid Head:
Sliding Range120mm (4.7″)
Payload Range1-19kg (2.2-41.8lbs)
Weight3.10kg (6.8lbs)
Mounting100mm
ball levelling with 3 x M5 holes for flat base mounting
Tilt Range90
-75
Tilt LockPositive lock calliper brake system
Pan Drag5 selectable fluid drag positions 0
Pan Range360
Pan LockPositive lock calliper brake system
Counter Balance System16 selectable positions
Temperature Range-40 to 65C
Pan HandleTelescopic 390 to 590mm
Height Above Bowl162 mm (6.4 in)
IlluminationBubble level, pan-tilt drag controls
Sprinter II Single Stage Alloy Tripod:
Spreader TypeGround Spreader
Tripod SeriesSprinter Tripod Series
Transport Length840 mm (33.1 in)
Payload Capacity45.00 kg (99.2 lbs)
Minimum Height665 mm (26.2 in)
Maximum Height1430 mm (56.3 in)
MaterialAluminium
Lock TypeSprint-Locks
ConstructionSingle Stage
Bowl Diameter100 mm (3.9 in)
Weight3.20 kg (7.1 lbs)
Ground Spreader:
AttachmentStirrup
Extended Length645 mm (25.4 in)
Folded Length445 mm (17.5 in)
Spreader TypeGround Spreader
Weight0.65 kg (1.4 lbs)
Pan Handle:
Weight0.38 kg (0.8 lbs)
Length390 mm (15.4 in)
Extended Length590 mm (23.2 in)
MaterialAlloy/rubber
Arrow Soft Case:
External Width190 mm (7.5 in)
External Height220 mm (8.7 in)
External Length1080 mm (42.5 in)
Weight3.50 kg (7.7 lbs)
Accessories Head CradleYes
Accessories PocketsYes
Accessories Carry StrapYes

Key Features

Miller 3034 ArrowX 3 Sprinter II 1-Stage Alloy Tripod System with Fluid Head (See Included tab for content) (3034)
