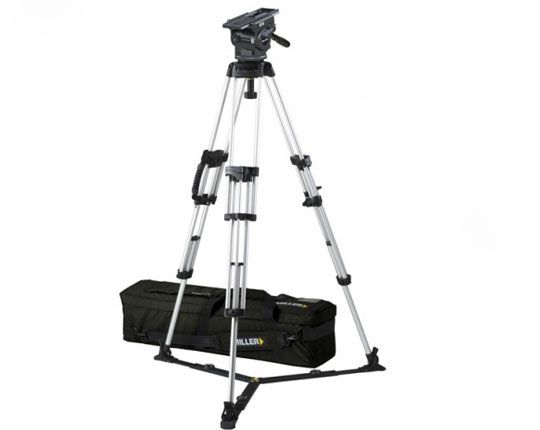

MILLER ArrowX 3 3038 System

£4,131.00 Ex. VAT £4,957.20 Inc. Vat

SKU: 3038 Categories: , ,

Description

System ArrowX 3 Sprinter II 2-stage (alloy) Sprinter II 2 Stage tripod system combines the ArrowX 3 fluid head with speedy and solid Sprinter II 2 Stage Alloy tripod to support the latest generation in acquisition from the DSLR to film-ready HDV alternatives to the lightweight ENG camcorders of payloads from 1-19kg 2.2-41.8lbs.

Fluid Head:

Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 3 sets new dimensions in professional camera support augmenting the power of expression of creative professionals, Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.

1-19kg (2.2-41.8lbs) payload range and 5 0 selectable pan-tilt fluid drag positions make Arrowx 3 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories. CB PlusTM is an innovative sequential counterbalance design, taking traditional counter balancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

Tripod:

The new Sprinter II ENG tripod range features Miller Sprint-Locks- Dual, side-action leg locks that let you independently adjust both stages of a 2- stage tripod using one hand. Each tripod leg has two Sprint-locks, co-located on the upper leg clamp. The result: high speed adjustment, no more bending down to adjust the lower tripod stage.

Spreader:

The Ground spreader attached directly to the spiked feet at the bottom of the Sprinter II tripods. Optimised for use on flat surfaces the telescoping spreader arms allow for rapid set-up and pull down by keeping the tripod legs at an equal or pre-set distance.

Pan Handles:

Telescopic with black handle carrier

Soft Case:

The Arrow Soft case for 2-Stage tripods has padded carry straps for comfortable carrying with patented head-end cradle to protect the fluid head during transport. The Soft case is made from weatherproof Cordura with heavy duty zippers on bag and all pockets. Weighing only 3.0kg and a transport length of 930mm this soft case is great protection for your tripod system.

Additional information

Brand

Miller

MPN

3038

Specification

ArrowX 3 Fluid Head:
Sliding Range120mm (4.7″)
Payload Range1-19kg (2.2-41.8lbs)
Weight3.10kg (6.8lbs)
Mounting100mm
ball levelling with 3 x M5 holes for flat base mounting
Tilt Range90
-75
Tilt LockPositive lock calliper brake system
Pan Drag5 selectable fluid drag positions 0
Pan Range360
Pan LockPositive lock calliper brake system
Counter Balance System16 selectable positions
Temperature Range-40 to 65C
Pan HandleTelescopic 390 to 590mm
Height Above Bowl162 mm (6.4 in)
IlluminationBubble level, pan-tilt drag controls
Sprinter II Two Stage Alloy Tripod:
Spreader TypeGround Spreader
Tripod SeriesSprinter Tripod Series
Transport Length700 mm (27.6 in)
Payload Capacity45.00 kg (99.2 lbs)
Minimum Height440 mm (17.3 in)
Maximum Height1530 mm (60.2 in)
MaterialAluminium
Lock TypeSprint-Locks
Construction2 – Stage
Bowl Diameter100 mm (3.9 in)
Weight3.80 kg (7.1 lbs)
Ground Spreader:
AttachmentStirrup
Extended Length645 mm (25.4 in)
Folded Length445 mm (17.5 in)
Spreader TypeGround Spreader
Weight0.65 kg (1.4 lbs)
Pan Handle:
Weight0.38 kg (0.8 lbs)
Length390 mm (15.4 in)
Extended Length590 mm (23.2 in)
MaterialAlloy/rubber
Arrow Soft Case:
External Width220 mm (8.7 in)
External Height240 mm (9.4 in)
External Length930 mm (36.6 in)
Weight3.00 kg (6.6 lbs)
Accessories Head CradleYes
Accessories PocketsYes
Accessories Carry StrapYes
