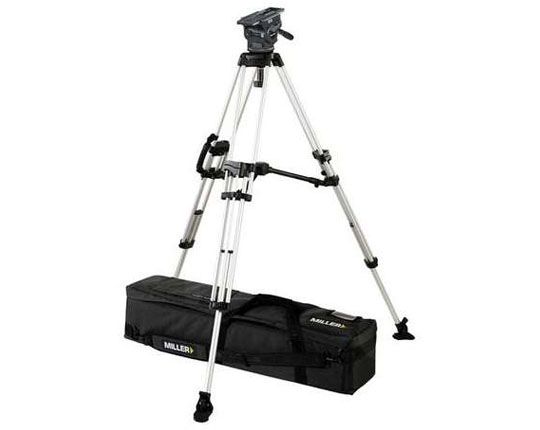

MILLER ArrowX 5 3097 System

£5,156.00 Ex. VAT £6,187.20 Inc. Vat

SKU: 3097 Categories: , ,


System ArrowX 5 Sprinter II 2-stage (alloy) combines ArrowX 5 fluid head with speedy and rugged Sprinter II alloy tripod to meet the demanding world of news gathering. From fast-action sports shooting to long, slow pans the Arrow 40 system exceeds expectations of precision, quality and features for the ENG operators payloads from 2-21kg 4.4-46.2lbs.

ArrowX 5 Fluid Head (1074)
Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 5 sets new dimensions in professional camera  support augmenting the power of expression of creative professionals.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 5 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.

2-21kg (4.4-46.2lbs) payload range and 7 0 selectable pan-tilt fluid drag positions make Arrowx 5 ideal for ENG and EFP, enabling it to be used with a wide range of cameras, lenses and accessories and offering.

CB PlusTM is an innovative sequential counterbalance design, taking traditional counter balancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

Sprinter II 2-Stage Alloy Tripod (1580)
The new Sprinter II ENG tripod range features Miller Sprint-Loks- Dual, side-action leg locks that let you independently adjust both stages of a 2- stage tripod using one hand. Each tripod leg has two Sprint-Loks, co-located on the upper leg clamp. The result: high speed adjustment, no more bending down to adjust the lower tripod stage.

Mid-Level Spreader (993)
The mid-level spreader design offers continuous variable adjustment between maximum and minimum height settings and assist the tripod in rapid setup and pull down by keeping the tripod legs at an equal or preset distance relative to each other.

Pan Handle (696)
Telescopic pan handle supplied with black handle carrier.

Rubber Feet (475)
The 475 detachable rubber feet provide stable support for your camera on any surface. No matter what position before setup, with Miller’s unique design the feet will always place flat upon the surface on your location. No more bending down to position feet curled inside the tripod. The 475 rubber feet are supplied as a set of three and suit all tripods sold with the 993 Mid Level Spreader.

Arrow Softcase (872)
The Arrow Softcase for 2-Stage tripods has padded carry straps for comfortable carrying with patented head-end cradle to protect the fluid head during transport. The Softcase is made from weatherproof cordura with heavy duty zippers on bag and all pockets. Weighing only 3.0kg and a transport length of 930mm this softcase is great protection for your tripod system.

Additional information






Maximum Height:1692 mm (62.7 in)
Mounting Standard:100mm ball levelling
Payload Range:2-21kg 4.4-46.2lbs
Construction:2 Stage
Minimum Height:602 mm (32.8 in)
Payload Capacity:21.00 kg (46.3 lbs)
Transport Length:862 mm (33.9 in)
Weight:8.80kg (19.4lbs)

Key Features

Miller 3097 ArrowX 5 Sprinter II 2-Stage Alloy System includes ArrowX 5 Fluid Head (1074), Sprinter II Tripod (1580), Mid-Level Spreader (993), Pan Handle (696), Rubber Feet (475) and Softcase (872)
