Panasonic AW-HE42K PTZ

£2,765.00 ex. VAT £3,318.00 inc. VAT

SKU: PAN-AWHE42KEJ Categories: , ,

Description

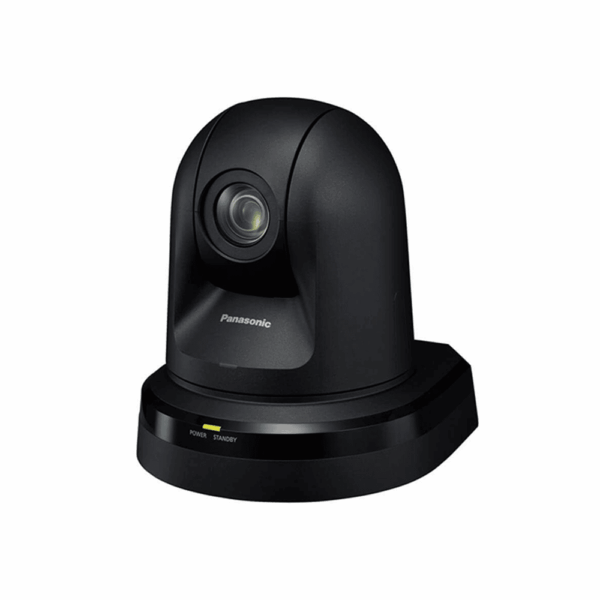

The AW-HE42 camera is designed to produce great results in a variety of applications that require high-quality HD video — such as conference video, event capture, staging, distance learning and houses-of-worship. For the first time, the AW-HE42 series supports simultaneous output via 3G-SDI, HDMI and IP, making it versatile for many events. For professional video and broadcast usage, Generator-Lock has been added for synchronisation.

In addition to a 20x optical zoom, the AW-HE42 also features intelligent zoom up to 30x, enabled to capture crisp close-ups even in large auditoriums and lecture halls. The HE42 also has a wider angle of view of 65.1 degrees, making it easier to capture the action in large or small venues.

Additional information

Brand

Panasonic

MPN

PAN-AWHE42KEJ

Specification

  • Camera Control Unit: AW-RP120, AW-RP150 & AW-RP50
  • Dimensions: 160 x 186 x 179 mm / 6-5/16 x 7-41/128 x 7-3/64″
  • Image Sensor: 1/2.3-type MOS sensor
  • NDI | HX: Y
  • Output: 3G-SDI, HD-SDI & HDMI
  • Preset: Up to 100
  • Protocol: IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast | IPv6 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS, NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
  • Remote Control Interface: LAN, RS232C & RS422
  • Video Format: 1080/59.94p, 29.97p, 59.94i, 29.97psF | 1080/50p, 25p, 50i, 25psF | 720/59.94p and 50p
  • Weight: Approx. 1.5kg / 3.30lbs
  • Zoom: Optical 20x zoom, Intelligent zoom 10x
  • Available in Black or WhiteThe AW-HE42 camera is designed to produce great results in a variety of applications that require high-quality HD video — such as conference video, event capture, staging, distance learning and houses-of-worship. For the first time, the AW-HE42 series supports simultaneous output via 3G-SDI, HDMI and IP, making it versatile for many events. For professional video and broadcast usage, Generator-Lock has been added for synchronisation.

    In addition to a 20x optical zoom, the AW-HE42 also features intelligent zoom up to 30x, enabled to capture crisp close-ups even in large auditoriums and lecture halls. The HE42 also has a wider angle of view of 65.1 degrees, making it easier to capture the action in large or small venues.

Key Features

  • 30x Zoom and 1080 50p 3G-SDI Supported PTZ Camera
  • Full HD 3G-SDI
  • High-resolution lens enables superb picture quality with virtually lossless i.Zoom x30 (optical x20)
  • Optical Image Stabiliser (OIS) / 4-axis hybrid image stabiliser are equipped.
  • Various interface support including 3G-SDI and GENLOCK for Live & Production use
  • IP streaming and control capability with PoE+ power supply support
  • NDI|HX support ready (Requires purchasing a license from NewTek, Inc.)
  • Four Drive Lens System means that three zoom lenses and one focus lens can independently operate simultaneously
  • Equipped with a Freeze During Preset function that freezes video during preset playback
  • Wider viewing angle of 65.1 degrees
  • Simultaneous HD output: 3G-SDI, HDMI & IP
  • 20x optical zoom with 10x intelligent zoom
  • 1/2.3-type MOS sensor
  • High Dynamic Range (HDR) function, suitable for backlit conditions
  • Compatible with: AW-RP120, AW-RP150 & AW-RP50
  • Single cable solution for remote video and audio
  • Supports PoE+
  • Supported Video Formats:
    • 1080/59.94p, 29.97p, 59.94i, 29.97psF
    • 1080/50p, 25p, 50i, 25psF
    • 720/59.94p and 50p
