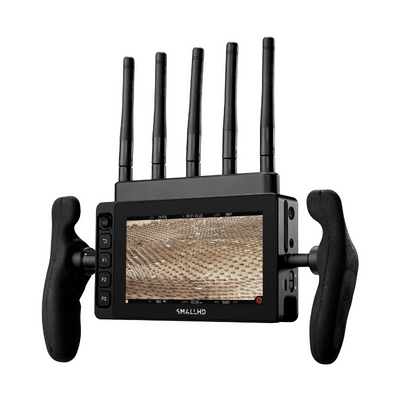

SmallHD Ultra 5 Bolt RX 750 V-Mount Kit (16-0528-VM) – this model enables 6GHz connectivity, eliminating the need for additional cables or batteries.
Unlock the full wireless camera control whilst working seamlessly with your handheld Teradek RT system for full wireless FIZ control.
The RX monitor is available with integrated Gold- or V-Mount (this is the V-Mount) options and all Ultra 5 wireless monitors are fully cross-compatible with all Bolt 4K devices over the 5GHz band.
Features of Ultra 5 Monitor
- I/O capability
- Matches a range of on-set workflows
- Multi-touch interface
- Supplementary customizable function buttons for quick access to monitor and software functions while wearing gloves
- Encased in a unibody chassis crafted from anodized aluminum and features multiple mounting points
Features of Bolt 6 TX 750 V-Mount
- Transmits and receives over the newly available 6GHz frequency band
- Reduces signal congestion
- Remains fully cross-compatible across all Bolt 4K devices
- Redesigned form factor that’s smaller, lighter, cooler, and up to 50% quieter than its Bolt 4K counterpart
- Expands power and performance of the zero-delay Bolt 4K family into U-NII 5 frequency spectrum
- V-Mount
Comes With
- Ultra 5 Bolt 6 RX 750 Kit – V-Mount
- Monitor Handles + Neck Strap
- CS Micro Power Plat
Additional information
BRAND | SMALLHD |
---|---|
SCREEN SIZE | |
MPN | 16-0528-VM |
Features
Features of Ultra 5 Monitor:
- I/O capability
- Matches a range of on-set workflows
- Multi-touch interface
- Supplementary customizable function buttons for quick access to monitor and software functions while wearing gloves
- Encased in a unibody chassis crafted from anodized aluminum and features multiple mounting points
Features of Bolt 6 TX 750 V-Mount:
- Transmits and receives over the newly available 6GHz frequency band
- Reduces signal congestion
- Remains fully cross-compatible across all Bolt 4K devices
- Redesigned form factor that’s smaller, lighter, cooler, and up to 50% quieter than its Bolt 4K counterpart
- Expands power and performance of the zero-delay Bolt 4K family into U-NII 5 frequency spectrum
- V-Mount
Specification
Ultra 5 Monitor Spec:
Display: 5-inch LCD
Resolution: 1920 x 1080p (HD) Resolution
Color: DCI-P3
Color Depth: 4:2:2 10-bit
Brightness: 3000nits
Input/Output: 1x 3G/HD-SDI (I/O); 1x HDMI 2.0 (I/O)
Power Input: 2-pin Locking Power Input
Construction: Aluminum Unibody Chassis
Software: PageOS 5
Features of Bolt 6 TX 750 V-Mount:
Powered by Teradek’s BB3 chipset
• Pairs with up to 6 receivers, or
unlimited receivers when used in
Broadcast mode with the MAX models
12 new 40MHz wide channels from
5.925 to 6.425GHz
- Enhanced long-range image
quality feature - New SDI pattern tool to monitor SDI
signal quality - Universal compatibility with all Bolt 6
and Bolt 4K Series - Ultra fast pairing and intuitive setup
with Bolt Manager App - AES-256 encryption and RSA 1024 key
pairing prevents unauthorized access
What's Included
- ULTRA 5 Monitor
- Bolt 6 RX 750 V-Mount
