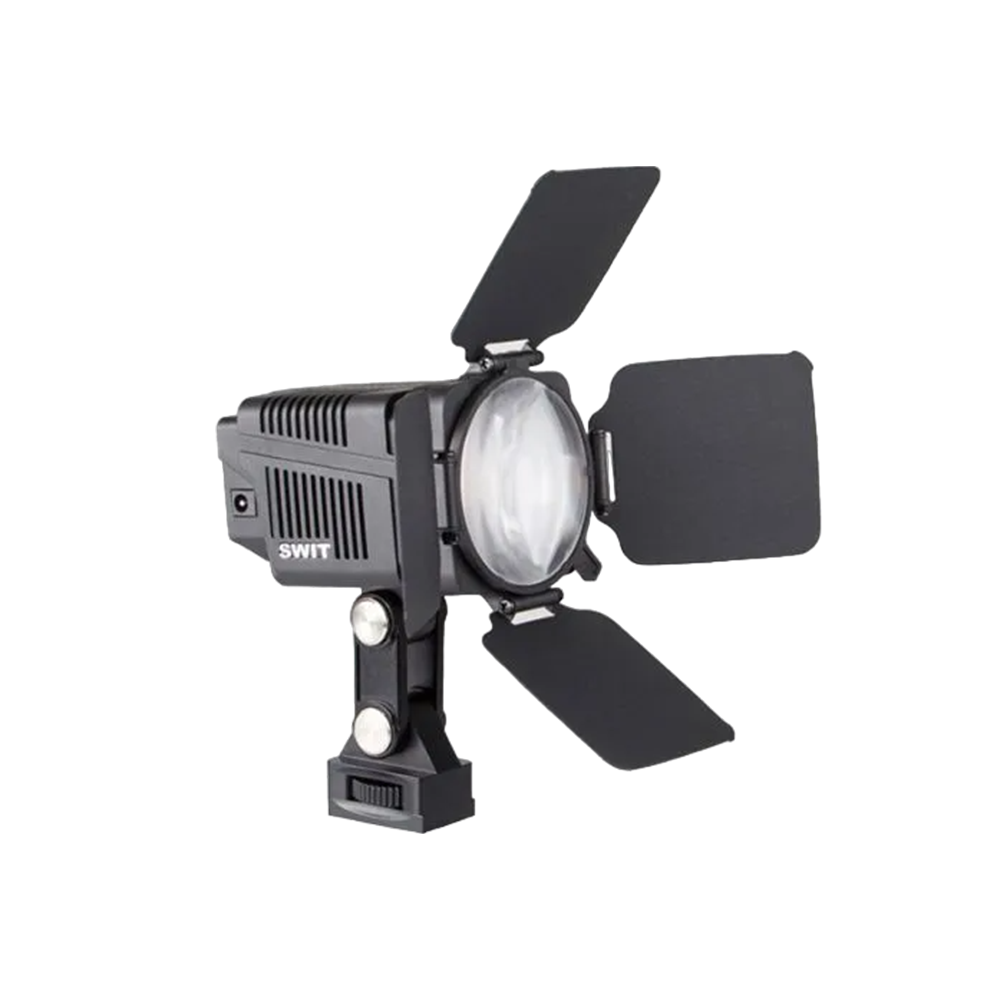

Swit S-2060 Chip Array LED On-Camera Light

Description

Swit S-2060 Chip Array LED On-Camera Light (S-2060) is a new light of SWIT Chip Array LED family, of flagship design and features.
Chip Array LED is the Swit unique new generation LED technology, which integrates the LEDs into a chip with high brightness output but in smaller size, and the most remarkable, it offers an equally spread, soft, non-glaring light.

It is called “the halogen bulb feeling LED technology”, and will be more suitable for ENG on-camera lighting.

1300Lux High Illuminance
S-2060 generate 1300Lux center illuminance at 1 meter distance, equivalent to a 110W halogen bulb.

Also the Chip Array LED generates an area light source, more equal and soft than the LED bulb array, and people will not feel glaring when being interviewed closely

60° Wider Beam Angle
Equally spread lights, no visible beam edge.

The traditional LED lights can get a high brightness centre light, but will dropped down quickly around, which will generate a visible lighting border in the image.

In comparison, the S-2060 Chip Array LED generates a 60° wider beam angle, equally spread from the center to edge, and suitable for HD shooting.

10-100% Dimmable

One knob revolve

The dimmer knob is on the rear panel of the light, and can be adjust from 10% to 100% illuminance.

The light output is flick free when dimming, and color temperature stays stable.

Fresnel Focus Lens

Raise the centre illuminance to 4000Lux

S-2060 offers a Fresnel focus lens, to increase the centre illuminance to 4000Lux, and the beam angle will be contracted to 23°.

Colour Temperature Adjust
2700K-5600K continuously adjustable
The S-2060 has bi-color Chip Array LEDs, and the colour temperature can be continuously adjusted from 2700K to 5600K, by revolving the knob on the rear panel of the light.

6-17V Wide Voltage Power Supply
The S-2060 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV batteries.

The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2060 and get power from D-tap power output sockets, such as batteries, battery plates, or camera handle. You can also select SWIT pole-tap to pole-tap DC cable (S-7108) to get power from pole-tap DC adaptors.

Easy Installation with Both cold-shoe and screw
S-2060 can be fixed on camera via 1/4” screw head, and the package also goes with a spare cold shoe part for users to change the screw connector to cold shoe.

Tilt Angle Adjustment
When installed on ENG cameras, the light head angle can be adjusted forward and backward, up and down, by the connection rod base.

Bayonet mount barn doors

Removable and interchange with colour filter or diffuser cover.

S-2060 has 4 leaf all metal barn doors, strong and durable.
The barn doors are bayonet mount design, can be revolve and take down like camera lens. S-2060 will provide color filter and diffuser cover accessories to be installed on.

The return SDI loop output Is for cascading another CCU if more than 4 camera channels are working.

Standard Package
S-2060 package includes:

• 1x D-tap to Pole DC power cable (S-7104)
• 1x Spare cold-shoe base
• 1x Portable bag
