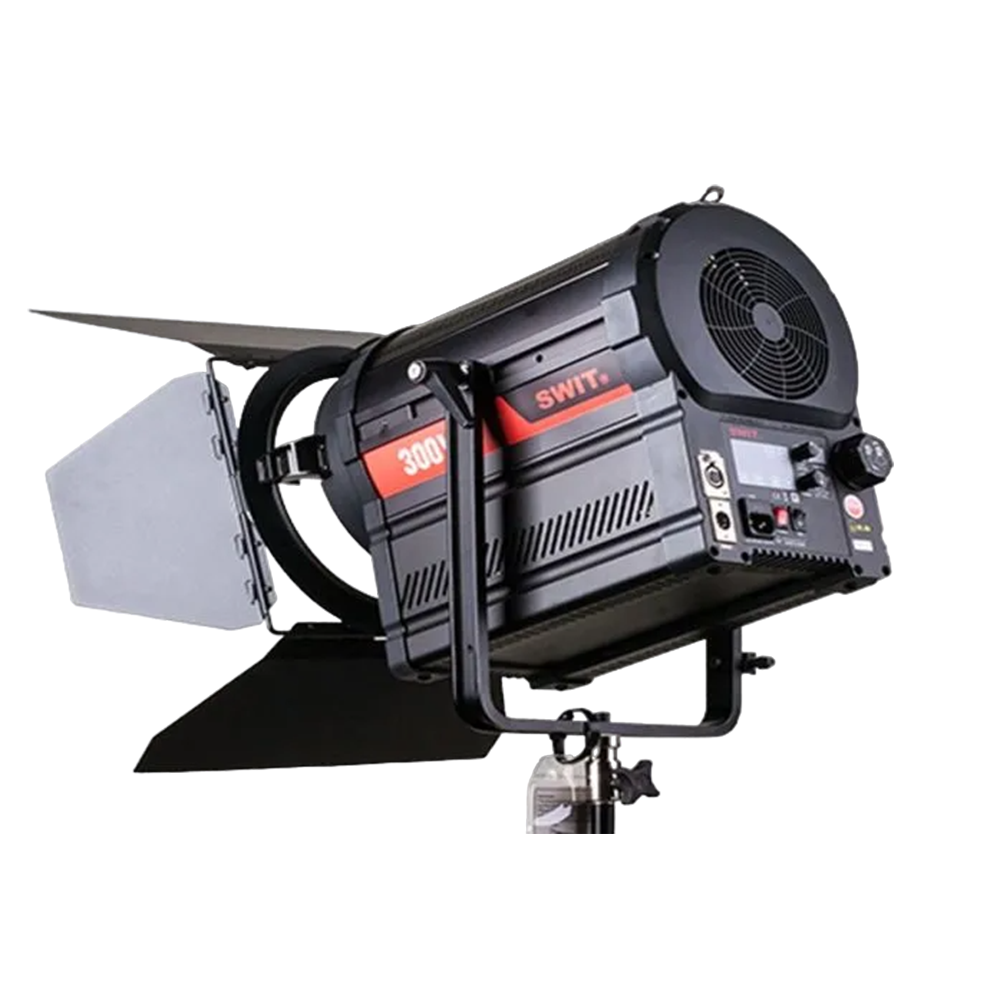

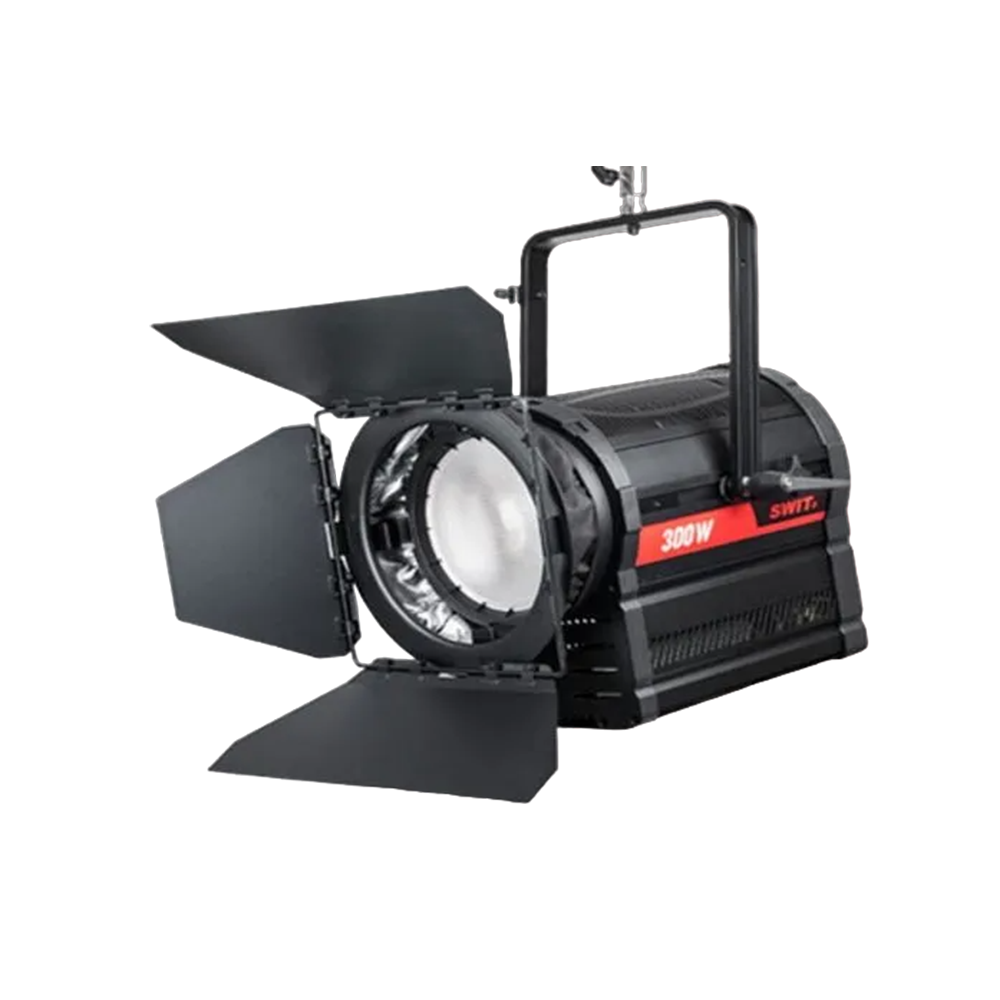

Swit S-2330 Bi-Colour Studio LED Spot Light

Description

Swit S-2330 Bi-Colour Studio LED Spot Light (S-2330) is a studio LED spotlight, with Chip-on-board LEDs of 50,000 hours lifetime, and generates 300W light output, which is an ideal light source for broadcast studio and field video productions.

Spot /Flood Adjust

20° – 70° beam angle S-2330 outputs 20° – 70° beam angle by adjusting position of the LED board, and 0-100% non-flickering dimmable. The following output illuminance at a different distance is for reference: Distance 20°Spot 70°Flood 3 meters 5940Lux 913Lux 5 meters 2139Lux 364Lux 7 meters 1090Lux 193Lux

Bi-color temperature

3000K-8000K continuously adjustable S-2330 LED board alternated with 3000K and 8000K LEDs, and the output color temperature can be continuously adjustable between 3000K and 8000K.

High Color Reveal Ability

CRI Ra≥95; TLCI≥95 CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while S-2330 offers the super high CRI at 95 and TLCI at 95, and will not lose the object original colors.

DMX512 Control

Dimmer and Color temperature S-2330 adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller. The dimmer and color temperature occupy 1 DMX address respectively.

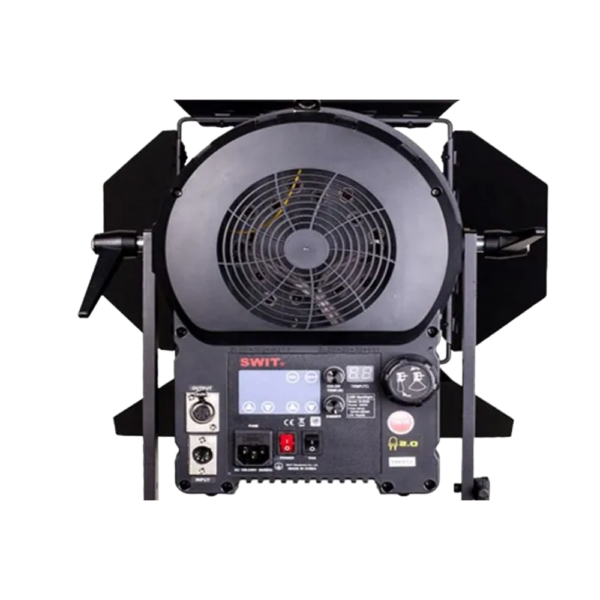

LCD screen display

Dimmer/color temperature / DMX address The rear LCD screen can display the current dimmer percentage, color temperature value, and set DMX address, supports touch control to adjust and set.

Silent Mode

Switch off fans S-2330 adopts silent fans to radiate heat, which will not affect normal shooting environment to record audio. While in strictly silent required broadcast environment, S-2330 can be switched to “Silent Mode” to turn off the fans. Anyway, during the Silent Mode running, when the light detected a temperature over 75 degree, it will be switched off automatically to pretect the LED.

Sleep Mode

Quick recover brightness S-2330 supports “Sleep Mode”: you can switch off the light by pressing the DIMMER knob, to enter Sleep Mode. And press the DIMMER knob again; the S-2330 can be quickly light up to the previous dimmer value.

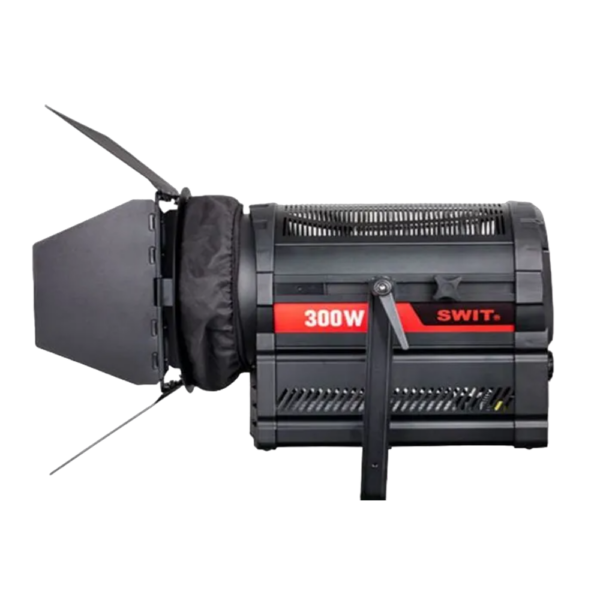

4-leaf Metal Barn Door

With black-out cloth S-2330 is equipped with 4-leaf metal barn doors, dismountable and rotatable. Meanwhile, the light provides a special black-out cloth to prevent the light leakage.
