Teradek Bolt 6 750 TX Monitor Module
£1,764.00 £1,470.00
Teradek Bolt 6 750 TX Monitor Module (10-2198-7) is a real-time wireless video transmitter that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This Receiver Monitor Module integrates directly with the SmallHD Smart 7 Monitor Series. Send colour-accurate, 4K HDR videos in under 0.001 seconds.

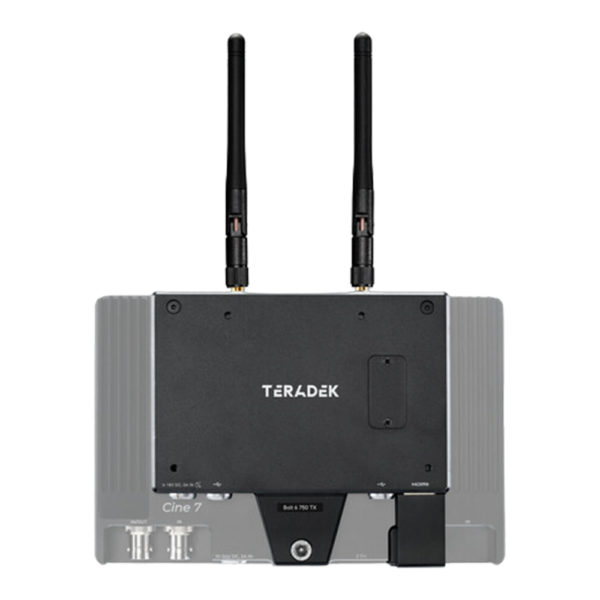

The Bolt 6 Transmitter Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With direct integration, the Bolt 6 and Smart monitor are able to share power and video, allowing you to reduce the amount of cables on set.Key features of the Bolt 6 TX Monitor Module include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.
With the Bolt 6 Monitor Module, Wireless Camera-Control is also made possible, because it integrates directly into SmallHD Smart Monitors. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.
The Bolt 6 TX Monitor Module is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
Bolt 6 Transmitter Monitor Module offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-mount battery plates.
About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backward compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience. 6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.
- 1 x Bolt 6 Monitor Module 750 TX
- 1 x Hex L key 3/16″ x 2 13/16″ length
- 1 x Hex L key 2mm size 3-3/8″ length
- 1 x Screw Socket Head Black 1/4-20 x 3/8″ length
- 2 x Screw Socket Head Low Profile Black Oxide M3 x 20mm
- 2 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
- 1 x Lightstand Adapter 1/4-20in
- 1 x HDMI Adapter Bolt 4K TX Monitor Module
Additional information
| MPN | 1021987 |
|---|---|
| BRAND | SMALLHD, TERADEK |
Specification
| Video | |
| Video Inputs | 1 x HDMI 1.4b Type-A receptacle |
| Sdi Ancillary Data Support | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Delay Tx To Rx | <0.001sec |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080psf23.98/24/25/29.97/30 | |
| 1080i50/59.94/60 | |
| 720p50/59.94/60 | |
| 480p50 576p59.94/60 | |
| 480i(NTSC)/576i(PAL) | |
| Video Compression | Visually Lossless |
| Colour Correction | None |
| Audio Compression | 48kHz 24-bit PCM |
| Audio Input | Embedded HDMI Audio Input (2 Channel) |
| Dimensions | 60mm x 103mm x 33mm |
| Weight | 206g (7.3oz) |
| Construction | Milled Aluminium(Chassis) and regulation-compliant PCB |
| Mountability | SmallHD 7″ Monitor |
| Configuration Interfaces | SmallHD Monitor UI |
| Mobile App | Bolt App |
| Usb Interface Functionality | SmallHD Monitor UI |
| 2x 5pin Locking Connector CCU (Host) | |
| Bluetooth | Via SmallHD Monitor |
| Antennas | 2 External 2dBi antennas (included) |
| Wireless | Non-DFS Frequencies: |
| 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz | |
| DFS Frequencies: | |
| 5.270 ~ 5.670 GHz | |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 23 dbm EIRP |
| Range | Up to 750 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones |
| Can operate up to 6 sets in same location | |
| Interoperability | Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) |
| Power Input | 2-Pin Circular locking Connector 6-18 VDC |
| Battery | None, optional Sony/Canon dual battery plate |
| Nominal Power Consumption | 7 Watts |
| Operating Temperature | 0-40℃ |
| Ghz Support | Yes |
| Compatible With Bolt4k | Yes |
| Available Ranges | 750 ft / 1500 ft |
| Maximum Sdi Resolution | No |
| Maximum Hdmi Resolution | UHDp30** |
| Smallhd Wireless Camera Control Port | Yes |
| Transmitter Weight | 12.6 oz / 358 g |
| Receiver Connectivity | |
| Zerodelay | ✔️ |
Key Features
- Zero Delay
- 6GHz Wireless Frequency Access
- Bolt 4K Cross-Compatibility
- Direct SmallHD Integration
- Inputs: HDMI
