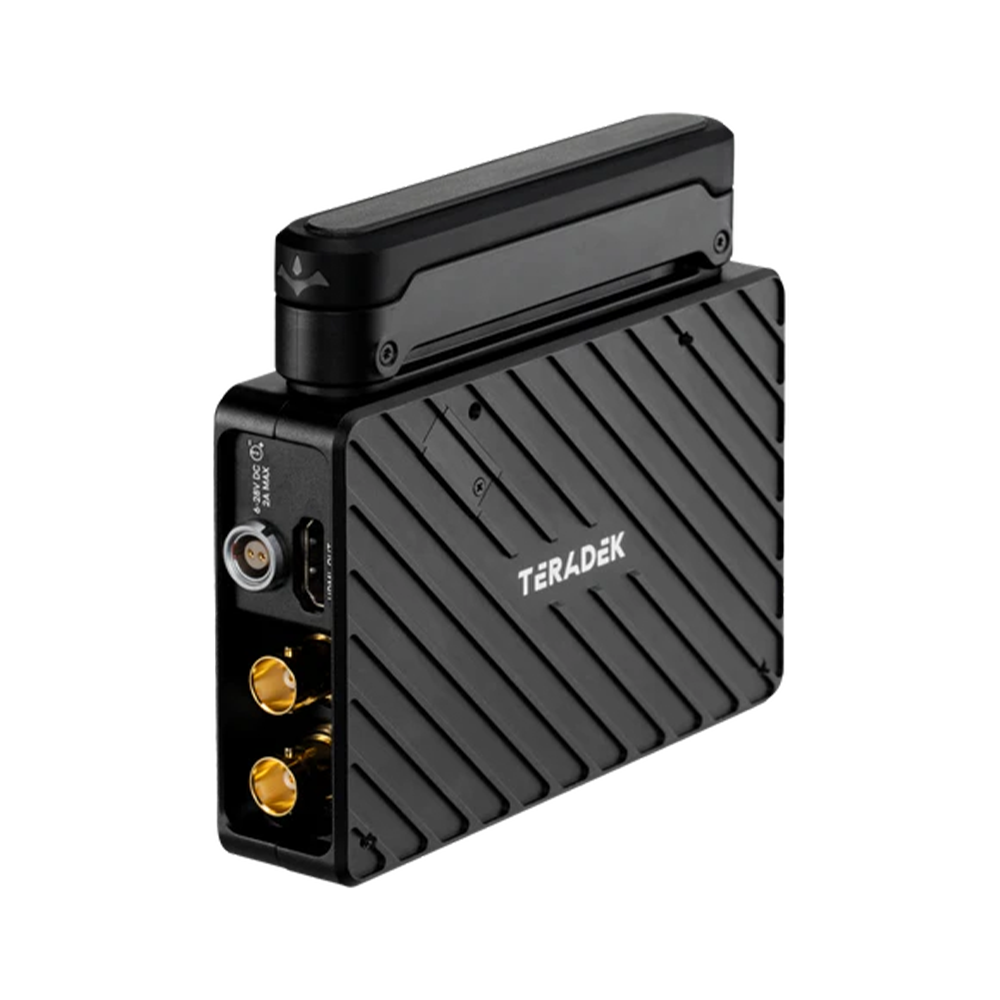

Teradek Bolt 6 LT 750 Int Ant RX
£1,587.60 £1,323.00
Teradek Bolt 6 LT 750 Int Ant RX (10-2264) is a wireless video receiver that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT RX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.
The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT RX can include internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
- Comes With
- 1 x Bolt 6 LT 750 RX Internal Antenna
- 1 x 2pin to P-Tap Cable, 18in
- 1 x 2pin to AC Adapter 18W, 6ft
- 1 x Ultra Thin HDMI Male to Male Cable, 18in
- 1 x SDI Cable, 10in
- 1 x USB-C 2.0 Male to Male, 1m
Additional information
| BRAND | TERADEK |
|---|
Specification

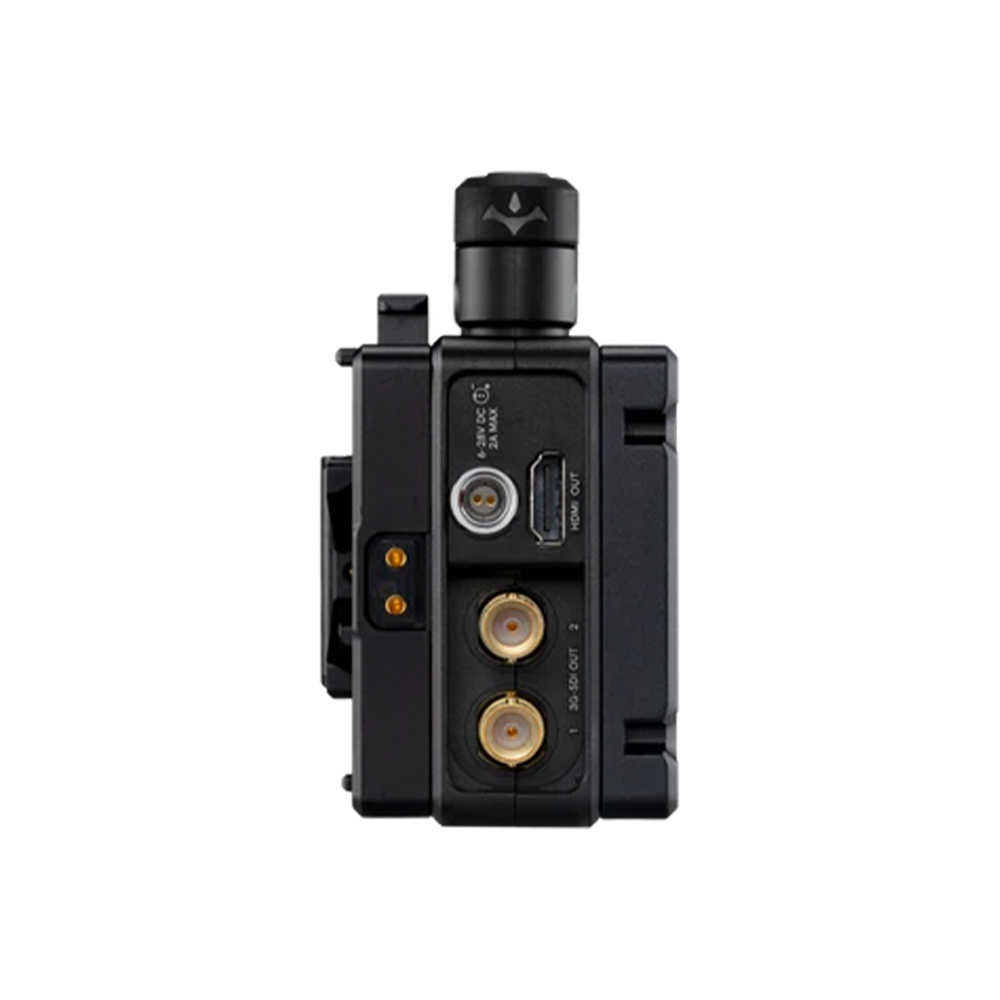

| Video Outputs | 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle |
| Sdi Ancillary Data Support | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit |
| Delay Tx To Rx | <0.001sec |
| Output Video Scaling | No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 6 XT |
| devices are scaled to 1080p60 and output over both HDMI and SDI outputs) | |
| Supported Resolutions: | |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 (HDMI only) |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080psf23.98/24/25/29.97/30 | |
| 1080i50/59.94/60 | |
| 720p50/59.94/60 | |
| Video Processing: | |
| Video Compression | Visually Lossless |
| Test Pattern Generator Support | Yes |
| Spectrum Analyzer | Yes |
| Color Correction | None |
| Outputs: | |
| Audio Output | Embedded SDI/HDMI Audio Input (2 Channel) |
| Physical: | |
| Dimensions | 4.8″ x 4.2″ x 1″ (122.4mm x 106.2mm x 27.1mm) |
| Weight | 10.7 oz (304 g) |
| Construction | Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 3/8”x16 and 1/4-20” holes |
| Interfaces: | |
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Mobile App | Bolt App |
| Desktop App | Bolt Manager application for OSX & Windows |
| Usb Interface Functionality | Upgrade via Micro-USB |
| Bluetooth | 2.4 GHz |
| Network: | |
| Antennas | 4x Internal 2dBi Antennas |
| Wireless | DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 21 dbm EIRP |
| Range | Up to 750 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones |
| Can operate up to 6 sets in same location | |
| Interoperability Compatibility | Can receive wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) |
| Power: | |
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None |
| Nominal Power Consumption | 11 Watts |
| Environmental: | |
| Operating Temperature | 0-40℃ |
