Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX Gold-Mount

£6,540.00 £5,450.00

Order Now - Usually delivered in 1-2 weeks

SKU: TER-10-2322-G Categories: , Tags: ,

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX Gold-Mount (TER-10-2322-G) – the redesigned,  zero-delay, streamlined, wireless video solution with next generation 6GHz connectivity, plus cross-compatibility with the Bolt 4K Series.

12G-SDI + HDMI for full DCI 4K resolution in 10-bit 4:2:2 HDR; with integrated 5-pin USB for wireless camera control; integrated battery plate options with power pass-through, and more!

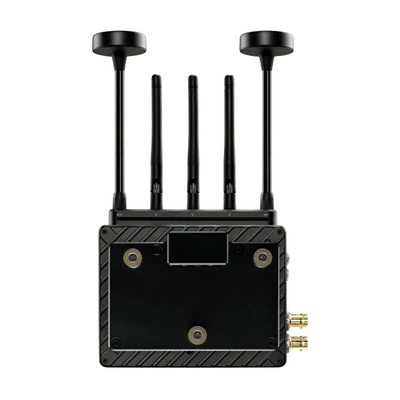

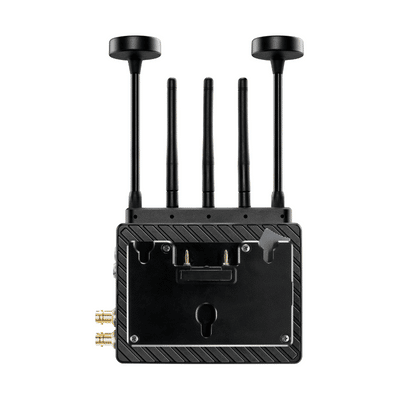

This is the Wireless RX Gold Mount version in the Bolt 6 XT MAX series.

Features

  • Zero-Delay wireless video (<0.001sec)
  • Up to DCI 4K resolution
  • True HDR with 10-bit 4:2:2
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI, HDMI 2.0
  • Gold Mount

Comes With

  • 1 x Bolt 6 XT MAX RX Gold Mount
  • 1 x Bolt 6 XT Battery Cover Plate Front
  • 2 x Screw Flat Head Phillips
  • 1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
  • 1 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
  • 1 x SDI 12G BNC to BNC 18in/46cm Cable
  • 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
  • 5 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
  • 1 x USB 2.0 Type A Male to USB Type C Male – 1m Cable
  • 1 x Bolt 6 XT Battery Cover Plate Rear

Additional information

BRAND

TERADEK

MPN

10-2322-G

Specification

Powered by our BB3 chipset

• Pairs with up to 6 receivers, or
unlimited receivers when used in
Broadcast mode with the MAX models

12 new 40MHz wide channels from
5.925 to 6.425GHz

  • Enhanced long-range image
    quality feature
  •  New SDI pattern tool to monitor SDI
    signal quality
  • Universal compatibility with all Bolt 6
    and Bolt 4K Series
  • Ultra fast pairing and intuitive setup
    with Bolt Manager App
  • AES-256 encryption and RSA 1024 key
    pairing prevents unauthorized access
