Teradek TOF.1 Rangefinder
£1,500.00 £1,250.00 Ex. VAT
Order Now - Usually delivered in 2-4 weeks
Description

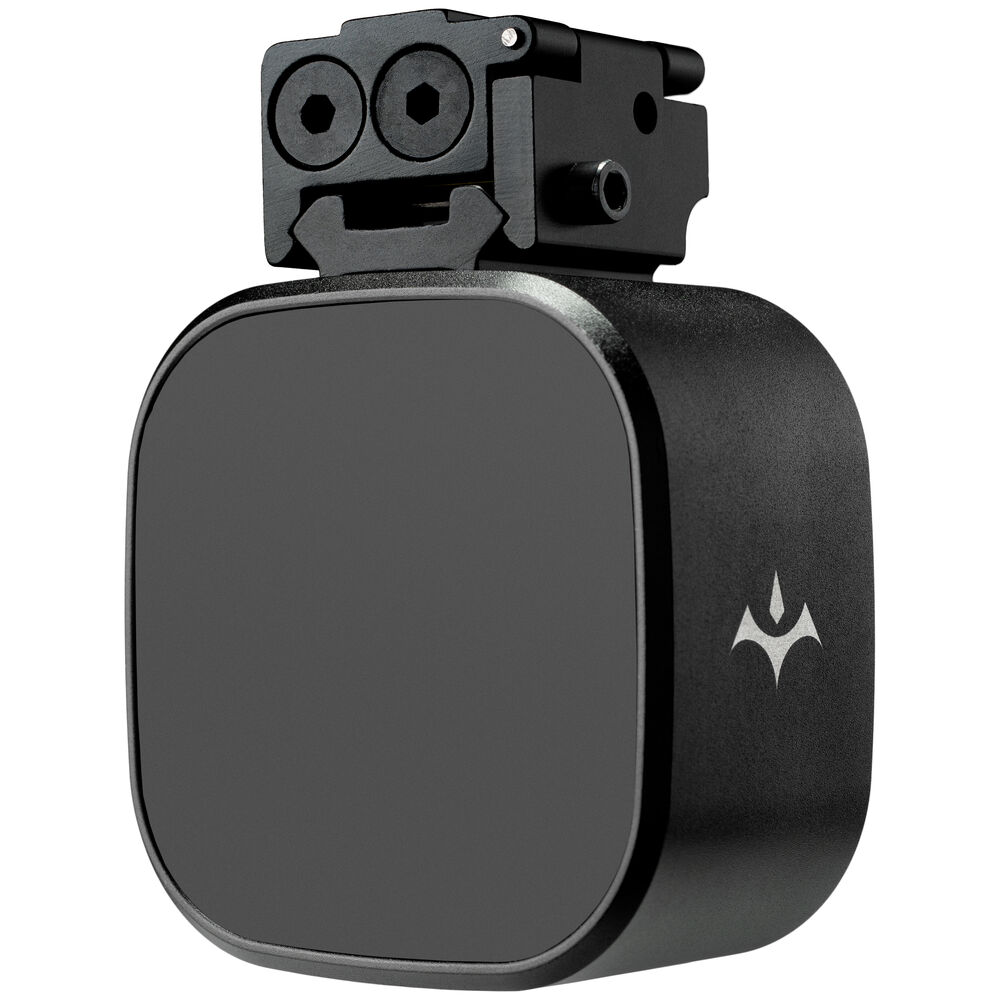

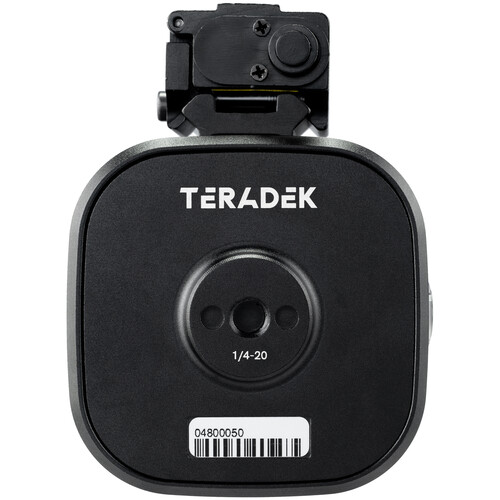

Teradek TOF.1 Rangefinder (15-0048) adds precise distance measurement to your subject for more accurate focus pulls when using the Teradek RT MDR.X receiver with either the CTRL.1 or CTRL.3 controller. The compact TOF.1 rangefinder is small enough to mount onto your rig alongside the MDR.X unit, and it features a NATO rail and 1/4″-20 thread mounting options. A detachable laser sight is included to provide a red visual target for your focus puller, which is calibrated to the centered with the TOF.1 field of view. The TOF.1 is powered and controlled using a single 4-pin motor cable, which is also included.
The TOF.1 plugs into the MDR.X unit using the included 4-pin motor cable, which enables it to transmit distance information measured with infrared LEDs from the camera to your CTRL.1 or CTRL.3 controller. Using a serial/AUX connection to a compatible SmallHD monitor using its Rangefinder Overlay feature, you can also view the distance information transmitted to the controller right on the display. The TOF.1 has a 3° detection radius measured at your range to the target, which means a target 16′ away will have a detection diameter of 10″. Range detection is easily calibrated using the MDR.X controller menu system. Other features include a smoothing algorithm to reduce jitter, a range up to 100′, and a refresh rate of up to 60x per second.
The TOF.1 data is also compatible with SmallHD monitors with PageOS 4 software, allowing you to update your CTRL.1 or CTRL.3 with the RT overlay option to read the distance data right on your SmallHD monitor.
Comes With
- 1x Teradek TOF.1
- 1x Laser Sight
- 1x 4-pin to 4-pin Control Cable
Additional information
| BRAND | TERADEK |
|---|
