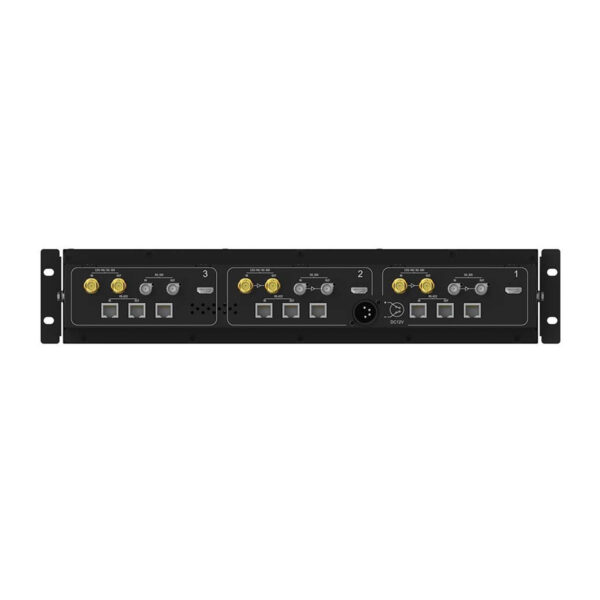

TV Logic R-5T Monitor Kit
£4,362.00 £3,635.00
TV Logic R-5T Monitor Kit (TVL-R-5T) is a brand-new rack monitor(3 x 5.5”) with advanced design and performance. It offers outstanding picture quality with a Full HD resolution of 1920 x 1080 and high luminance of up to 500cd/㎡. The R-5T supports video formats up to 12G-SDI and HDMI 1.3Ver and professional features such as Scan, Audio Level Meter, Time Code Display, Waveform/Vectorscope, and UMD.
Features
- 3 x 5.5″ LCD FHD Screen
- 1920 x 1080 Resolution (16:9)
- 12G / 6G / 3G-SDI Input, Output
- 1:1 Pixel Mapping Modes for SD/HD
- Screen Size: 5.5 inch
Comes With
- 3x Video Monitors
- 1x Rack Mountable Kit
- 1x DC Power Adapter
Additional information
| BRAND | TV LOGIC |
|---|---|
| MPN | TVL- CC-175 |
Specification
Display Spec.
| Size | 5.5″ |
| Resolution | 1920 X 1080 (16:9) |
| Pixel Pitch | 0.0213(W) x 0.0639(H) |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 122.7(H) × 69.0(V) mm |
Input
| 2 X BNC | SDI Input(12G-SDI x 1 / 3G-SDI x 1) |
| 1 X HDMI | HDMI Input |
Output
| 2 X BNC | 1 x 12G-SDI / 1 x 3G-/SDI OUTPUT |
Input Signal
| 3G SDI | 2.970Gbps |
| 12G SDI | 11.880Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mb/s |
| HDMI | 1080p(24/25/30/50/60) / 1080i(50/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50) |
SDI Input Signal Formats
| SMPTE 2082 | 3840×2160(60/50/59.94p) |
| SMPTE 2081 | 3840×2160 (30/25/24p/23.98p/29.97p) |
| SMPTE 425M-A/B | 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio
| Audio Out | – |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y’) Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom |
Closed Caption
Calibration
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions
| REMOTE | GPI (RJ45) |
| USB | Firmware update by USB memory stick |
| Ethernet | X |
Options
Dimensions
