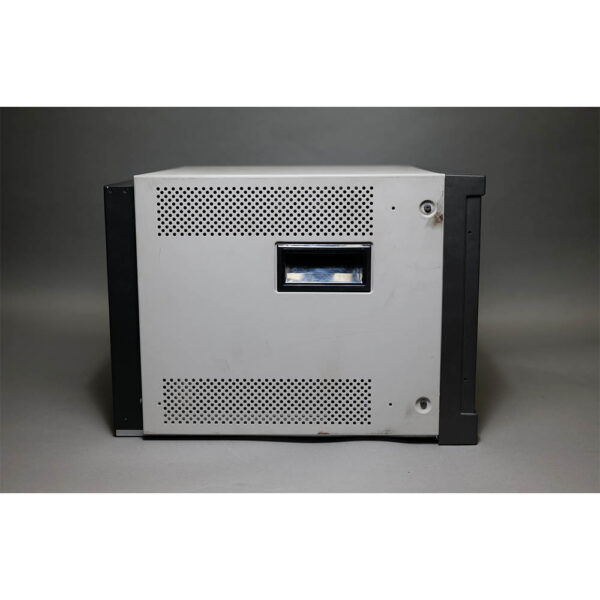

Used JVC CRT 15inch Grade 1

£270.00 £225.00

Only 1 left in stock

SKU: U/TM-H150CG Categories: ,

Used JVC CRT 15 inch Grade 1. The TM-H150CG is one of the highest specification monitors of its class. With the addition of an Input Card Slot and choice of Component and SDI input cards, TM-H150CGU will display all types of NTSC/PAL input signals and is an excellent solution for broadcast, production, preview, scientific and other applications, which demand the highest quality and professional features in an affordable package.

Summary

  • High-Resolution, more than 750 TV lines
  • Slot Port for Optional Component/SDI Card
  • Multi-standard NTSC & PAL
  • Aspect Ratios 16:9 & 4:3 switchable
  • On-screen Menu and Digital Image Control
  • Tough metal cabinet

Comes With

  • JVC CRT 15inch Grade 1
  • Power Lead
  • Alli Case

Additional information

BRAND

JVC

Specification

35.2lbs.(16kg)

Color System

NTSC and PAL H:15.734kHz (NTSC)/15.625kHz (PAL)

Scanning Frequency

V:59.94Hz (NTSC)/50Hz (PAL) 15”(14”V) diagonally measured

CRT

0.27mm dot pitch

Horizontal Resolution

More than 750 TV lines (Y/C input mode)

Power Requirement

120V AC,220-240V AC, 50/60Hz

Power Consumption

1.2A/120V,0.8A/220-240V

Color Temperature

6500° and 9300°selectable

INPUT Terminals

Input A

Composite

1 line,BNC connector x 2,1.0V (p-p), 75 ohms,negative sync,auto-termination, bridged output possible

Input B

Composite

1 line,BNC connector x 2,1.0V (p-p), 75 ohms,negative sync,auto-termination, bridged output possible

Y/C Signal

1 line,mini-DIN 4-pin x 2 Y:1.0V (p-p),75 ohms,negative sync C:0.286V (p-p),75 ohms (NTSC Burst) 0.3V (p-p),75 ohms (PAL Burst) auto-termination,bridged output possible

Input Slot

1 slot port for 1 input card for Component or SDI card RCA pin x 4 for input A and B,0.5V (rms),

Audio Terminals

Remote Terminal

high-impedance,bridged output possible D-sub 15-pin x1

Audio Speaker

3-1/4”(8cm) round x 1,1W output (monaural)

Dimensions (WxHxD)

14-1/4”x 12-1/4”x 16-1/2”(360 x 310 x 418mm)

Weight

35.2lbs.(16kg)
