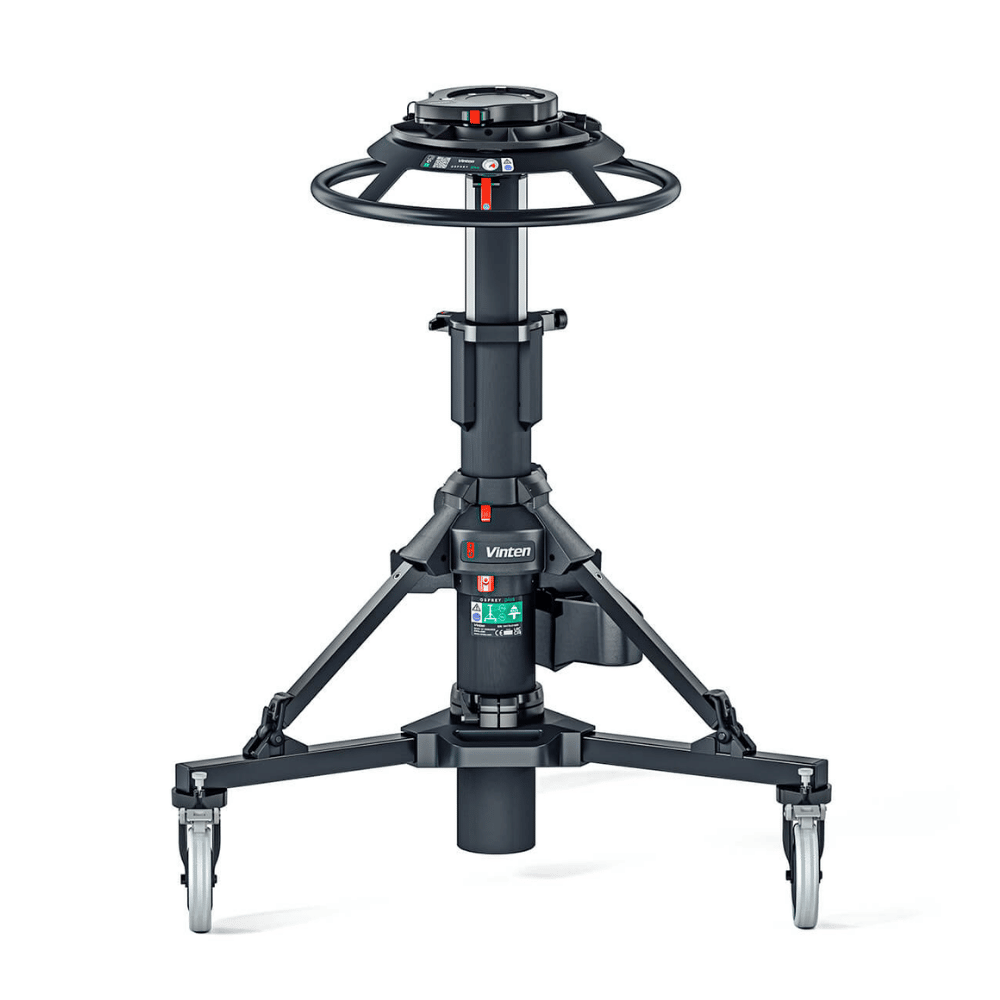

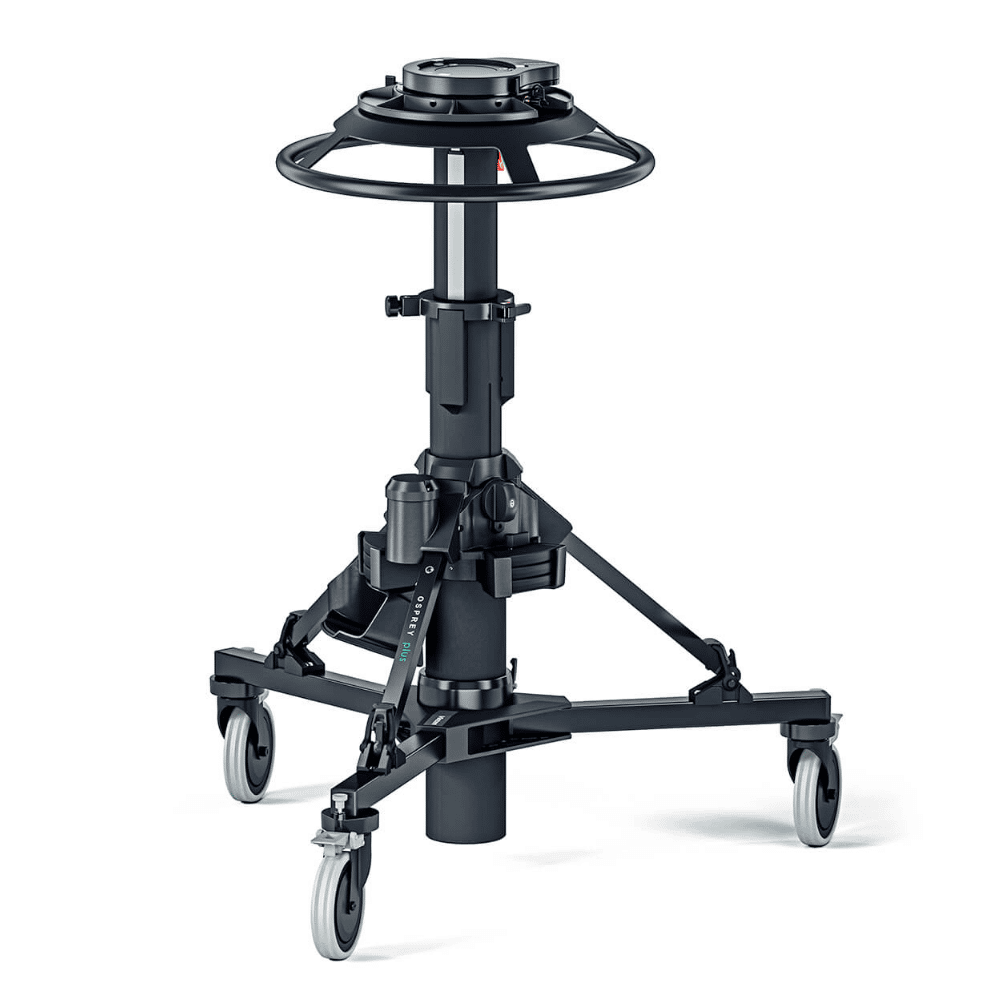

Vinten Osprey Plus Pedestal (OB)
- Brand: VINTEN
Portable 2-Stage pedestal with perfectly balanced stage for ‘on shot’ movement in field applications. Payload up to 70kg / 155lb.
SKU:
VN-V4170-0002
Categories: Pedestals, Tripods/Grip
Vinten Osprey Plus Pedestal (OB)
Vinten Osprey Plus Pedestal (OB) (V4170-0002). The Osprey Plus (OB) is capable of payload up to 70kg / 155lb. It has 2 stages for acheiving very high and low shots, and the upper stage is perfectly balanced for on shot tracking of talent. It has an integral manual pump and an inlet valve for use with an external supply, making Perfect Balance easy to achieve. There is a storage area for the camera operator. In addition, the Osprey Plus OB pedestal includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. It comes with 16 cm / 6.3 inch wheels for greater ground clearance for outside broadcast applications.
Key features
- Upper stage perfect balance for on-shot performance
- Balance assisted second stage for easy elevation and extended height range
- Built in pressure gauge and manual pump for easy counter balance set-up
- Detachable skid for easy transport and storage
- Pedestal supplied with Quickfix quick release system & operator storage area
- Column can be adapted to work on dolly track
Additional information
BRAND | VINTEN |
---|
Specification
Range
Osprey
Payload
0 to 70 kg
Stages
2
Perfect Balance Stages
1
On shot stroke
410 mm
Height
0.68 to 1.50 m
Steering
Castor
Head fitting
Flat base
Clearance
0
GroundClearance
31.50 mm
TrackingWidth
950 mm
Transit Width
860 mm
Integrated Pump
Yes
Cable Guards
Wheel truck mounted, individually adjusted
Trim Weights
3500
Wheel Diameter
150 mm
Base
Open
Wheel Locks
Individual
Narrow Transit Width
0
Steering Ring Diameter
535 mm
Weight
29.30 kg
What's Included
- Osprey Plus OB Pedestal
- Quickfix
- Accessory holder
- Manual Pump
- User Guide
