Wooden Camera D-Box/B-Box System V-Mount

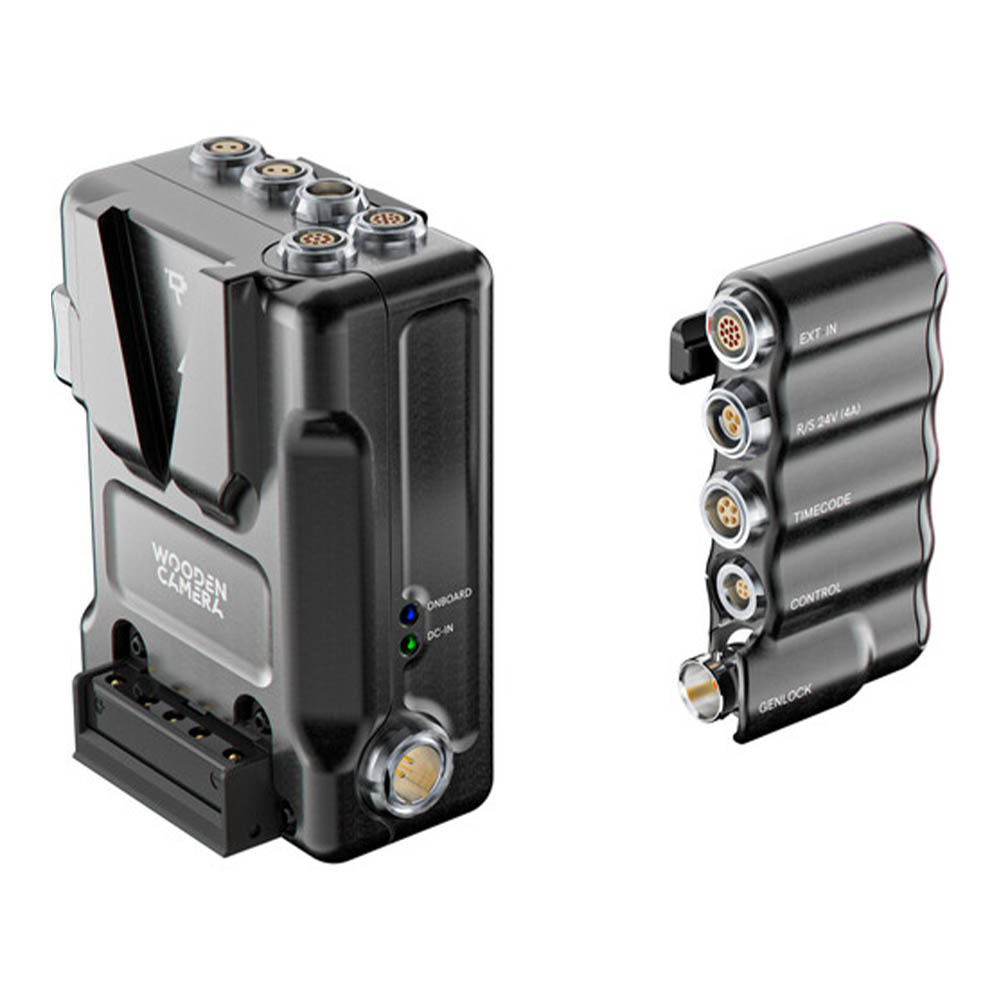

Wooden Camera D-Box/B-Box System V-Mount (A00544). This System includes the D-Box®, B-Box, cables, and mounting options to attach the B-Box to the Rear Cage. The D-Box® offers hot swap abilities when power is connected to the DC-In and an on-board battery. There are additional 12V 2-pin, a D-Tap port, and a 3-pin 24V power option. When connected to the EXT port of the camera, Run/Stop is enabled on both the D-Box and the B-Box. The B-Box has eight M2.5 threaded holes for additional accessory mounting like Accessory Rails, and Bolt-On Plate Adapters. Mounting options included with the B-Box are one 40mm Accessory Rail that is compatible with the Rear Cage mini clamp mount and a Bolt-On 3/8-16 Accessory Mount.

Comes With

D-Box® – RED® KOMODO-X™
B-Box – RED® KOMODO™, KOMODO-X™, V-RAPTOR™

Specifications

D-Box® (Gold Mount) and B-Box System (RED® KOMODO-X™): 352 g (0.75 lbs) | 48 x 133 x 125 mm (1.9 x 5.2 x 4.9 in)
D-Box® (V-Mount) and B-Box System (RED® KOMODO-X™): 367 g (0.8 lbs) | 48 x 133 x 125 mm (1.9 x 5.2 x 4.9 in)
