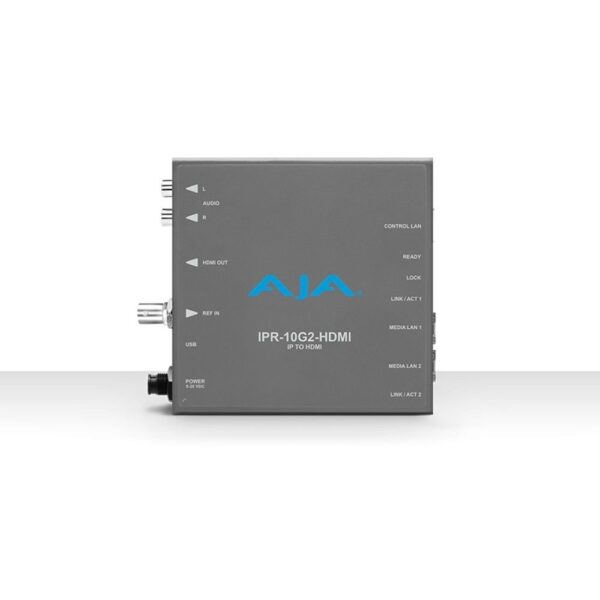

AJA IPR-10G2-HDMI DECODER

IPR-10G2-HDMI provides monitoring of UltraHD and HD SMPTE 2110 signals across 10 GigE to a HDMI ouput.

It receives SMPTE ST 2110 over 10 GigE connectivity, formats the data, including UltraHD or HD video on a full-size HDMI interface. Associated audio from the video stream is extracted, synchronised, and embedded into the HDMI interface and also output on an analog RCA interface.

The IPR-10G2-HDMI features 2x 10 GbE SFP+ cages allowing “hitless switching”, providing redundancy protection for critical distribution and monitoring applications.

The IPR-10G2-HDMI also offers 1x Reference In via BNC. This makes it ideal for integrating into existing basebands environments such as master control, a truck, or an edit suite.

IPR-10G2-HDMI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for display on HDMI devices.  Providing two SFP+ cases for protection with “hitless switching”. Its rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display and device scenarios, from studios to field.

The IPR-10G-HDMI is a SMPTE ST 2110 to HDMI Mini-Converter suited for point-of-use applications including source monitoring and an HDMI feed to compatible devices.

The AJA IPR-10G-HDMI receives SMPTE ST 2110 IP video and audio, then formats the data for output on a full size HDMI 1.4b interface.

With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router or edit bay via IP and provide HDMI monitoring at the destination.

The audio associated with the video stream is extracted, synchronised, and then embedded into the HDMI interface as well as output on an analog RCA interface.

IPR-10G2-HDMI provides HDMI output from SMPTE ST 2110 video and audio over IP streams. Combine your IPR-10G2-HDMI units with AJA KONA IP for HD  (I/O card for use in desktop workstations) or receive UltraHD or HD from servers and more to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.

IPR-10G2-HDMI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, and firmware updates.

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

All AJA Mini-Converters are covered by a five year warranty and AJA’s advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
