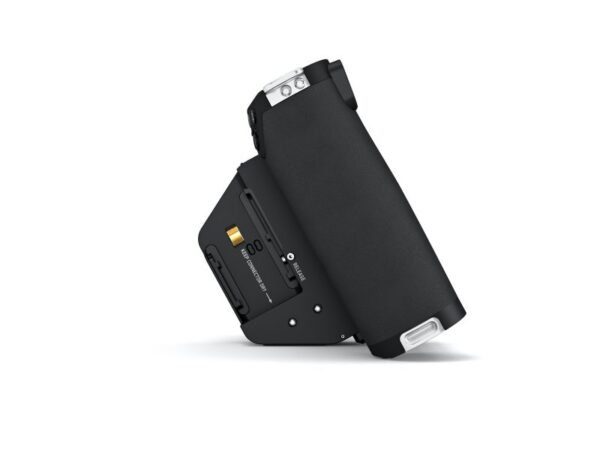

ARRI Hi-5 Hand Unit Body Kit

£6,100.00 £7,320.00 Inc. Vat

Usually Delivered in 1-2 Weeks

Compare
Warranty: 1-Year Manufacturer Warranty
SKU: AI-KK.0039973 Categories: , , , , , Tags: ,

ARRI Hi-5 Hand Unit Body Kit KK.0039973 is the most sophisticated hand unit on the market, providing reliable wireless camera and multi-axis lens control. Weatherproof and solidly built, it features an exceptional ratio link range and unique, swappable radio modules for different territories and shooting challenges.

The new Hi-5 is central to the fifth-generation ecosystem of ARRI’s Electronic Control System (ECS).

Hi-Performance

  • Multi-axis lens control
  • Powerful radio signal cuts through interference
  • Up to 100 virtual radio channels
  • Split-second reconnection time
  • High-contrast display

High Versatility

  • Swappable radio modules for different regions/situations
  • Three user buttons for personalised functions
  • Full camera control (including third-party cameras)
  • Focus knob adjustable to operator preferences.
  • Focusbug Cine RT support

Hi-speed

  • fast and efficient new ECS system
  • Smart pre-marked focus rings detected automatically
  • Integrated NATO rail and multiple mounting points.
  • ECS Sync App: easy software updates and file manaement
  • Customisable touchscreen user interface

Hi-reliability

  • Best rain, temperature, and dust protection on the market
  • Exceptionally strong materials and build quality
  • Intelligent, high-capacity batteries
  • A tool that can be trusted for heavy use over many years,

Hi-tech

  • Hot-swap battery technology
  • Modular hardware and upgradable software
  • Non-visual alerts via vibrating haptic feedback
  • Adaptable to future standards and networks.

Comes With

1x K2.0039973 Hand Unit Body
1x K2.0039838 Bluetooth Dongle
1x K2.0037463 Blank Smart Focus Ring

For more information from ARRI click here



Additional information

BRAND

ARRI

MPN

AI-KK.0039973

Specification

Focus Knob:
Iris Slider:
Force Pad:
Display:
Weight:
Interfaces:
Power Supply:
Supply Voltage:
Power Consumption:
Operating Temperature:
LED backlit rotary knob with adjustable friction, 3.0” diameter, 16 bit native encoder resolution
Fully sealed slider mechanism, 14 bit native encoder resolution
Force sensitive joystick, x/y-direction
Transflective TFT-LCD display (readable in bright sunlight) 3.0″ diagonal
830 g / 29.30 oz (incl. Bluetooth dongle and Smart Focus Ring Blank)
1x LBUS (4pin Lemo)

1x SERIAL (4pin Lemo)

1x Radio Adapter Interface (10pin IRISO)

1x USB-A

1x USB-C

ARRI LBP-3500 battery pack

LBP Battery Charger

NP-F550 battery (Sony) or compatible batteries

Power via USB-C port through an external power supply

Power via LBUS interface

LBUS interface: 10.5 V – 34.0 V

Battery: 7.4 V

Without radio module: 222 mA @ 7.4 V
With RF-EMIP radio module: typ. 270 mA @ 7.4 VWith RF-2400 radio module: typ. 370 mA @ 7.4VWith RF-900 radio module @ 100 mW: typ. 330 mA @ 7.4 VWith RF-900 radio module @ 1 W: typ. 480 mA @ 7.4 V
-20°C to +50°C (-4°F to +122°F)
