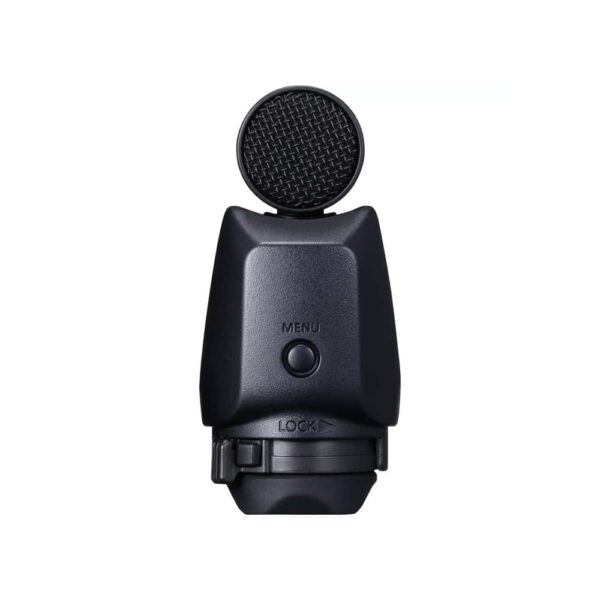

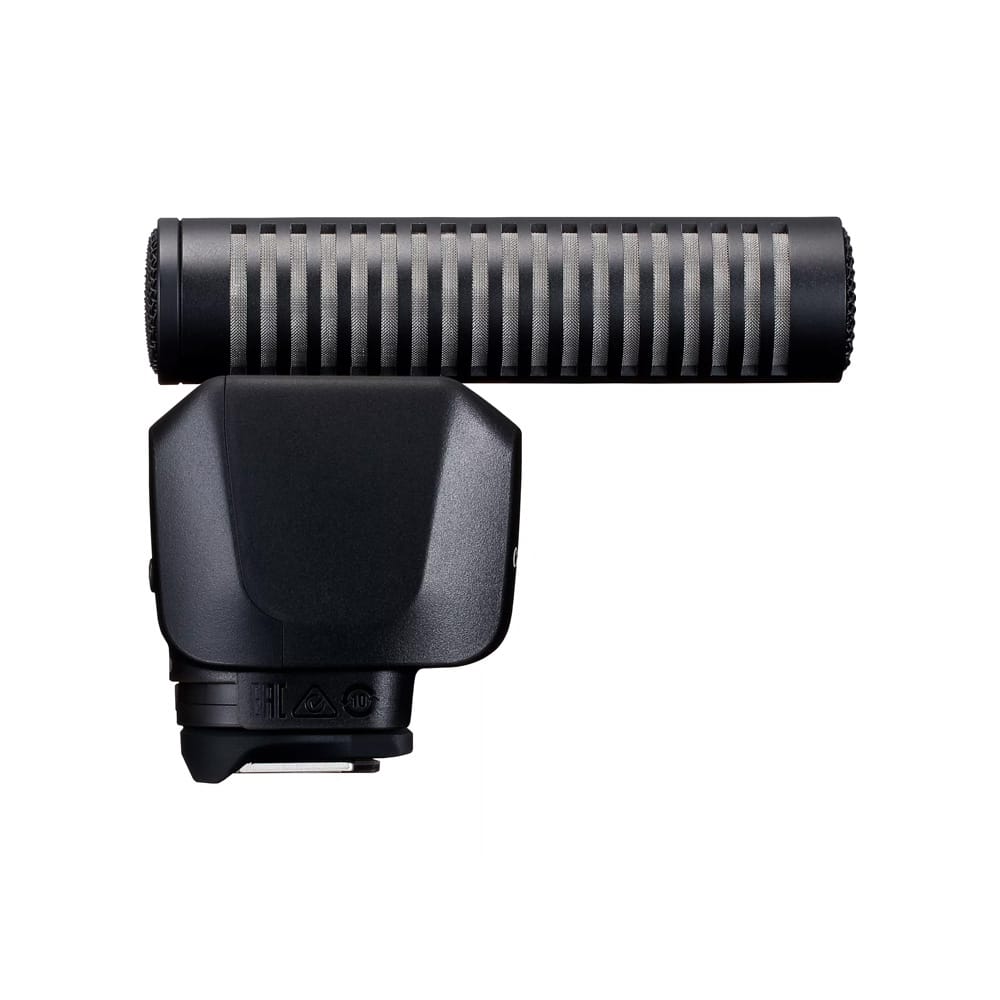

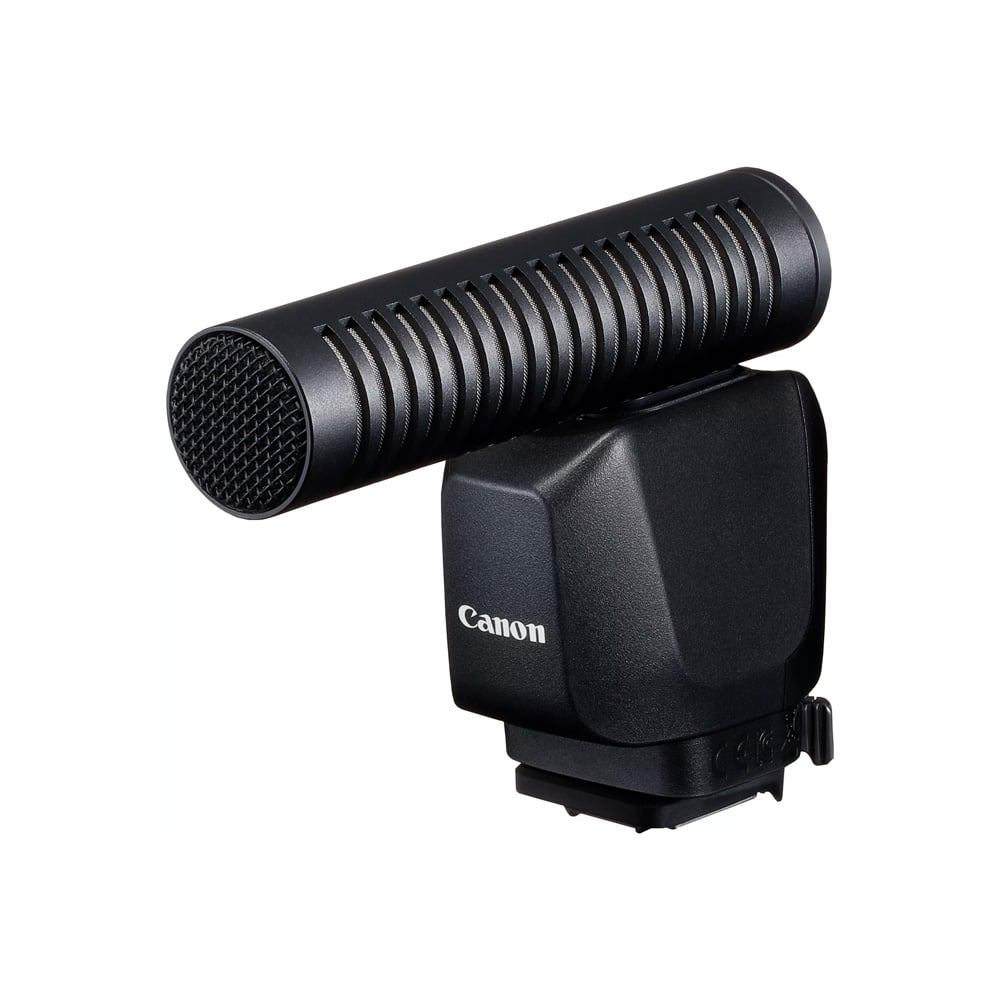

Canon DM-E1D Directional Stereo Mic

Canon DM-E1D Directional Stereo Mic (5138C001). Outputting a digital signal for cleaner audio, the Multi-function shoe directional stereo microphone DM-E1D microphone slides onto your camera’s Multi- function shoe with no cables for a reliable, secure connection–leaving you free to focus on the moment.

High quality digital audio

Using digital signal processing for a cleaner, crisper audio signal helps deliver a richer experience – with a soundscape that puts the audience at the heart of the performance.

Cableless connection

Sliding and locking easily onto the Multi-function shoe of compatible cameras, the Directional stereo microphone DM-E1D is entirely cableless for a reliable and secure connection, with low noise.

Power direct from the camera

Attach Directional stereo microphone DM-E1D with confidence and never worry about how much power is left in the microphone’s battery – as it is powered directly from the camera.

Directional for precise control

Three modes of directional pick-up give you the flexibility to capture audio on your terms. Switch between shotgun (monaural), 90° or 120° stereo for different sized spaces.

Additional information




Microphone Characteristics

  • Microphone Type
    Back-electret-condenser type stereo microphone
  • Directional Sound Pick-Up
    Shotgun (Monaural)
    90° and 120° (Stereo)
  • Sensitivity
    SHOTGUN: -16dB (1kHz, 0db=1V/Pa)
    90°: -18.7dB (1kHz, 0db=1V/Pa)
    120°: -20dB (1kHz, 0db=1V/Pa)
  • Frequency
    SHOTGUN: 100 Hz – 10000 kHz
    90°: 100 Hz – 10000 kHz
    120°: 100 Hz – 10000 kHz
  • S/N Ratio
    62 dB or higher (1 kHz, 1 Pa)

Audio Output

  • Analogue / Digital
  • Bits
  • Sampling Frequency
    48 kHz
  • Attenuator
  • Wind Filter


  • Output Terminal
    Multi-Function foot
  • Mounting Shoe
    Multi-Function shoe only

Power Source

  • Battery
    Powered from the camera
  • Power Consumption
    0.11 W


  • Buttons
    MENU button
  • Water/Dust Resistance
    Between the Multi-Function foot and camera shoe only
    (Dust and water seal engaged with a lever operation
    and locking mechanism on the foot)


  • Included
    Wind screen, (Shoe) cover

Physical Specifications

  • Dimensions (WxHxD)
    41.3 x 87.4 x 108.6mm
  • Weight (Body Only)
    Approx. 136g
  • Working Temperature
    0 to 40 °C
  • Working Humidity
    85% or less
