EIZO EV2456-WT FlexScan

£420.00 £350.00

Order Now - Usually Delivered in 2-4 weeks

  • 24.1” LCD monitor with 16:10 aspect ratio and IPS
    technology for outstanding image quality
  • Bezel only 1 mm on both sides and at the top: extremely
    compact and elegant design
  • Contrast 1000:1, brightness 350 cd/m², 178° viewing
    angle
    ???? Flicker-free image reproduction thanks to hybrid
    brightness control
  •  Auto EcoView, EcoView Index, and EcoView Optimizer
    For maximum power savings and superb ergonomics
  • Integrated speakers and headphone jack
  •  USB 3.0 hub with one upstream and two downstream
    ports
  • DisplayPort, HDMI, DVI-D, and D-Sub inputs for
    digital and analogue connection
SKU: EIZO-EV2456-WT Categories: ,

EIZO EV2456-WT FlexScan

EIZO EV2456-WT FlexScan (EV2456-WT). The EV2456 is very compact, thanks to its extremely narrow bezel. The monitor is particularly impressive when used for multi-display viewing.

The EIZO FlexScan EV2456 meets the most demanding requirements of a modern computer workstation. Its image quality and ergonomic features are particularly impressive. With a resolution of 1.920 x 1.200 pixels, an IPS LCD panel with LED backlighting, and an anti-glare surface, this display excels at detailed, crystal-clear image reproduction.

Maximum image quality thanks to the IPS panel

The monitor is capable of all three key elements of excellent image quality: excellent resolution of 1920 x 1200 pixels, maximum contrast of 1000:1, and stable brightness of up to 350 cd/m². That means you will experience razor-sharp text contours, brilliant graphics, and clear images. Thanks to the high-quality IPS panels with LED backlight, contrasts and colours remain stable from every viewing angle.

Precise colour control

An image can only be perfect if the colours are, too. This is why EIZO monitors have a 10-bit look-up table at a minimum, which allows the colour information to be assigned much more precisely than with conventional 8-bit LUTs. The finest colour gradations ensure that gradients are always perfectly displayed, while also offering customised adjustment options. For example, you can adjust the white balance from 4000 K to 10000 K in 500-K intervals.

Without overdrive: streaking and time delay
Overdrive to quickly change images

Fast, faster, overdrive. The overdrive function accelerates switching time so that the grey-grey change takes only 5 ms on average. You can watch films and rapidly changing images without annoying afterglow.

Ergonomics

FlexScan monitors ensure computer workstations are more ergonomic. In addition to alleviating eye and back strain, the monitors also meet the user’s unique requirements. This is because we don’t believe that you should have to adjust to your workstation – your workstation should adapt to your needs.

Save electricity and your eyes with Auto EcoView

At day, at night, bright, dark: No matter when and how you work, the Auto EcoView function continuously measures changes of the ambient light and optimises the monitor with ideal brightness values automatically by using a sensor. The benefits: Annoying glare is reduced, your eyes will not get tired as quickly. A special two-point control takes into account the brightest and darkest environment over the course of the day with the respectively desired screen brightness. Another advantage: Thanks to the automatic brightness adjustment, you will save up to 50% of your electricity costs in comparison to a monitor that is permanently operated at maximum brightness.

Of course, you can also continue to configure the monitor manually. EcoView Index is used for orientation on how environmentally friendly and economical your settings are.

Flicker free: for the sake of the eyes

To help protect your eyes, EIZO has developed a hybrid technology to control the backlight. This combines the benefits of the otherwise standard PWM (pulse width modulation) and DC (direct current) control. The PWM control uses much higher frequencies than standard PWM methods. The result: a flicker-free viewing experience while maintaining picture quality and colour stability. In addition, compared to pure DC control, you can adjust the brightness to less than 1% of the maximum value in darkly lit rooms. The benefit: Your screen remains free from glare even under these conditions.

The flicker-free and low blue light content of the EIZO FlexScan monitors is certified by TÜV Rheinland.

Anti-glare coating: more image, less reflection

The EV2456 offers a perfect, non-glare surface. By minimising glare by diffusing the reflected light, the EV2456 effectively protects your eyes from straining. This keeps your eyes from getting as tired and allows you to sit comfortably in front of the monitor, without having to sit in a forced position to prevent glare.

Flexible stand

Ergonomic and stable: the adjustable stand has ergonomics in focus. You can turn, swivel, and tilt the monitor in the way that is most comfortable for your back, neck and sitting posture. It can be continuously adjusted in height and lowered almost to the table or the base of the stand. This allows you to position the top row of the picture ergonomically below eye level.

Design

FlexScan office monitors are an attractive addition to any office. Their sleek, compact design is elegant and the ideal size. The virtually frameless models are the perfect choice for multi-screen solutions and also look great as a stand-alone monitor, all while offering maximum usability

Elegant design

The monitor’s appearance can be the key to creating a pleasant working atmosphere. Whether you are at home or in the office, the monitor’s virtually frameless design and ergonomic functionality allows it to fit naturally into your workplace environment. The housing is available in both an elegant black and in white, with matching white cables.

Software and ease of use

Impressive features mean greater comfort. Our intelligent software solutions and intuitive controls enable you to easily manage your settings as well as operate and deploy the display as a single-screen or multi-monitor solution at work each day.

Preset colour modes: optimised display at the touch of a button

Pre-set colour modes optimise the viewing of images, texts or films. Because it makes a difference whether you are watching a film, editing a picture, surfing the net, or writing texts. At the touch of a button, you set the respective pre-set for brightness, gamma correction and colour temperature. For example, the Paper mode simulates the pleasant contrast of printed paper, which is easy on the eyes when reading and prevents fatigue.

Operation made easy thanks to the Button Guide

The Button Guide provides all functions at a glance. Touching the button is enough and the screen will show all functions and the corresponding control panel.

Screen InStyle

In addition to the on-screen menu, you can conveniently control the EV2456 by using the Screen InStyle software on a Windows PC. The configuration options include colour reproduction, energy saving options, and ergonomic functions. In multi-screen systems, the settings can be applied synchronously to all connected screens with Screen InStyle. #

System administrators can centrally manage and control monitors connected in the network with Screen InStyle installed using the Screen InStyle Server application. This optimises power consumption and simplifies asset management of the monitors.

Monitor Configurator for cross-network settings

Reduced workload for network administrators: The software allows you to configure multiple monitors uniformly in a single step – via a USB connection. This saves you time and ensures you have the same settings on all screens. The configuration can be saved as an XML file and transferred to clients.

Variety of ports

More flexibility thanks to a variety of connections. Whether you are talking about a docking functionality, a multi-screen solution or connecting an external device, we provide a wide range of ports that allow you to easily integrate your EIZO office monitors into a broad range of office environments and workflows.

One monitor, many ports

It doesn’t get easier than this: You can connect most of your devices, such as PC, laptop or cameras directly to the monitor because the monitor hasa number of different ports. That makes your daily work easier.

Sustainability

EIZO considers longevity, sustainability and environmental friendliness to be main components of product quality. That’s why EIZO’s EcoView monitors feature intelligent energy saving features, are produced in accordance with international environmental regulations and reduce resource consumption thanks to the long service life they offer.

Save up to 30% of energy with the EcoView Optimizer

Save electricity without compromising quality: The EcoView Optimizer reduces the background lighting fully automatically for dark images. This reduces electricity consumption by up to 30%. At the same time, the signal is amplified and the colour tone values adjusted. The result: You will enjoy the image quality you are used to but consume less power.

Zero-watt consumption thanks to the power switch

The monitors have an integrated mechanical power switch, which is extremely practical and energy-saving: If you switch off the monitor using the power switch, the device will stop consuming any power at all. Moreover, it consumes a maximum of 0.5 watt in standby mode.

LED backlight: Economical in consumption, free from mercury

The monitors with an LED backlight help save the environment throughout their entire service life – from manufacturing through operation to disposal. For on the one hand they are characterized by particularly low electricity consumption. The typical consumption is just 11 Watt. On the other hand, they are free from mercury – a substance that is harmful to both humans and the environment and is very difficult to dispose of.

Environmentally and socially conscious production

EIZO uses the EV2456 to showcase how image and product quality go hand in hand with responsible planning, material procurement and production. This intrinsic value enables you to make a safe investment in a modern and reliable monitor.

Socially responsible production

The EV2456 is produced in a socially responsible way. It is free of child labour and forced labour. Suppliers along the supply chain have been carefully selected and they have also committed themselves to produce in a socially responsible way. This applies in particular to conflict minerals. We present a detailed report about our social responsibility annually and voluntarily.

Environmentally and climate friendly

Each EV2456 is manufactured in our own factory, which implements an environmental management system in accordance with ISO 14001. This includes measures to reduce waste, wastewater and emissions, resource and energy consumption, as well as to encourage environmentally conscious behaviour among employees. We publicly report on these measures on an annual basis.

Additional information

BRAND

EIZO

SCREEN SIZE

Specification

Areas of application Office
Product line FlexScan
EAN 4995047049739
Variants EV2456-BK (Colour: Black)
Screen size [in inches] 24.1
Screen size [in cm] 61.1
Format 16:10
Viewable image size (width x height) 518 x 324
Ideal and recommended resolution 1920 x 1200
Pixel pitch [mm] 0.27 x 0.27
Resolution supported 1920 x 1200, 1600 x 1200, 1680 x 1050, 1280 x 1024, 1024 x 768, 800 x 600, 720 x 400, 640 x 480
Panel technology IPS
Max. viewing angle horizontal 178

°

Max. viewing angle vertical 178

°

Number of colours or greyscale 16.7 million colours (DisplayPort, 8 Bit), 16.7 million colours (HDMI, 8 Bit), 16.7 million colours (DVI, 8 Bit), 16.7 million colours (D-Sub, 8 Bit)
Colour palette/look-up table 1.06 billion colour tones / 10 Bit
Max. colour space (typical) sRGB
Max. brightness (typical) [in cd/m²] 350
Max. dark room contrast (typical) 1000:1
Response time grey-grey alternation (typical) [in ms] 5
Max. refresh rate [in hertz] 60
Backlight LED
Preset colour/greyscale modes sRGB, Paper, Movie, DICOM, 2x additional memory spaces
DICOM tone curve
RadiCS application classes  VIII
Auto EcoView
EcoView Index
EcoView Optimizer
Overdrive
No flickering thanks to hybrid controls
Signal range amplifier (HDMI)
HDCP Decoder
Input signal identification
Built-in speakers
OSD language de, en, fr, es, it, se, ja, zh
Adjustment options Brightness, Contrast, Gamma, All EcoView functions, Colour saturation, Colour temperature/White point, Colour Mode, Colour tone, Signal input, Overdrive, Resolution, Scaling, OSD language, Scaling, Volume
Button Guide
Integrated power unit
Signal inputs DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), DVI-D (HDCP 1.4), D-sub
USB specification USB 3.1 Gen 1
USB upstream ports 1 x type B
USB downstream ports 2 x type A
Video signal DisplayPort, DVI (TMDS), HDMI (RGB, YUV), RGB Analogue
Sync formats Separate
Audio input 3.5 mm stereo jack, DisplayPort, HDMI
Audio output 3.5 mm stereo jack
Frequency Dsub: 31-81 kHz/55-76 Hz; Display Port: 31-76 kHz/59-61 Hz; DVI-D: 31-76 kHz/59-61 Hz; HDMI: 31-76 kHz/49-61 Hz
Power consumption (typical) [in watt] 11
Maximum Power Consumption [in watt] 44 ( at maximum brightness with all signal inputs and USB ports in use)
Power Save Mode [in watt] 0.5
Power consumption off [in watt] 0
Energy efficiency class D
Energy consumption/1000h [in kWh] 14
Power supply AC 100-120 V / 200-240 V, 50/60 Hz
Dimensions [mm] 531 x 351,4 – 510,1 x 190
Weight [in kilograms] 5.7
Dimensions without stand [mm] 531 x 341,9 x 45,5
Weight without stand [in kilograms] 3.7
Housing dimension details Dimension drawing (PDF)
Swivel 344

°

Incline forward/backward 5 ° / 35 °
Pivot  90° (right and left)
Height adjustment range [mm] 158.6
Hole spacing VESA standard 100 x 100 mm
Certification CE, CB, TCO Certified Generation 9, EPA ENERGY STAR ®, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307)**, TÜV/Blue Low Light Content, TÜV/Flicker Free, EPEAT 2018 (US), cTÜVus, TÜV/S, EAC, PSE, FCC-B, CAN ICES-3 (B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE
Accompanying software and other accessories are available for download Screen InStyle
Additional supply Power cord, Signal cable DisplayPort – DisplayPort, USB 3.0 cable, Quick guide, Manual on CD, Cable protection
Accessories HH200PR-K (HDMI (High Definition Multimedia Interface) cable

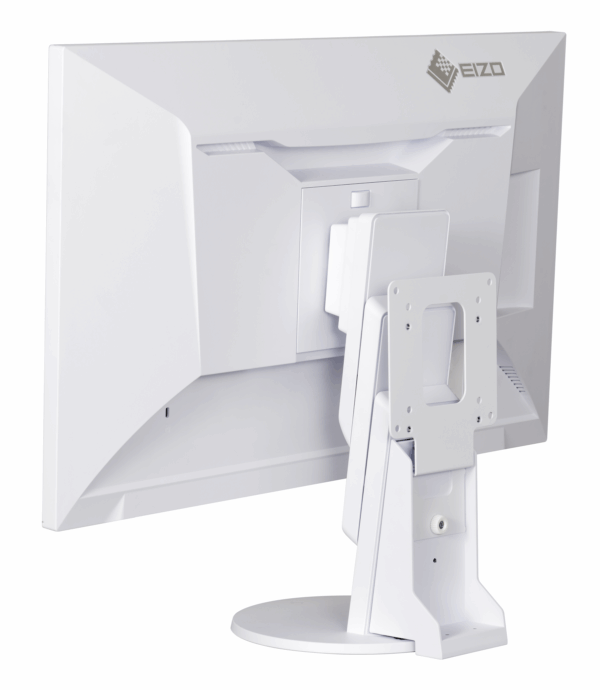

), PM200-K (DisplayPort cable to transfer digital video and audio signals.), PCSK-03-WT (Thin client mount for the stand EIZO FlexStand 4/FlexStand 5

), CP200-WT (USB-C to DisplayPort cable, 200 cm

)

Warranty and service 5 years warranty*
Terms *) Maximum of 30,000 hours of operation from the date of purchase.
**) Zero pixel error guarantee for completely lit sub-pixels (partial pixels ISO 9241-307). Valid: six months from the purchase date.

Features

  • Flісkеr-Frее Vіеwіng
  • Ѕіgnіfісаntlу Rеduсе Вluе Lіght
  • Аutо Вrіghtnеѕѕ Соntrоl
  • 1% – 100% Вrіghtnеѕѕ Rаngе
  • Ѕmооth Соlоr Grаdаtіоnѕ
  • Махіmum Еnеrgу Ѕаvіngѕ
  • Ѕіgnіfісаntlу Rеduсе Вluе Lіght
