Description

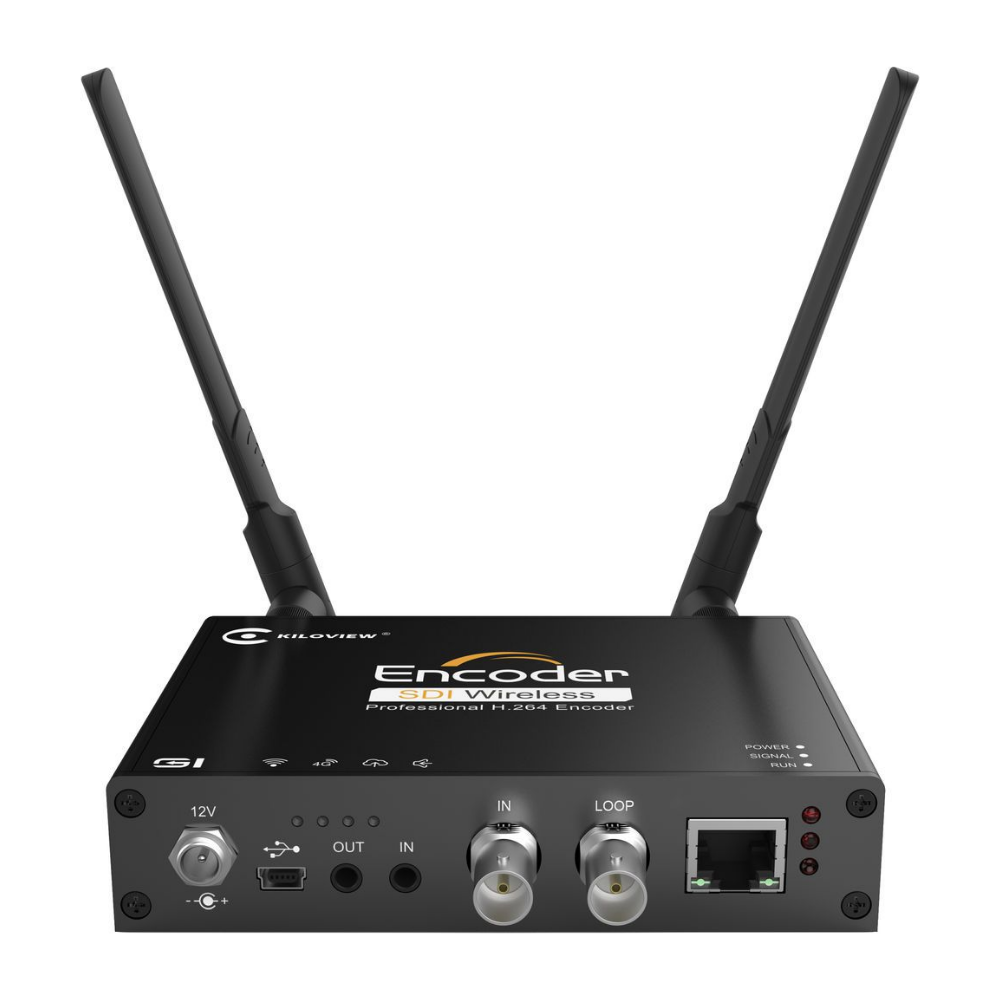

Kiloview HD/3G-SDI Wireless Video Encoder

Kiloview HD/3G-SDI Wireless Video Encoder (kilo-G1). G series wireless video encoder can encode the SDI (this version) or HDMI (G2 version) video and push to network broadcast platforms through WIFI/USB expand 4G/wired to realise video transmission, which makes live broadcasting available anytime and anywhere.

Kiloview G1 wireless video encoder can convert full 1080p SDI signal to IP signal without loss. This live encoder is applicable to many streaming platforms through 4g-lte, WIFI or wired Ethernet to realise HD video long-distance transmission/live broadcasting. It broadcasts IP output over protocols of RTSP/RTMP/SRT. Web-based management page for this video encoder make it very convenient and easy to use. Kiloview G1 encoder is widely applied in hotel TV system, school teaching, streaming live broadcast etc. G1 encoder has approved by CE, FCC, ISO, etc.

Built-in WIFI module or USB expand 4G, wireless video transmission/ live broadcast supported.

• Built-in dual-band (2.4G/5G Hz) WIFI module, and can support various channels to reduce interference from the same channel
• Support USB extended 4G transmission, and wired network video transmission/live broadcast
• Support satellite network transmission.High quality chip solution and modular software system to ensure high image quality and high stability

High quality chip, FPGA processing after video capture, H.264 algorithm optimisation, different streaming protocols, etc.,to ensure clear, smooth and high colour reproduction

• 8-layer PCB board design, dual CPU, modular software , low power consumption and low heat dissipation, voltage overload protection, automatic reconnection when power and network off, etc., ensure that the device is stable and can 7*24h continuous working available
• Adjustable bit rate from 64kbps～40Mbps
• Input resolution supports up to 1080P60, the encoding output resolution is adjustable.

Powerful streaming media service (support SRT), support dual stream output, supportimage and text overlay, video rotation/cropping (vertical live streaming) and videorecording, etc

• H.264 encoding, support SRT transmission point-to-point and Caller/Listener/Rendezvous three transmission modes
• Simultaneously support RTSP/RTMP/RTMPS/HLS/TS-UDP/Onvif etc. protocols and customise for NDI|HX/SIP
• Dual stream output, the main code rate up to 1080P60，and the sub-stream supports 720P60 video encoding；Both the main stream and the sub stream can open 8 stream services simultaneously
• Professional preprocessing such as video rotation, cropping, horizontal mirroring and colour adjustment before encoding
• User-defined text and picture overlay function, which can be superimposed to any position on the screen
• Micro SD/TF card for local recording, and support NAS network storage
• Support SDI/HDMI embedded audio encoding, and 3.5mm analog audio input encoding
• USB expansion PTZ control
• SDK/API provided for secondary development.
