Lynx Technik Yellobrik SPG 1708 HD/SD Sync Pulse Generator
£840.00 £700.00 Ex. VAT
Order Now - Usually delivered in 1-2 weeks
Description
Lynx Technik Yellobrik SPG 1708 HD/SD Sync Pulse Generator is a compact, versatile analog sync pulse generator with genlock providing Tri-/ Bi-Level video sync and audio signals. The module offers three Tri-Level sync outputs, three Bi-Level sync outputs, and a separate Audio Sync output, with 48kHz Word Clock or Digital Audio Sync Signal (DARS) capabilities.
The sync generator has an accuracy of 2ppm, is robust and temperature stabilized. The flexible genlock capability allows the module to genlock to any SD, HD, and 3G reference input, with full cross-lock functionality and timing lock, even across unmatched standards. Bi-Level and Tri-Level sync outputs and audio sync signals are all frequency locked to the reference, regardless of the selected sync standard for the outputs. Output signals are timing locked if they are in the same frame rate group as the reference. Additionally, a delay in units of output line and pixel can be applied when remote controlling the SPG 1708 via yelloGUI.
| 23.98Hz | 24Hz | 25Hz & 50Hz |
29.97Hz & 59.94Hz |
30Hz & 60Hz |
Available sync formats for Bi-Level Sync are NTSC, PAL, or PAL M/N. In addition it can output Color Bars, Black Burst, or just the Sync signal with selectable 7.5 IRE pedestal for NTSC standards with adjustable burst phase in 8 increments. The Tri-level sync outputs can be set to any of the available HD/3G standards.
User controls are located on the top side of the module, clearly labeled, and easily accessible. When remote controlling the device via USB, more options and settings are available with the yelloGUI.
- Supports all regular analog Tri- and Bi-Level Sync standards
- Simultaneous HD/Tri-Level and SD/Bi-Level sync outputs
- 3 x HD/Tri-Level and 3 x SD/Bi-Level sync outputs
- Genlock with cross lock to any sync standard
- “Color Bars”, “Black Burst” or “Sync Only” for SD
- NTSC, PAL or PAL M/N for Bi-Level sync outputs
- Burst phase adjustment for NTSC and PAL sync
- Audio Sync output 48kHz Word Clock or DARS
- yelloGUI compatible to access additional internal settings
View DatasheetDelivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
YOU MIGHT ALSO LIKE TO LOOK AT
More Products-

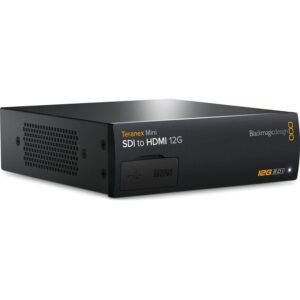

Blackmagic Design Teranex Mini – SDI to HDMI 12G
