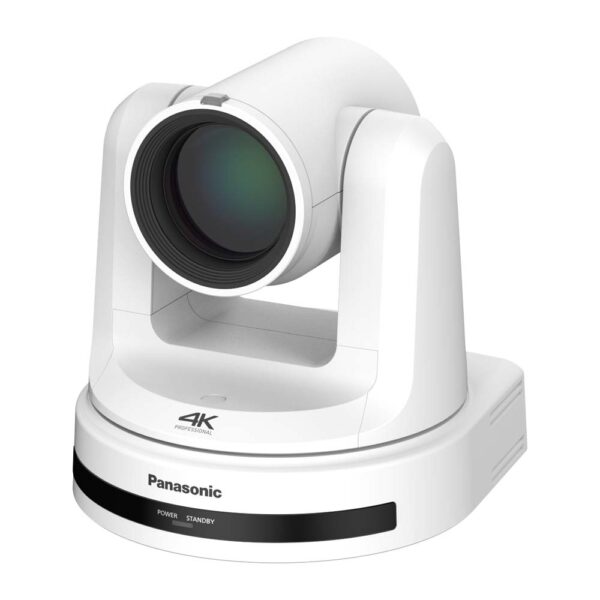

Panasonic AW-UE20 4K PTZ Camera – White

Pre-Order Now and We'll Deliver Once Available

Contact Us to Discuss Pricing

Compare
SKU: PANA-AW-UE20-W Categories: , , Tags: , ,

Entry model suitable for use in small meeting rooms and small classrooms

PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes. The AW-UE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-UE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-UE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.

FEATURES



High-quality video streaming for more comfortable online communication

  • 4K resolution, wide angle and high-magnification zoom maintain “the ambience of hall” intact in streaming videos.
  • Auto Tracing Software accurately follows and captures the speaker.



Excellent system flexibility to achieve smart wiring and smooth operation

  • Easy installation/setup and compact system configuration.
  • Single PC or controller can manage and control multiple cameras.
  • Use as a USB camera.
  • Direct upload of videos to video livestreaming services.



Compact size and excellent functionality that do not disturb the existing video streaming environment

  • Compact design blends in with the surroundings. Light weight and small size for added installation flexibility.
  • Linkable with existing system.

Additional information

Brand

Panasonic

MPN

PANA-AW-UE20-W

Specification

Power Requirements DC12 V ± 10 % (10.8 V to 13.2 V) (Supplied AC adapter)
PoE+ IEEE802.3 at compliant
Current Consumption TBD
Ambient Operating Temperature 0 °C to 40 °C (32℉ to 104℉)
Ambient Operating Humidity 20 % to 90 % (no condensation)
Storage Temperature -20°C to 50°C (-4 °F to 122 °F)
Mass TBD
Dimensions (H x W x D) TBD
Finish AW-UE20W: WhiteAW-UE20K: Black
Controller Supported AW-RP150GJ, AW-RP60GJ, AW-RM50AG
Image Sensor 1/2.8-type MOS×1
Lens Electric 12 x optical zoom F1.6~F2.8 (f = 3.9 mm ~ 46.8 mm)
Zoom Optical zoom: 12 x
Angle of View Range Horizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to
3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele)
Minimum Illumination TBD
S/N TBD
Horizontal Resolution TBD
Output Format | HDMI | 4K 2160/30p, 2160/29.97p, 2160/25p
Output Format | HDMI | HD 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,
1080/30p,1080/29.97p,
1080/25p, 720/60p, 720/59.94p, 720/50p
Output Format | SDI | HD 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,1080/30p,
1080/29.97p,
1080/25p, 720/60p, 720/59.94p, 720/50p
Input DC 12 V IN
Video Output HDMI, 3G-SDI OUT
Input/Output Connector LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT
Installation Method Stand-alone (Desktop) or suspended (Hanging)*2
Panning Range ±170°
Tilting Range -30°~90° *3
Quietness NC40 or less
Supported operating systems and web browsers *4
Windows Windows 10
Windows® Internet Explorer® 11(32 bit / 64 bit)
Microsoft Edge
Google Chrome
Mac Mac OS 10.15
Mac OS 10.14
Mac OS 10.13
Mac OS 10.12
Safari
Google Chrome
Image Streaming Mode JPEG(MJPEG), H.264, H.265
Image Resolution 3840×2160, 1920×1080, 1280×720, 640×360
Note *1 The main unit may appear in the video depending on the pan/tilt position.
*2 To ensure safety, the unit must be secured using the mount bracket supplied.
*3 The main unit may appear in the video depending on the pan/tilt position.
*4 Supported OS indicated are for browsers current as of September 2021. See
“Service and Support / PASS” for the latest information on browser support.

Features

4K PTZ Camera

Compact size & wide angle

Simultaneous 3G-SDI, HDMI & USB output

High-Quality Video Streaming for More Comfortable Online Communication

Excellent system flexiblility to achieve smart wiring and smooth operation

What's Included

Panasonic AW-UE20 4K PTZ Camera – White
