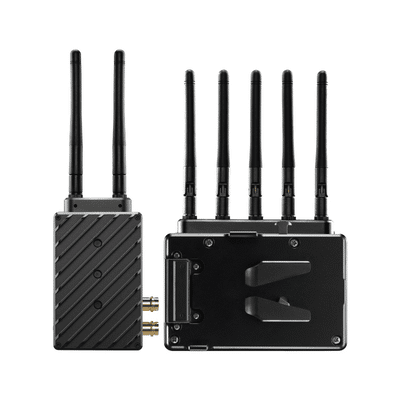

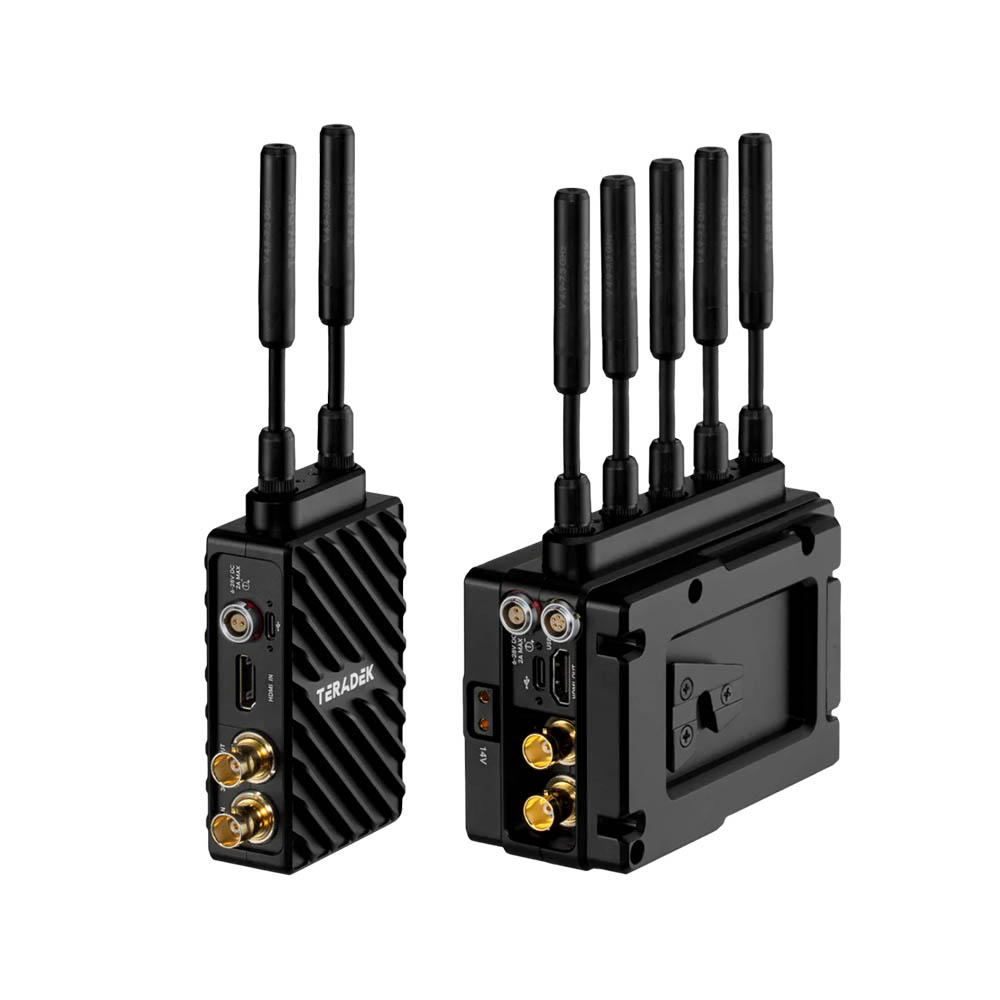

Teradek Bolt 6 LT 750 TX/RX Deluxe Set V-Mount
£2,838.00 £2,365.00 Ex. VAT
Only 1 left in stock
Description
Teradek Bolt 6 LT 750 TX/RX Deluxe Set V-Mount (10-2260-V) features new technology that doubles the frequency range of Bolt 4K’s zero-delay wireless video to the 6GHz U-NII 5 band. This means 12 new 40MHz wide channels and an upgraded long-range signal algorithm for the gamut of production environments.
Each Bolt 6 model offers an improved Longer Range algorithm, an SDI Eye Pattern Tool to check your SDI signal integrity, and more. Bolt 6 is fully cross-compatible with the entire Bolt 4K ecosystem, including the Bolt Manager App for iOS and Android. In the Bolt 6 LT model range, next generation 6GHz wireless solutions let you cut through cluttered airwaves with up to 4K resolution in a compact, lightweight form factor, plus full 5GHz cross-compatibility across all Bolt 4K Series devices.
With a 750 ft. range as the Bolt 4K LT, fully-capable of operating on the 12 U-NII 5 channels like the rest of the Bolt 6 line. This model is the 750 TX/RX Deluxe V-Mount from the BOLT 6 LT series.
Features
- Receive Wireless Video up to DCI 4K
- Zero-Delay wireless video (<0.001sec)
- 4K HDR with 10-bit 4:2:2
- 750 feet of range
- Transmit 1080p60with SDI
- V-Mount

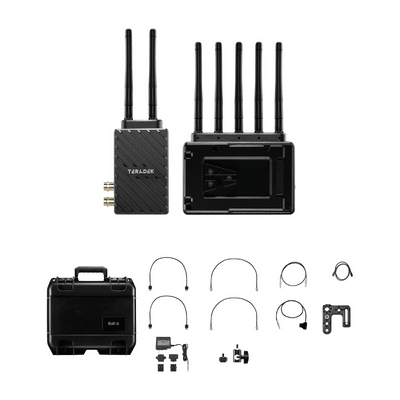

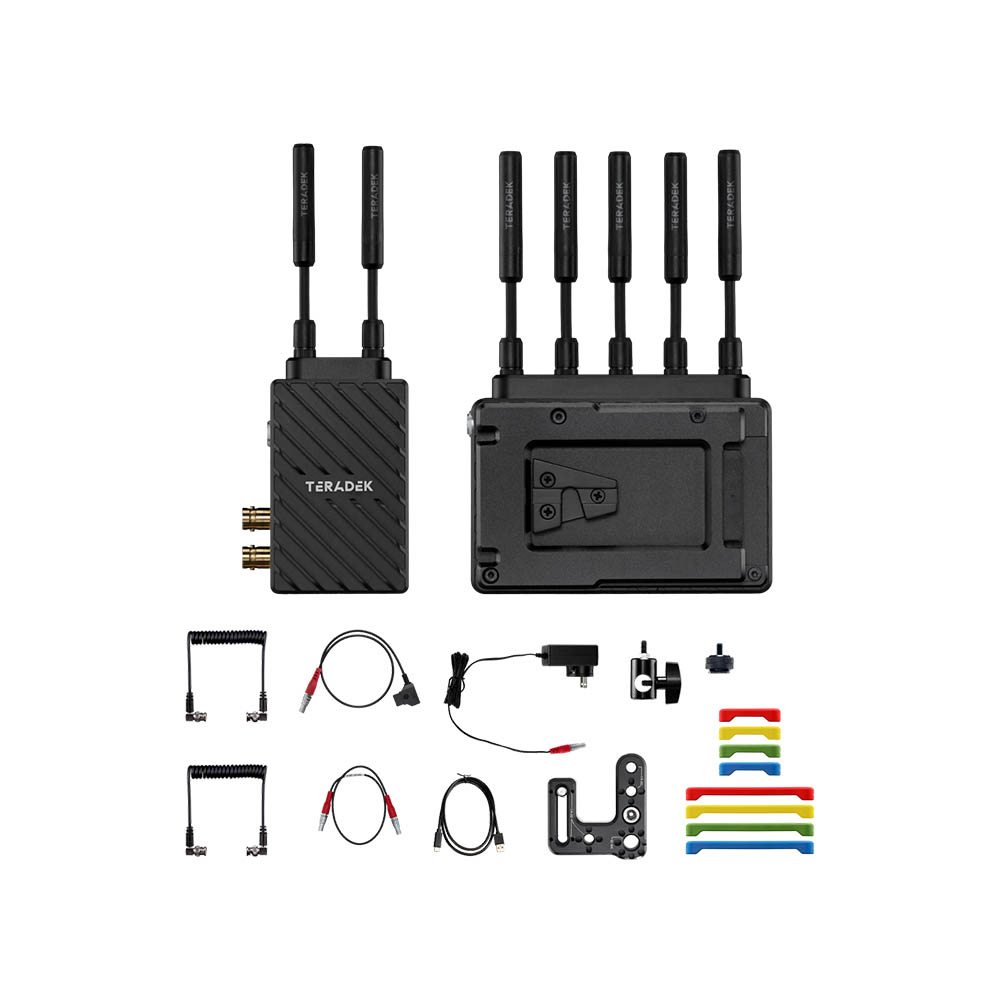

Comes With
- 1 x Bolt 6 LT 750 TX V-Mount
- 1 x Bolt 6 LT 750 RX V-Mount
- 2 x Bolt 4K LT RX Battery Cover
- 1 x Lightstand Adapter ¼-20in
- 1 x Hot Shoe Adaptor
- 2 x Screw Flat Head Phillips
- 2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
- 1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
- 1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
- 2 x SDI – BNC to BNC Cable, 10in
- 1 x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable
- 1 x Wooden Camera – Teradek Offset Mount for Bolt 4K LT TX
- 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
Additional information
| BRAND | TERADEK |
|---|---|
| MPN | 10-2260-V |
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| BOLT 6 LT 750 TX |
| Video Inputs | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) |
| 1 x HDMI 1.4b Type-A receptacle | |
| Video Outputs | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) |
| Sdi Ancillary Data Support | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit |
| Delay Tx To Rx | <0.001sec |
| Input Cross Conversion | Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout) |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 (HDMI only) |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080psf23.98/24/25/29.97/30 | |
| 1080i50/59.94/60 | |
| 720p50/59.94/60 | |
| 480p59.94 576p50 | |
| 480i(NTSC)/576i(PAL) | |
| Video Compression | Visually Lossless |
| Colour Correction | None |
| Audio Compression | 48kHz 24-bit PCM |
| Audio Input | Embedded SDI/HDMI Audio Input (2 Channel) |
| Dimensions | 60mm x 103mm x 33mm |
| Weight | 206g (7.3oz) |
| Construction | Milled Aluminium(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4"x20 and M3 holes |
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Mobile App | Bolt App |
| Desktop App | Bolt Manager application for OSX & Windows |
| Usb Interface Functionality | Upgrade via Micro-USB |
| Bluetooth | 2.4 GHz |

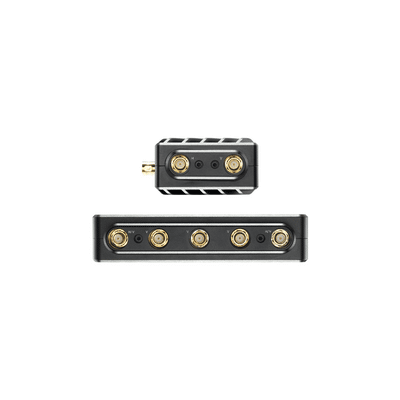

| Antennas | 2 External 2dBi antennas (included) |
| Wireless | Non-DFS Frequencies: |
| 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz | |
| DFS Frequencies: | |
| 5.270 ~ 5.670 GHz | |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 23 dbm EIRP |
| Range | Up to 750 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones |
| Can operate up to 6 sets in same location | |
| Interoperability | Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) |
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Sony/Canon dual battery plate |
| Nominal Power Consumption | 9 Watts |
| Operating Temperature | 0-40℃ |
| Ghz Support | Yes |
| Compatible With Bolt4k | Yes |
| Available Ranges | 750 ft / 1500 ft / 5000+ ft |
| Maximum Sdi Resolution | 1920x1080p60 |
| Maximum Hdmi Resolution | 3840x2160p30 |
| Smallhd Wireless Camera Control Port | Requires Adaptor |
| Transmitter Weight | 7.3 oz / 206 g |
| Receiver Connectivity | 6/Unlimited* |
| Zerodelay | Yes |
BOLT 6 LT 750 RX
| Video Outputs | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) |
| 1 x HDMI 1.4b Type-A receptacle | |
| Sdi Ancillary Data Support | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. |
| Colour Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit |
| Output Video Scaling | No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 (HDMI only) |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080psf23.98/24/25/29.97/30 | |
| 1080i50/59.94/60 | |
| 720p50/59.94/60 | |
| 480p59.94 576p50 | |
| 480i(NTSC)/576i(PAL) | |
| Video Compression | Visually Lossless |
| Test Pattern Generator Support | Yes |
| Spectrum Analyzer | Yes |
| Colour Correction | 17x17x17 3D LUT (supports 10-bit colour) |
| Audio Compression | 48kHz 24-bit PCM |
| Audio Output | Embedded SDI/HDMI Audio Output (2 Channel) |
| Dimensions | 122mm x 94mm x 27mm |
| Weight | 292g (10.3oz) |
| Construction | Milled Aluminium(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4"x20 and 3/8"x16 holes |
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Mobile App | Bolt App |
| Desktop App | Bolt Manager application for OSX & Windows |
| Usb Interface Functionality | Upgrade via Micro-USB |
| Bluetooth | 2.4 GHz |
| Antennas | 5 External 2 dBi antennas (included) |
| Wireless | Non-DFS Frequencies: |
| 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz | |
| DFS Frequencies: | |
| 5.270 ~ 5.670 GHz | |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 21 dbm EIRP |
| Range | Up to 750 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones |
| Can operate up to 6 sets in same location | |
| Interoperability | Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) |
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Nominal Power Consumption | 11 Watts |
| Operating Temperature | 0-40℃ |
